Overview
Description

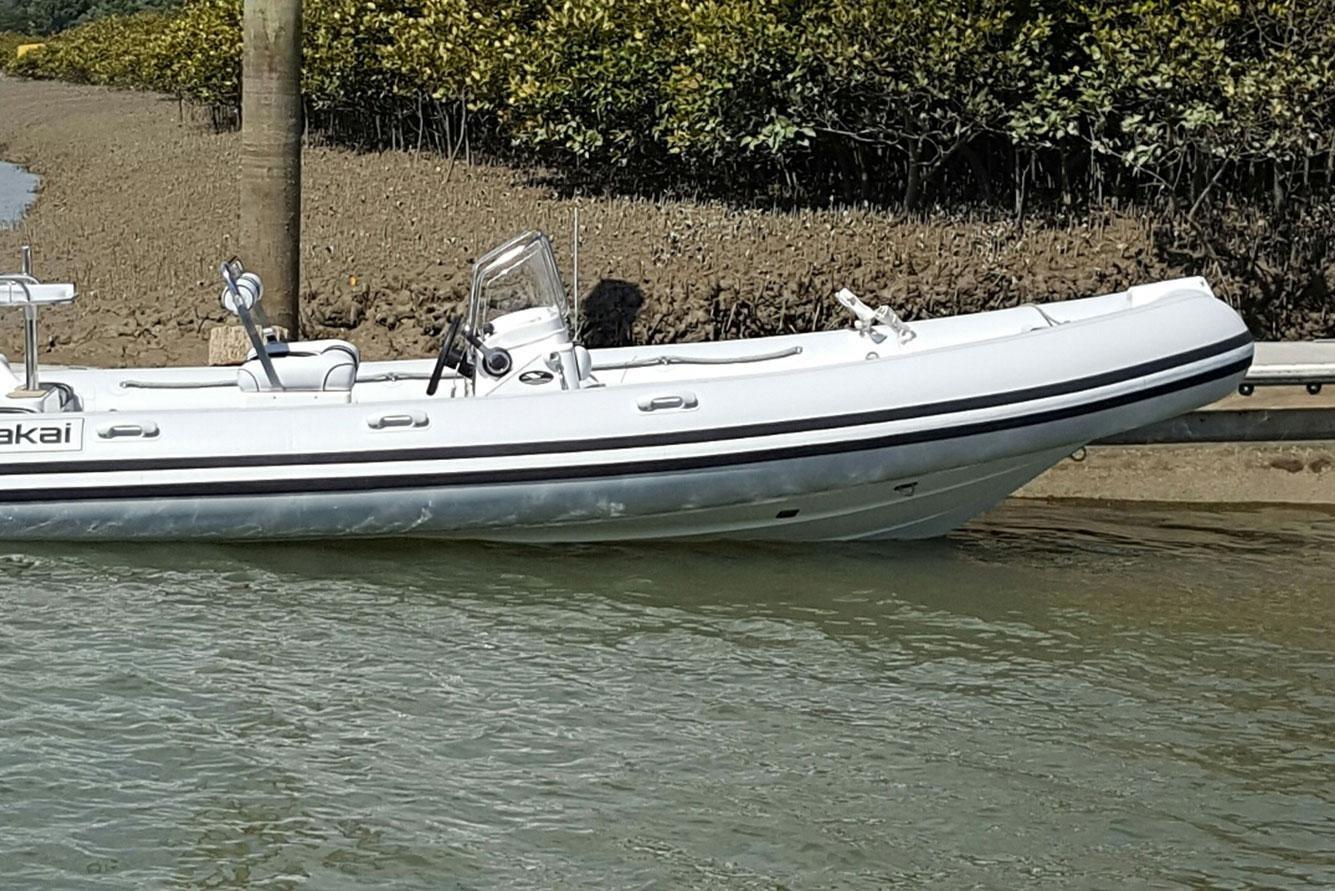

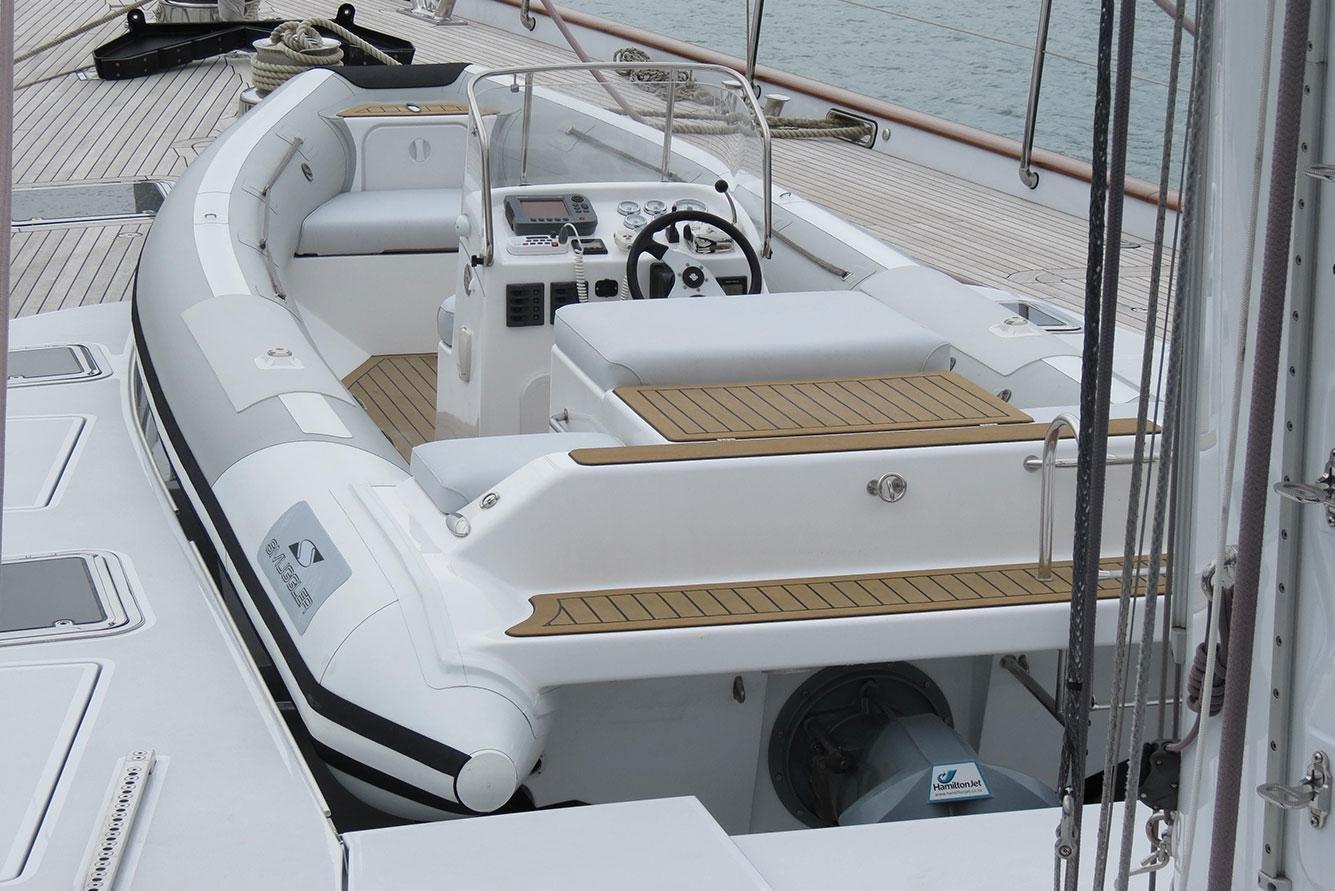

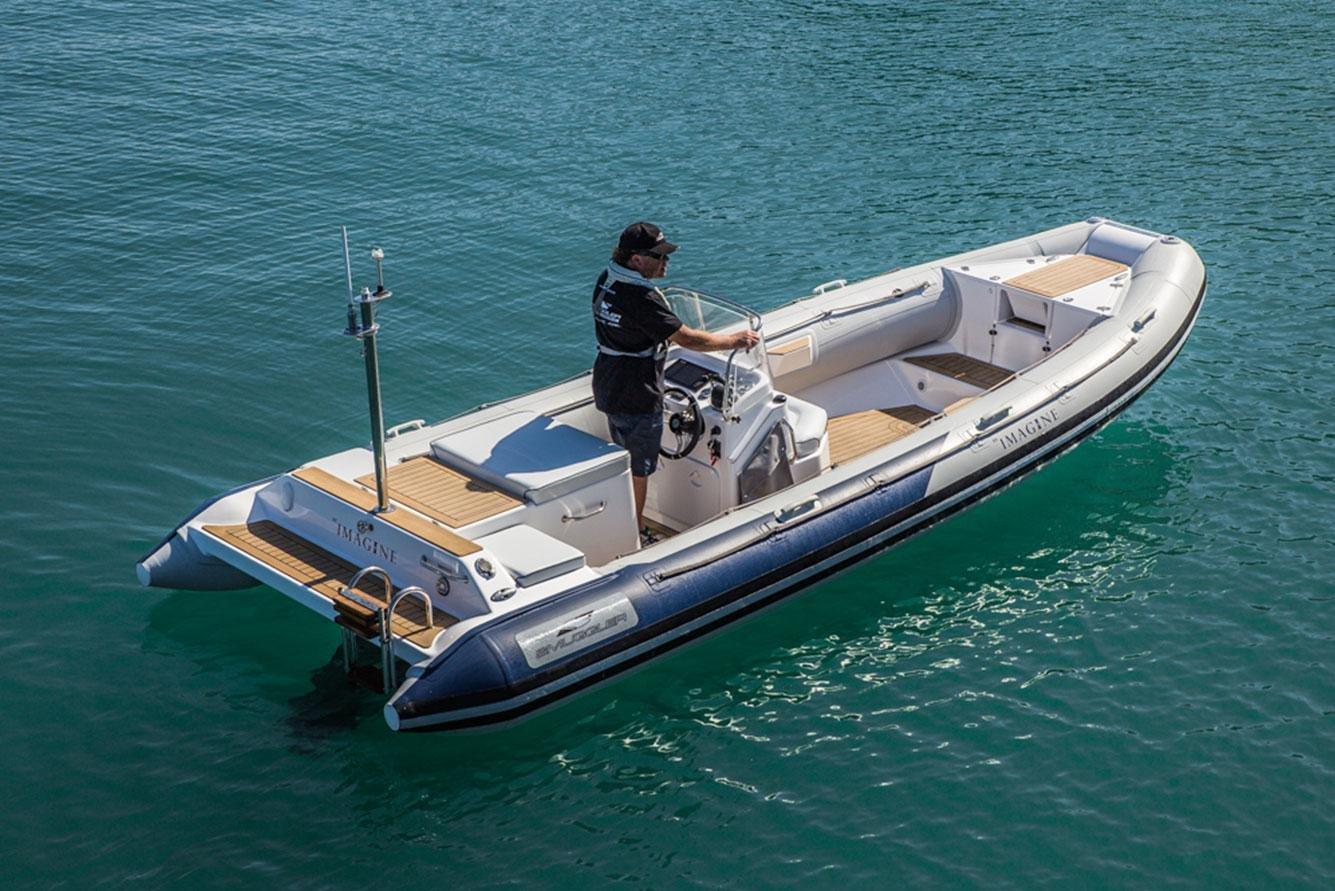

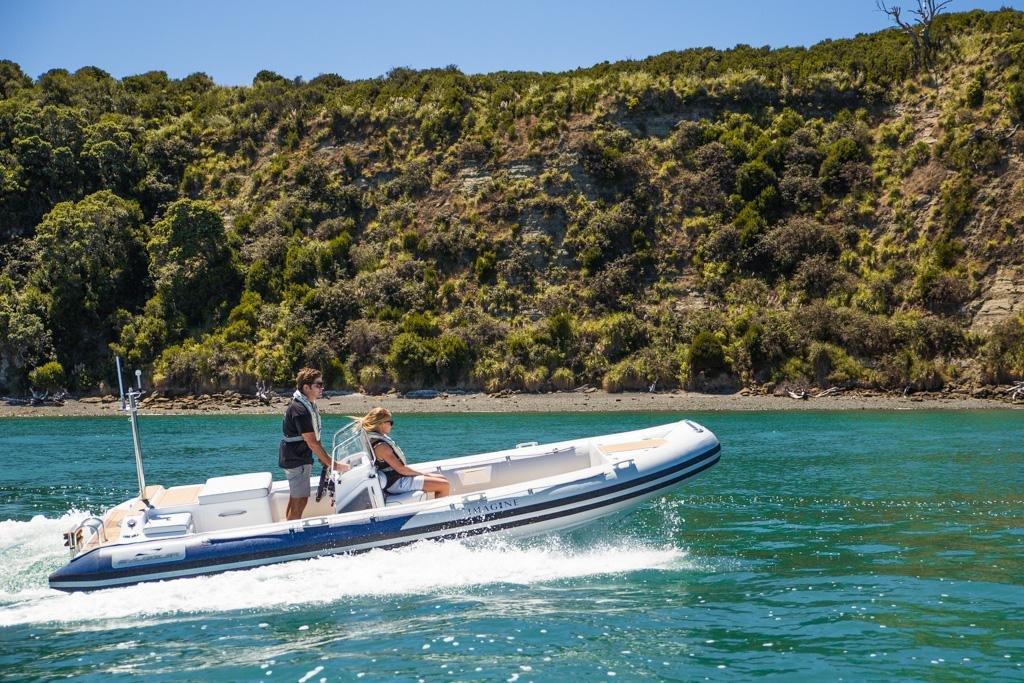

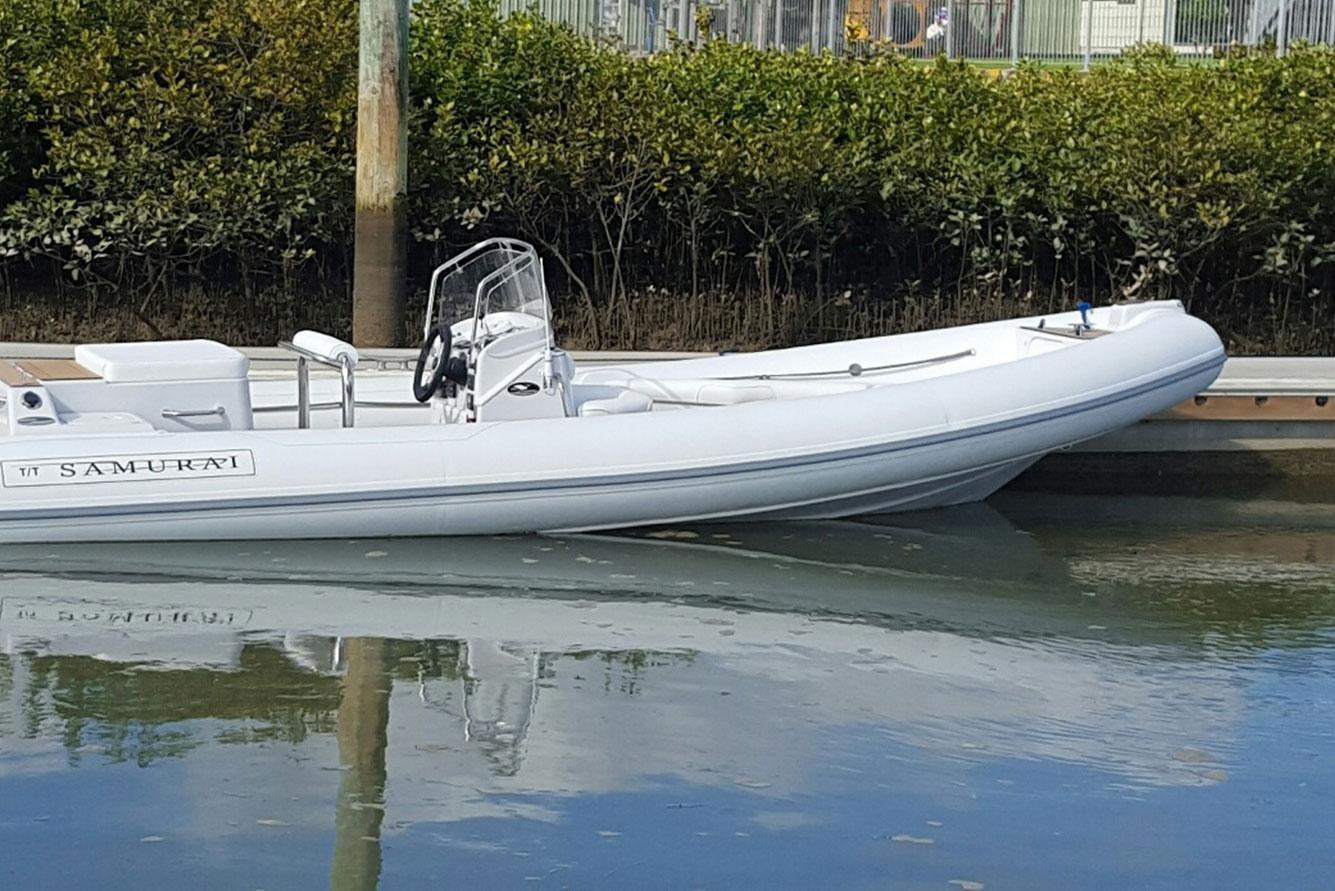

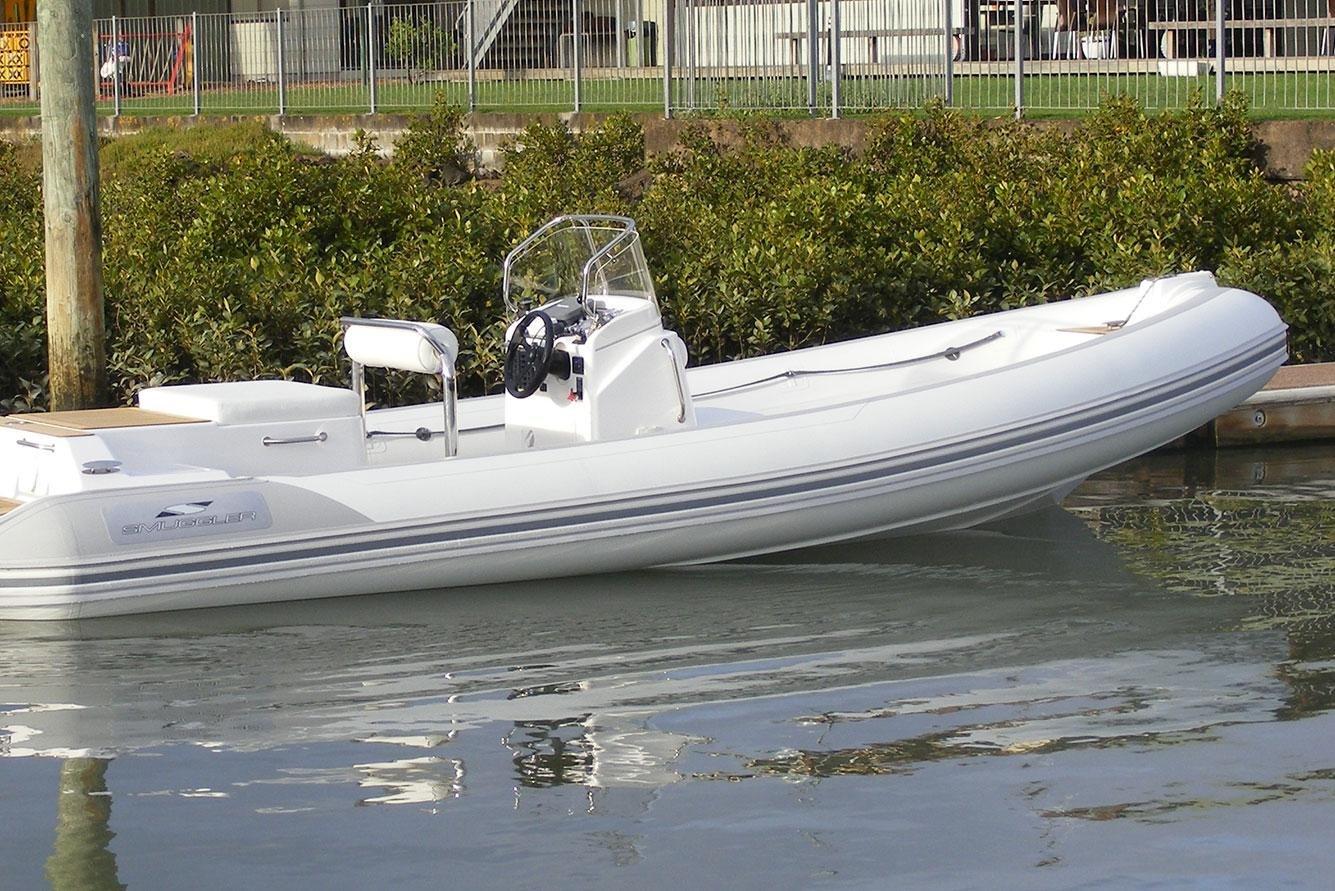

The Smuggler Strata 630 Inboard / Outboard Tender is designed with the discerning Superyacht owner in mind. These machines are made to perform. They have a 23 degree deep vee hull so the ride is comfortable and safe, no matter what the conditions, designed to keep your guests dry. All finishing and fittings are top quality, with the added bonus of a custom finish to match your colour scheme. Choose from folding bow steps, forward guest canopy, inboard, outboard, stern or jet drive, the 630 RIB Tender will exceed your expectations.
Quality no compromise.
Main Features
- HP Range: 115-220hp
- Length: 6.2 metres
- Fuel capacity: 135 litres
- Max persons: 9
Specifications
Structural:
- Fibreglass hull and liner

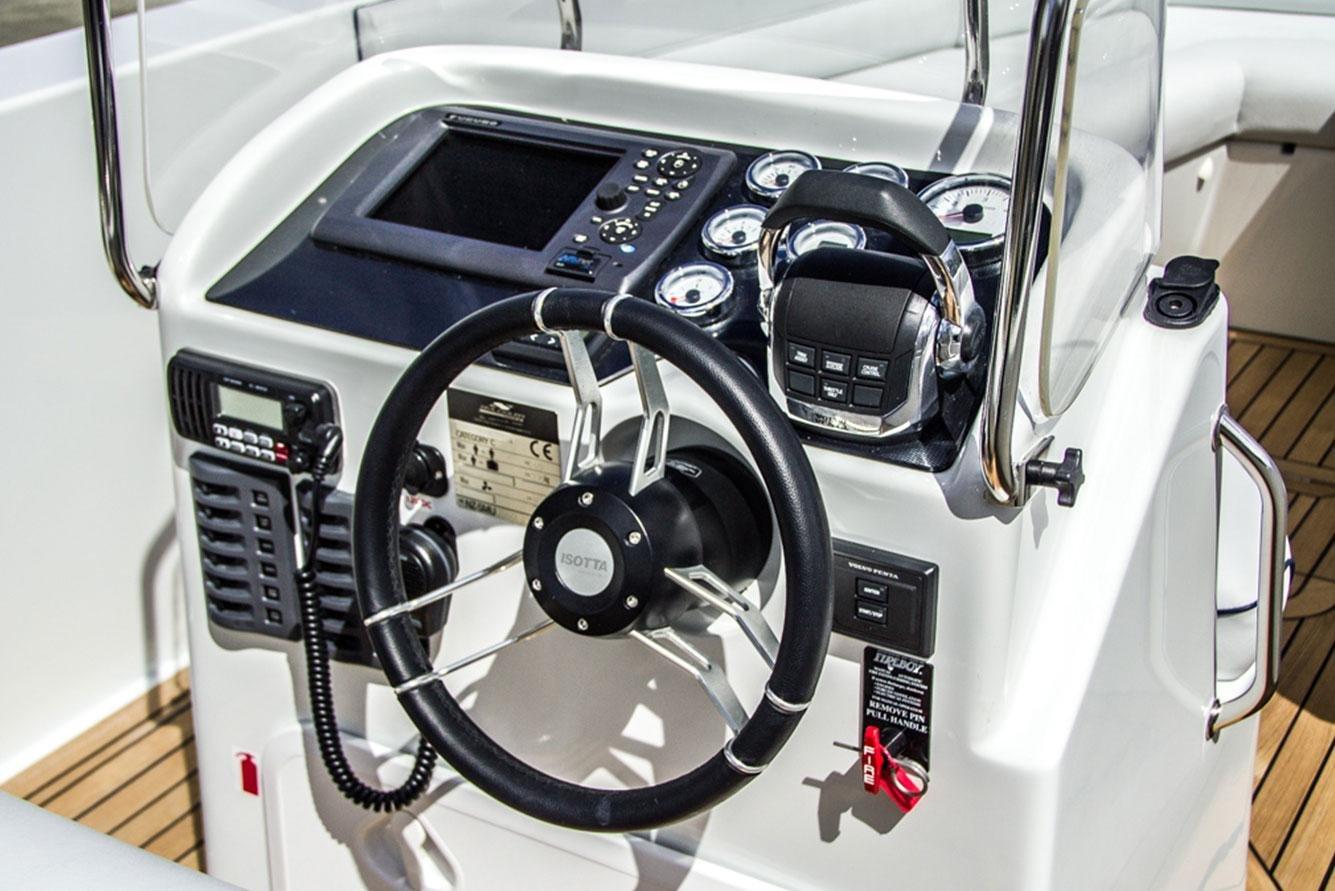

- Low profile wide console with forward seat
- Removable windscreen with S/S handrail
- Upholstered Helm Bar
- Hypalon tubes, 5x chambers, double wear patches, rubbing strip, spray deflector belting, repair kit, dual action pump
- Colour choice to suit
- 135 litre fuel tank (approx.)
- 2x moulded aft seats upholstered
- Full length swim platform with grab handle (inboard)
- Twin boarding platforms with grab handle (outboard)
- Brass keel strip
- Towing eye
Engineering / Plumbing:
- Hydraulic steering
- Seaworth single stage van separator vents for dry air (inboard)
- Fireboy fire system (inboard)
- S/S fuel filler
- Bilge pump auto x2
Electrical / Electronics:
- Switch panels x2
- VHF radio
- 12v / USB outlet
- LED Navigation lights
- Courtesy cockpit lights
- Batteries x2, switch gear
Upholstery / Miscellaneous:
- Dek King flooring
- Cleats S/S x3
- Lifting eyes x4
- Tie down eyes on transom x2

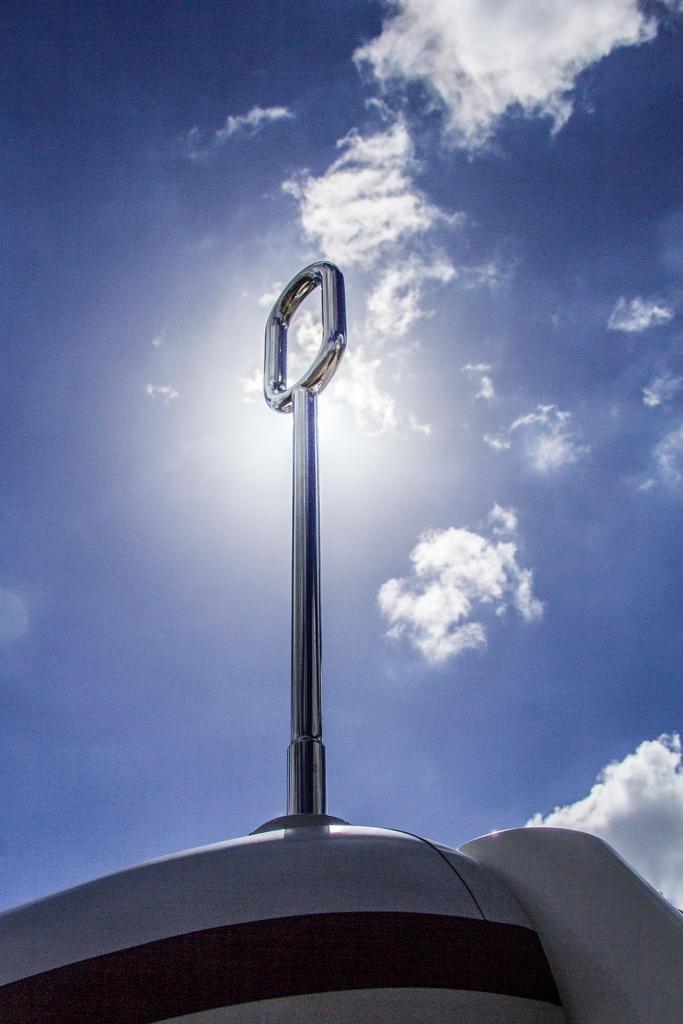

- Ski tow in transom (inboard)
- Anchor, chain, warp
- Boarding ladder
- Side handles on console
- UV resistant upholstery – colour choice to suit
- Smuggler Graphics
Engine Room:
- Inboard diesel Volvo D3 170hp with stern leg and propeller
- Outboard – all major brands 115-150hp
- Built to CE Standard
Optional Features
- Volvo 200hp with stern leg upgrade
- Volvo 220hp with stern leg upgrade
- Hamilton Jet drive with electronic gear shifter, dry run bearings, extra zinc blocks
- Outboard option – all major brands 115 – 150hp
- Fresh water flush in engine bay
- Chilly bin in fwd seat
- Removable canvas bimini above helm
- Forward guest canopy with clear panel and zip
- Overall cover custom fitted
- Console cover
- Boarding handle and sockets (removable)
- Non-skid patches
- Gelcoat colour change
- Fresh water tank and shower aft
- Salt water wash down
- Simrad or other Plotter / Sounder
- AIS / VHF
- Stereo and speakers x2
- Low profile S/S fairlead on fibreglass support
- S/S Anchor upgrade
- Lounge seating forward
- Lounge seating aft

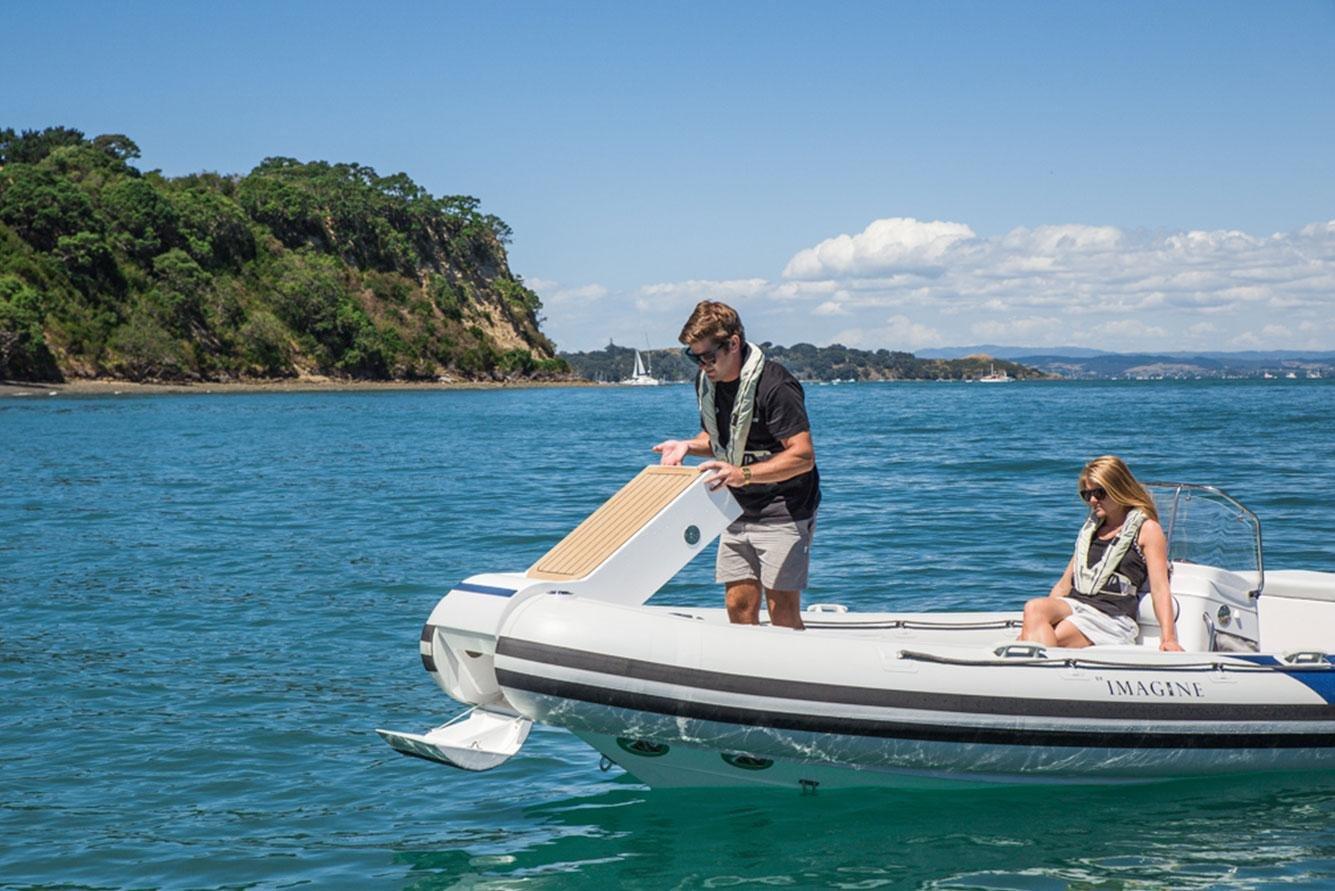

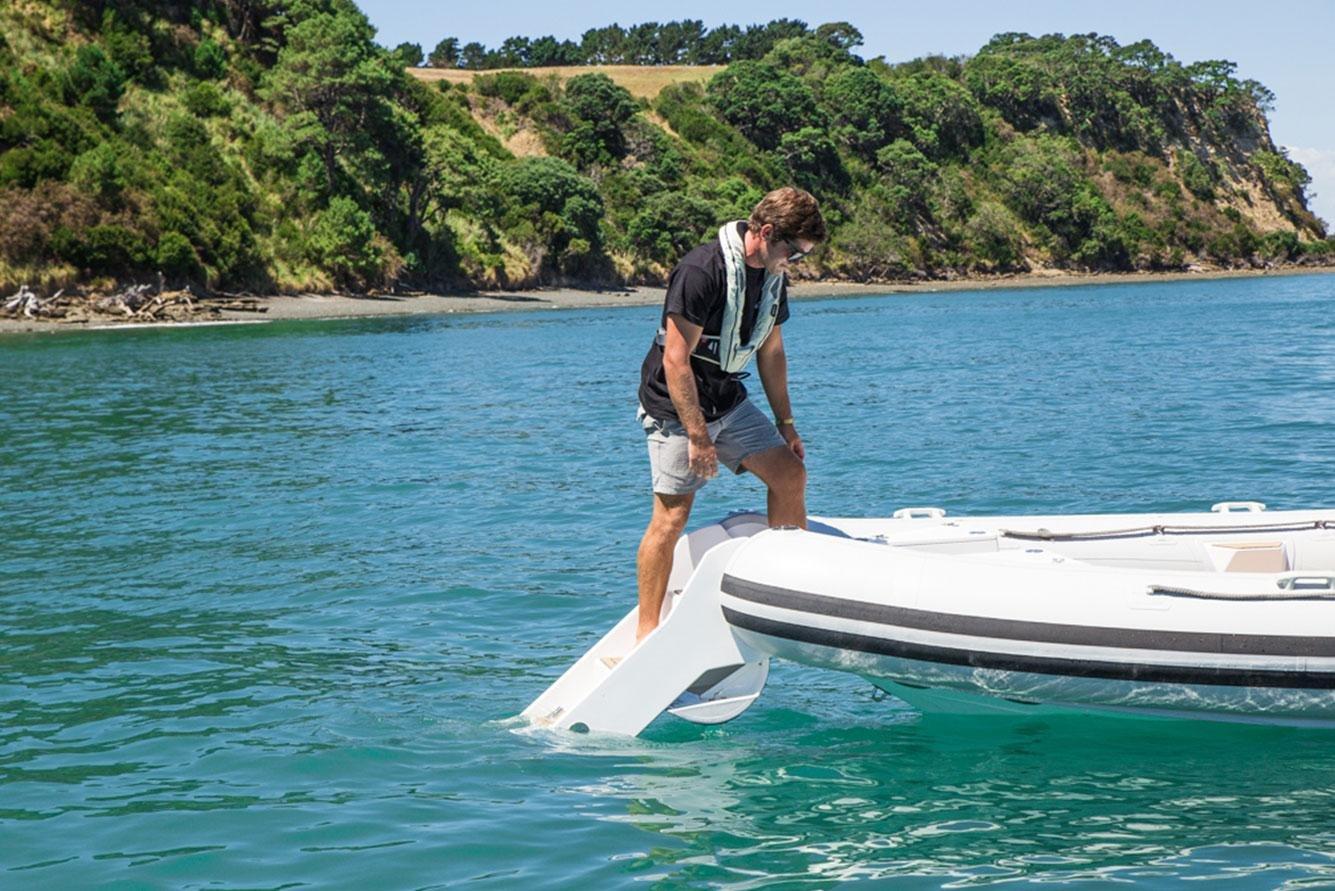

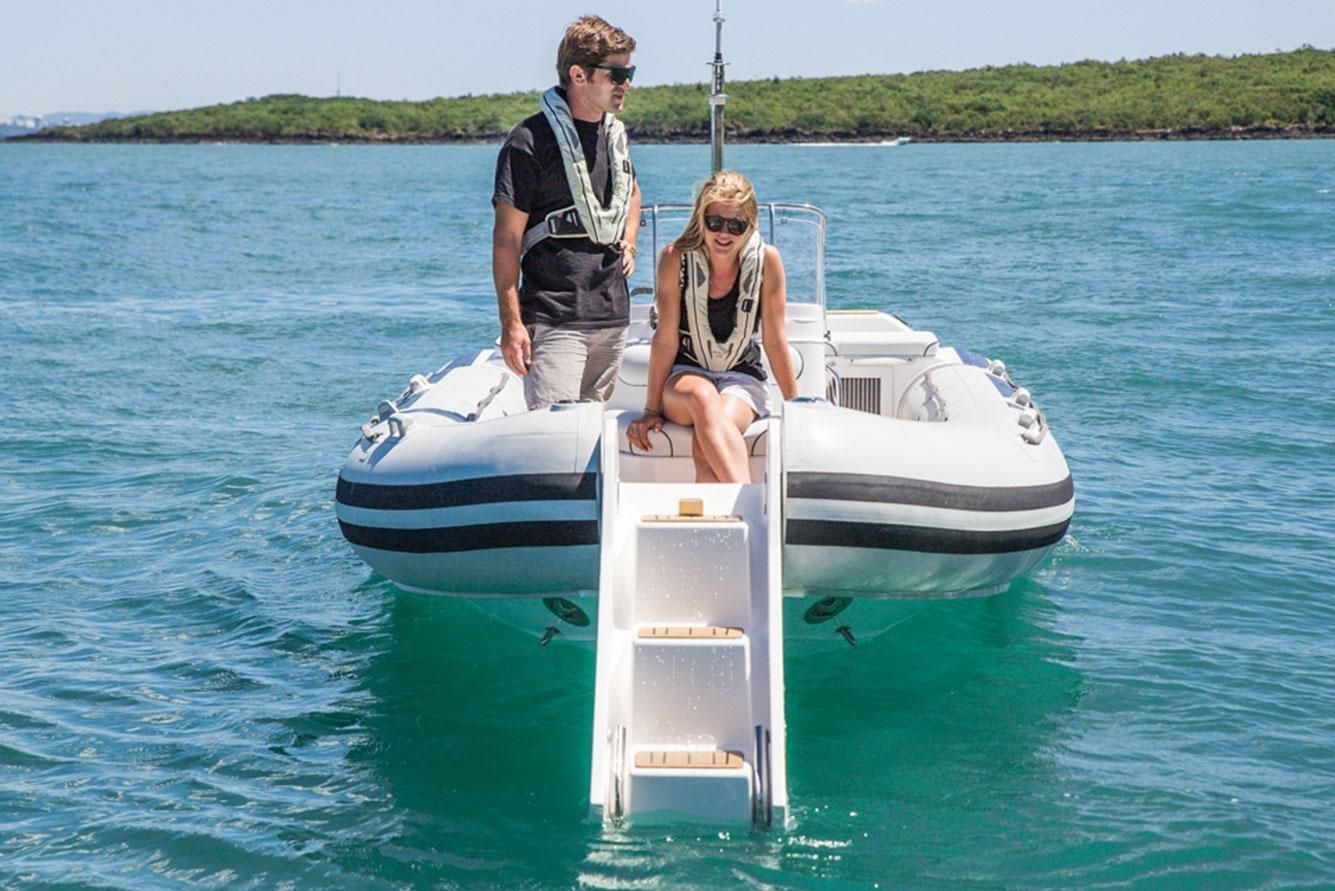

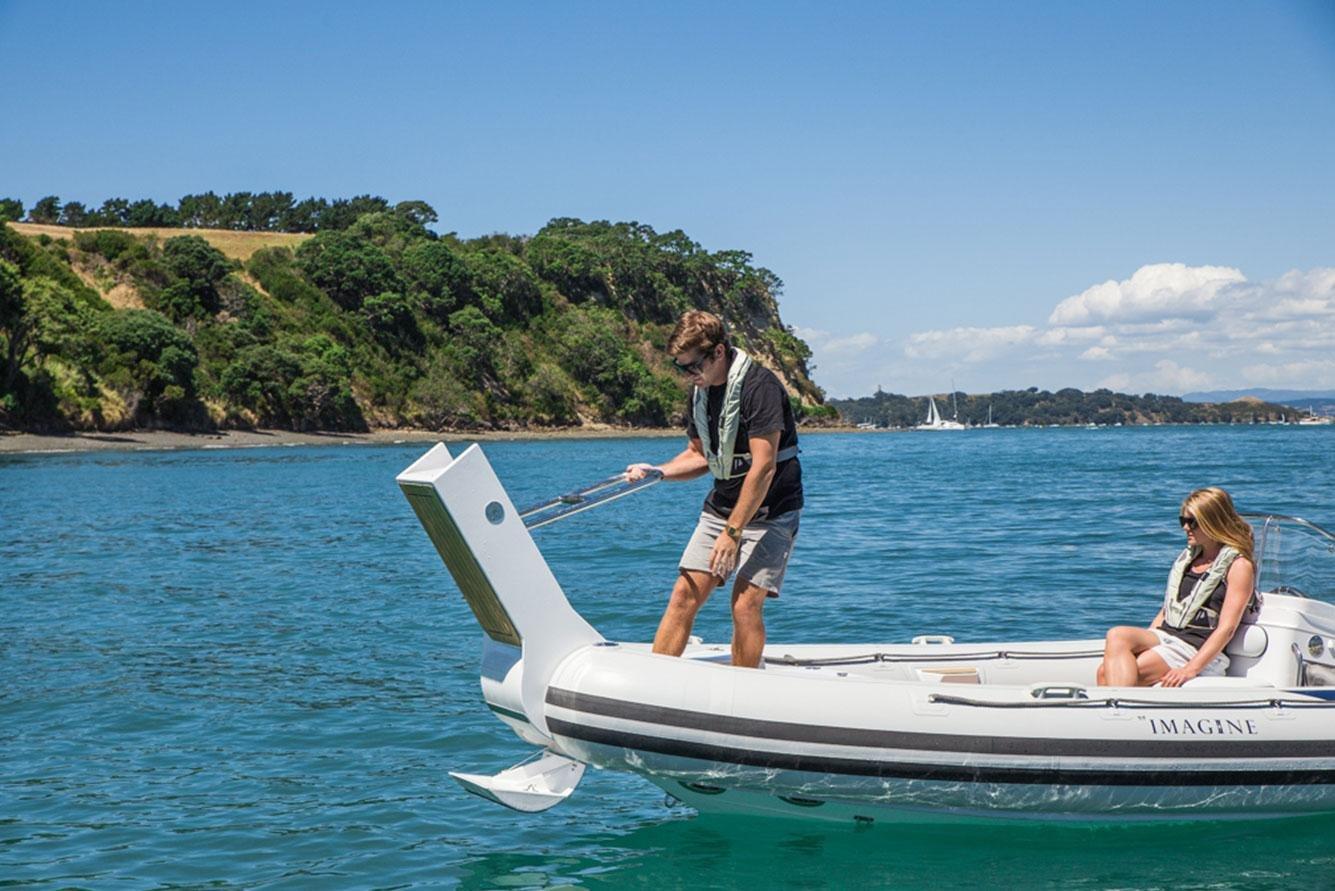

- Forward fold down boarding steps

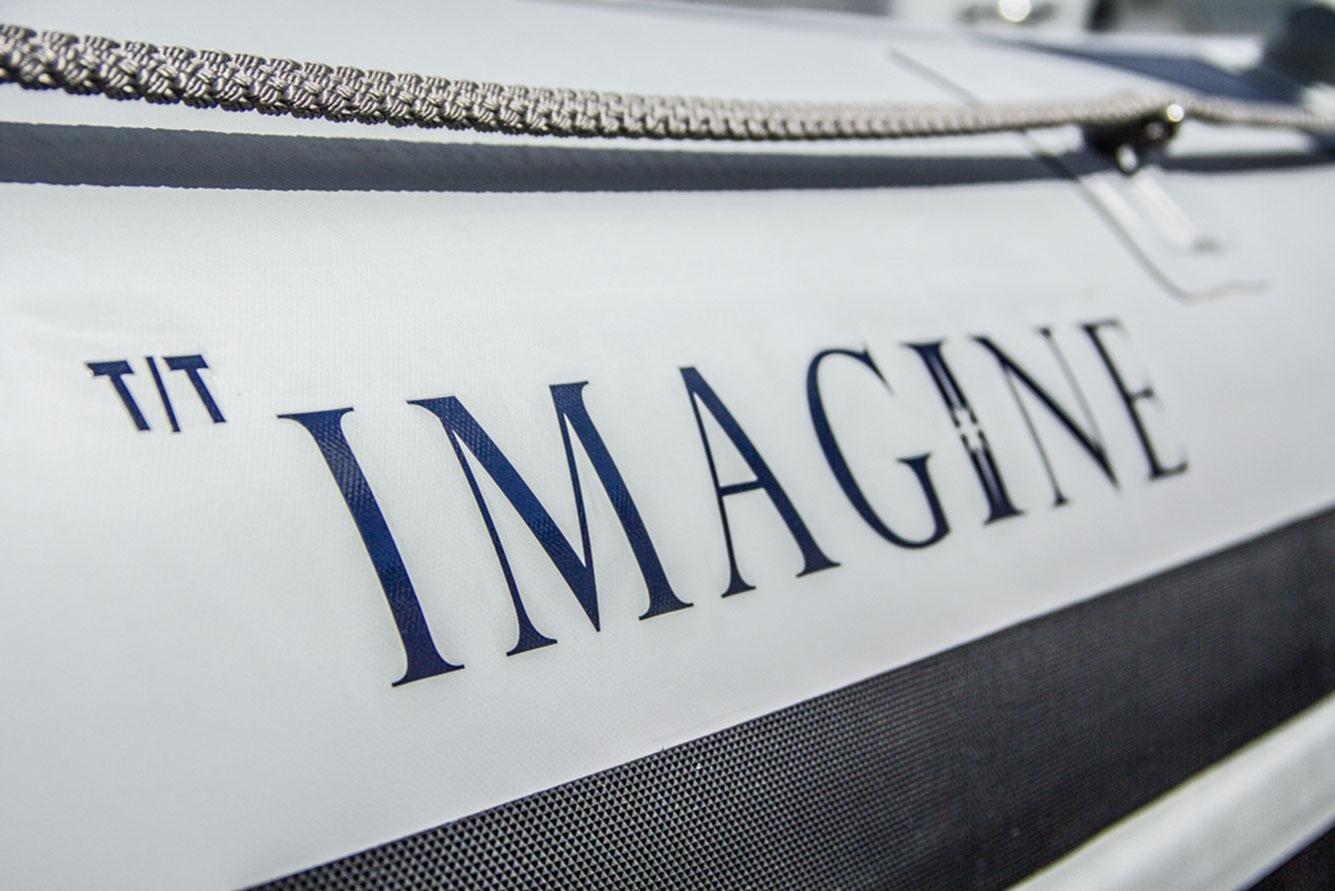

- Signwriting – boat name in Hypalon on tubes
- Lifting strops 12mm Dynex, snap hooks
- Cradle and packaging into container
Other options available on request
