Asking PriceBroker
$11,650,000 USD
+1 moreMakeAva Yachts

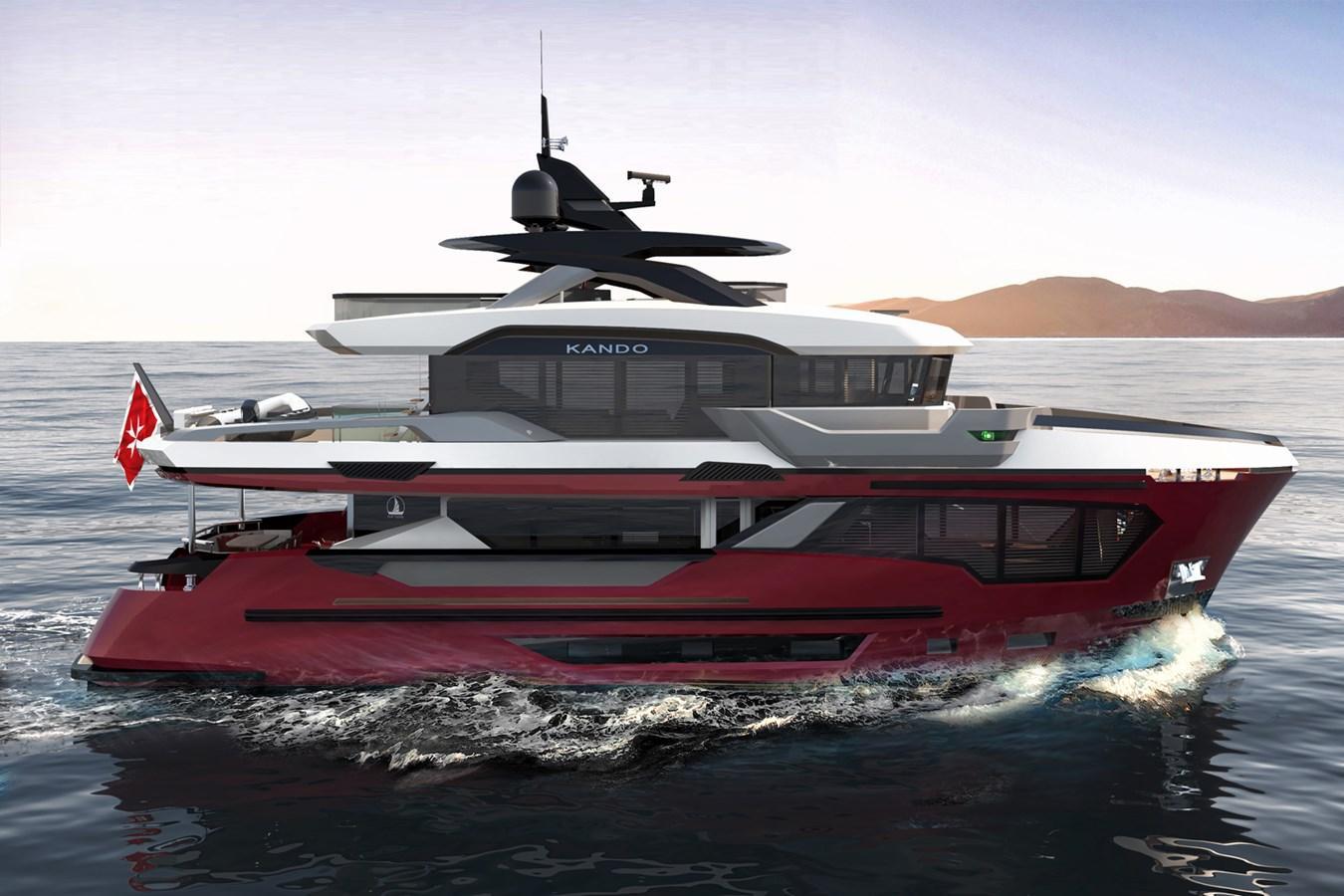

ModelKando 90 Explorer
Length3.6m
Cabins6
Draft3.6m
Overview
About this vessel
Walkthrough
Boarding the Kando 90 is via her portside passerelle or the swim platform if on a floating dock. Up six steps is an ample size Aft Deck with both fixed and loose seating around a dining table. The Salon next forward has a couch to starboard and two chairs to port. Next forward is an eight-place dining table.
Forward to starboard is a Day Head and the entrance to the full beam On-Deck Master Cabin with a large Head with two basins, toilet, bidet shower and a spa tub.
From the dining area forward to port is a large Galley and private stairs to a captains cabin on the lower level all the way forward. This cabin has a walkaround berth on centerline and a large Head and walk-in closet.
Back on the Main Deck in the entry foyer steps lead down to the four guest suites. Aft are matching walk-around queen berths with full Heads. Forward are matching double berth suites with full Heads.
Back to the entry lobby steps lead above to the Skylounge Deck. All the way forward is a large Pilothouse with a centerline Helm and guest seating aft to stbd.
The full beam Skylounge has a walk behind bar with four stools and going aft two sofas facing inboard with occasional chairs aft.
A Day Head is located forward on the starboard side.
The boat deck has plenty of room for outdoor seating forward of the tender. Also on the boat deck are steps to the Flybridge.
The Flybridge has an upper Helm on centerline, a walk behind bar to port and a large dining area to starboard. Aft is a large sunbed area for several people. A large FRP hardtop covers much of the Flybridge.
Characteristics
The vessel features a displacement hull form with an unsinkable hull design protecting against flooding in any compartment. Minimum cabin free height is 2.10 m. The boat has 4 control stations including 2 helm bridges with emergency stop buttons.
The hull is constructed of high tensile marine steel AH36, with an aluminum alloy superstructure (Almg 5083 H321). The hardtop is a sandwich system epoxy composite. Piping systems throughout use appropriate materials: polypropylene for fresh water, PVC for sanitary systems, mild steel for fuel, CuNiFe for sea water cooling, and galvanized steel for fire extinguishing, bilge suction, and tank air vent systems. Hydraulic systems use seamless steel pipes. Stainless steel equipment is AISI316L unless otherwise specified.
Specifications
The details
Vessel
MakeAva Yachts
ModelKando 90 Explorer
Dimensions
Length overall3.6m
Draft3.6m
Accommodation
Cabins6
Features
On board
Sleipner fin stabilizing system with zero speed functionality
Webasto air conditioning (180,000 BTU heat & cool)
Tecnicomar wastewater treatment system
Vacuum toilet system
Sea Recovery water maker (1800-2 GPD)
Opacmare/Besenzoni hydraulic tender crane (500 kg capacity)
Raymarine radar & GPS systems with 3x 19" touchscreens
Raymarine open array radar (12kW, 4kW)
Raymarine autopilot and sonar modules
Raymarine AIS650
Sailor 6222 VHF
Sailor 6110 GMDSS
Maretron central monitoring & alarm system
Sony camera monitoring system (5x 1080p IR cameras)
Siemens galley appliances (oven, microwave, induction range, dishwasher, refrigerator)
Siemens crew mess appliances (oven, microwave, induction range, dishwasher, refrigerator)
Siemens laundry equipment (washing machine, dryer, ironing mangle)
Samsung LED TVs throughout (65" UHD 4K in salons, 55" in owner's suite, 40" in cabins)
Intellian/KVH satellite TV antenna (2x 60cm dishes)
Panasonic inter-communication phone system
Teak deck covering (12mm) on weather exposed decks
LED search lights with remote control
LED underwater lights (8x)
Victron/Mastervolt marine gel service batteries and inverters
2x Kohler 60 kW diesel generators
2x Volvo-Penta D11 510 HP main engines
Hidromarin/Data electro-hydraulic steering gear with autopilot
Side Power SH700 bow thruster (700 kg-f)
Hidromarin/Data hydraulic anchor winches
Hidromarin/Data hydraulic mooring capstans
2x anchor winches with 18 mm galvanized steel chain (255 m each)
10x polished stainless steel bollards
Hydraulic passerelle gangway
Automatic sliding salon aft doors
FM200 fixed fire extinguishing system in engine room
2x Viking life rafts
Smoke detection & fire alarm system
Portable fire extinguishers and fire blankets
Magnetic compass, barometer, hydrometer kit
Kahlenberg air horn
LED navigation lights (COLREG compliant)
