Asking PriceBroker
$5,450,000 USD
+49 moreMakeAvA Yachts
ModelVoyage 90
Length1.7m
Cabins4
Draft1.7m
Overview
About this vessel

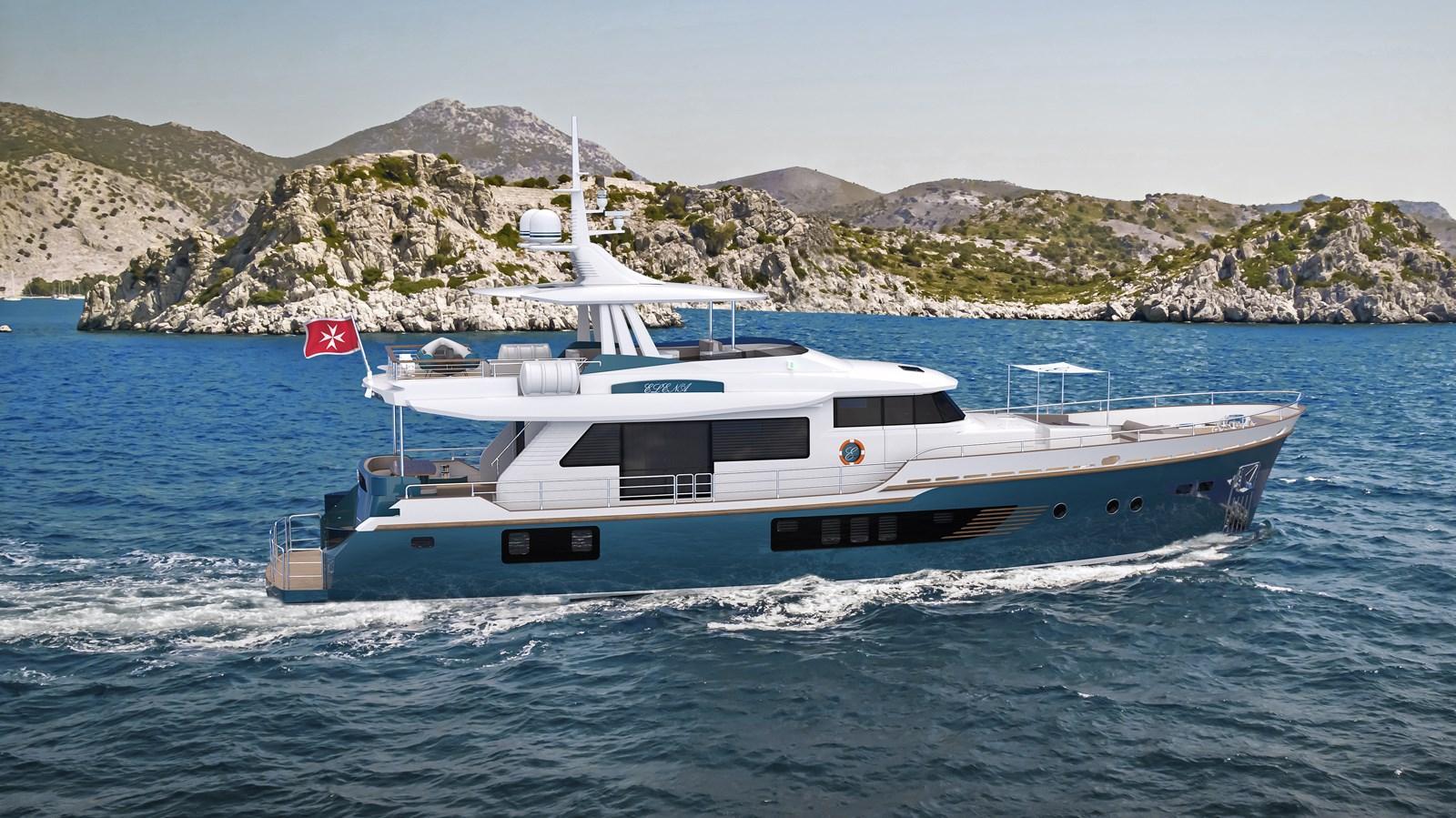

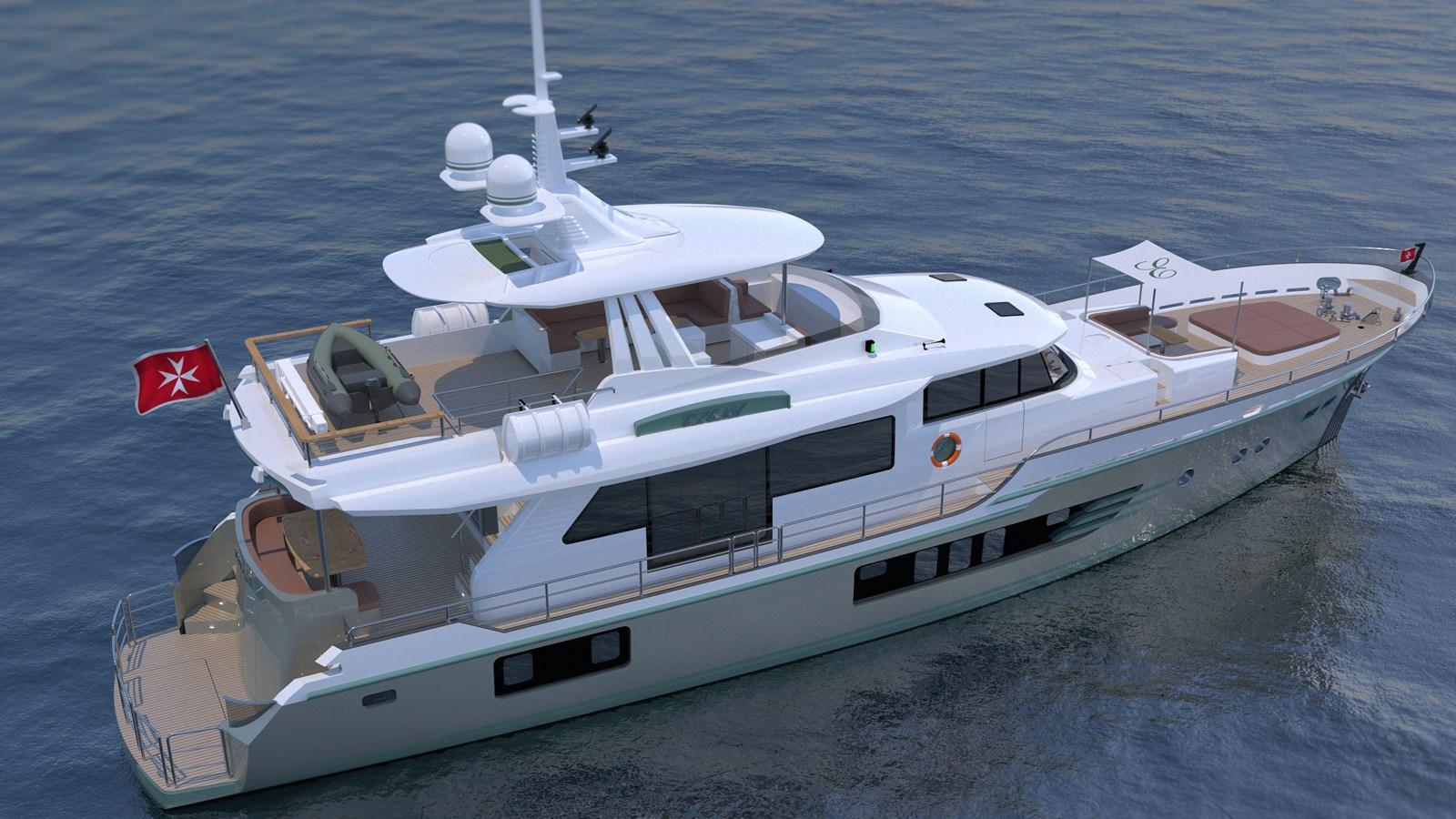

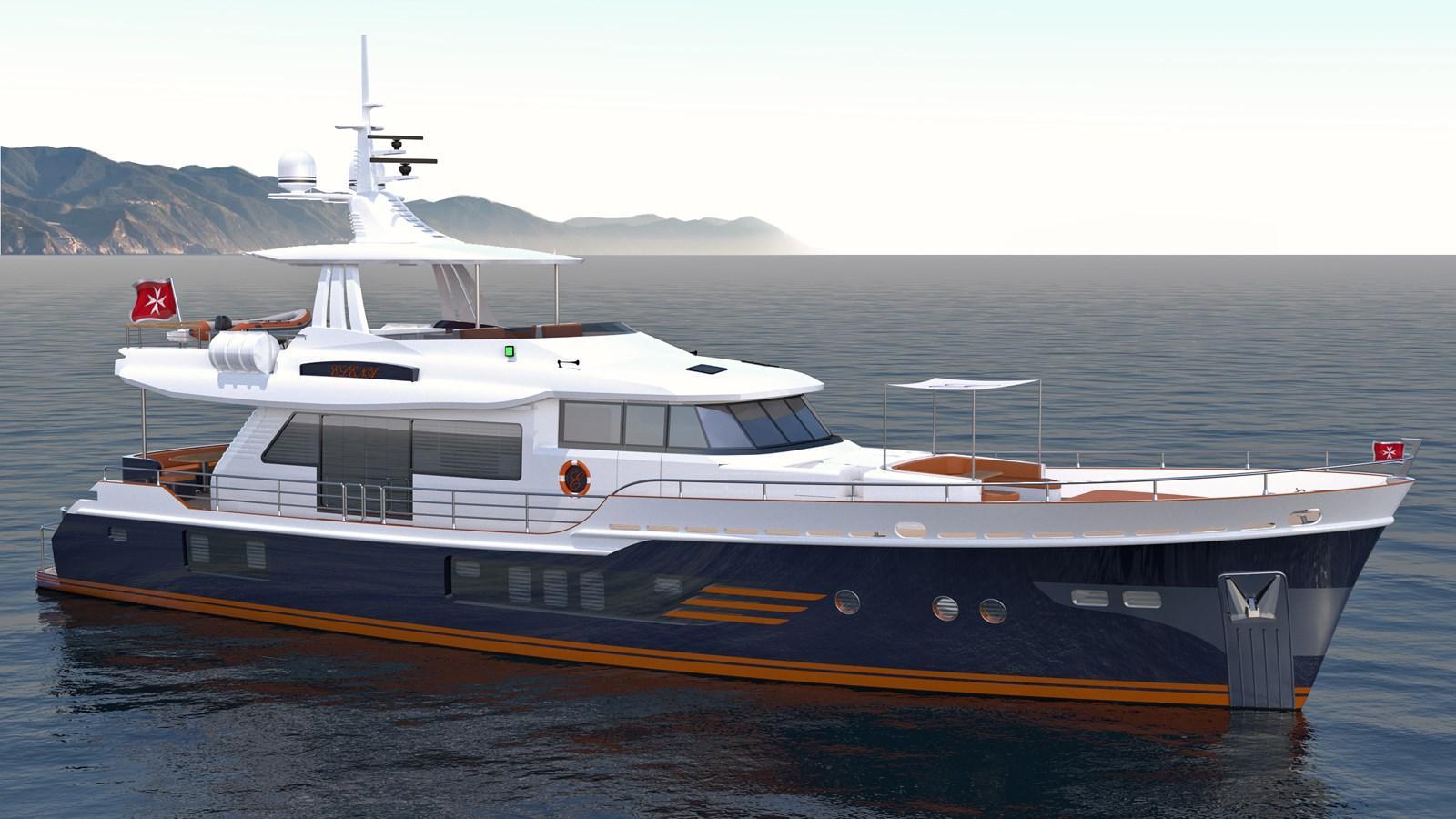

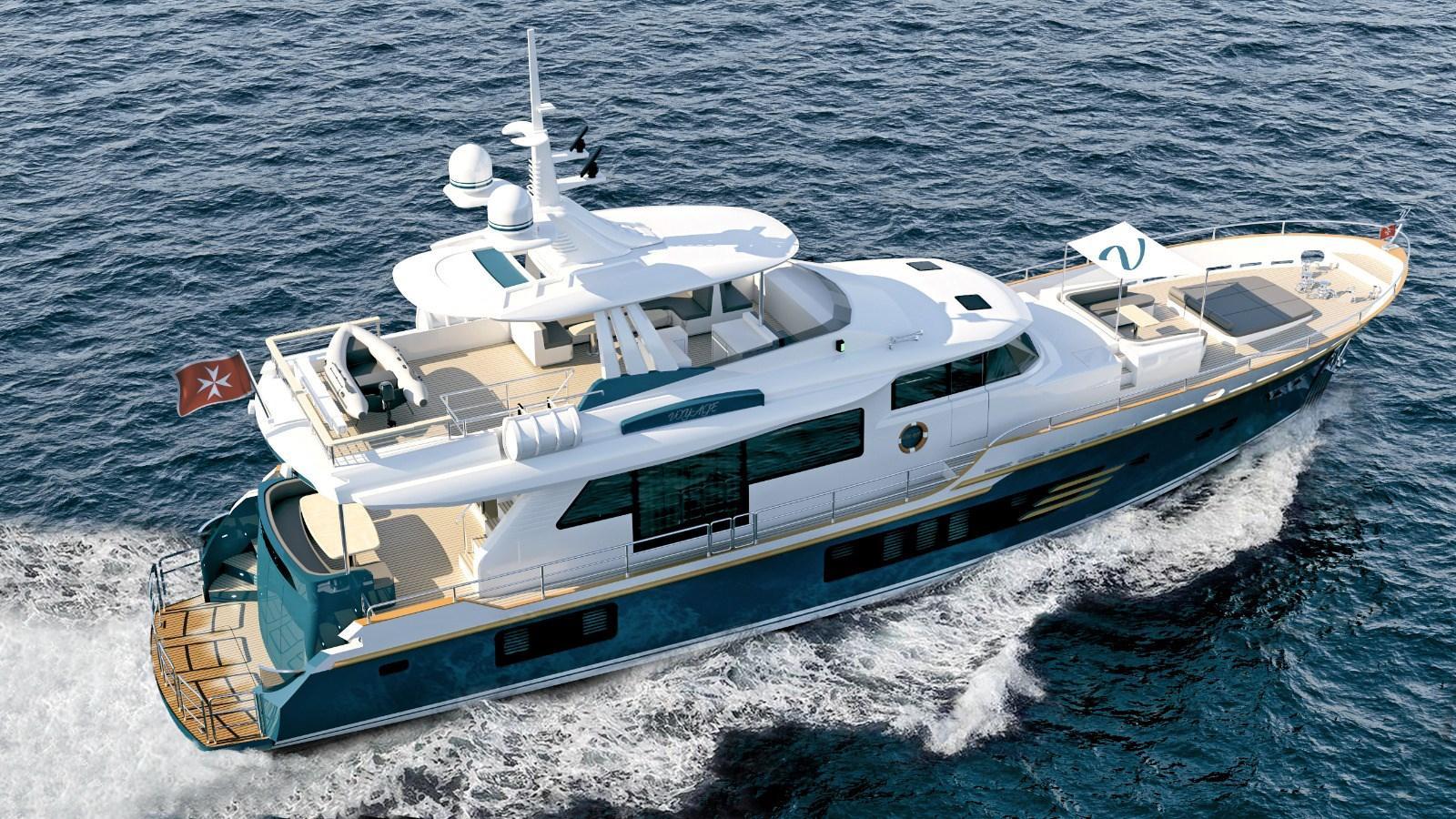

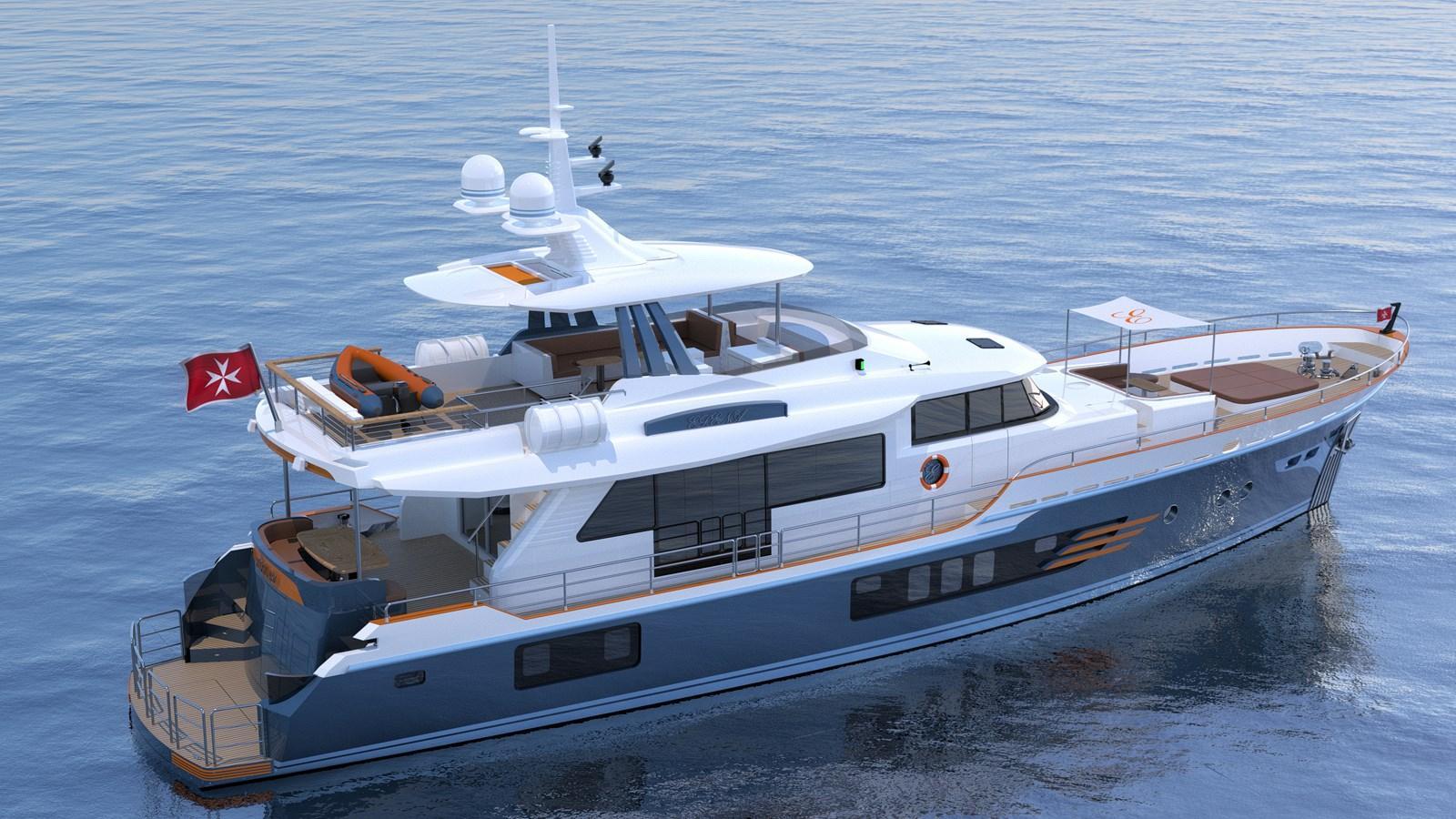

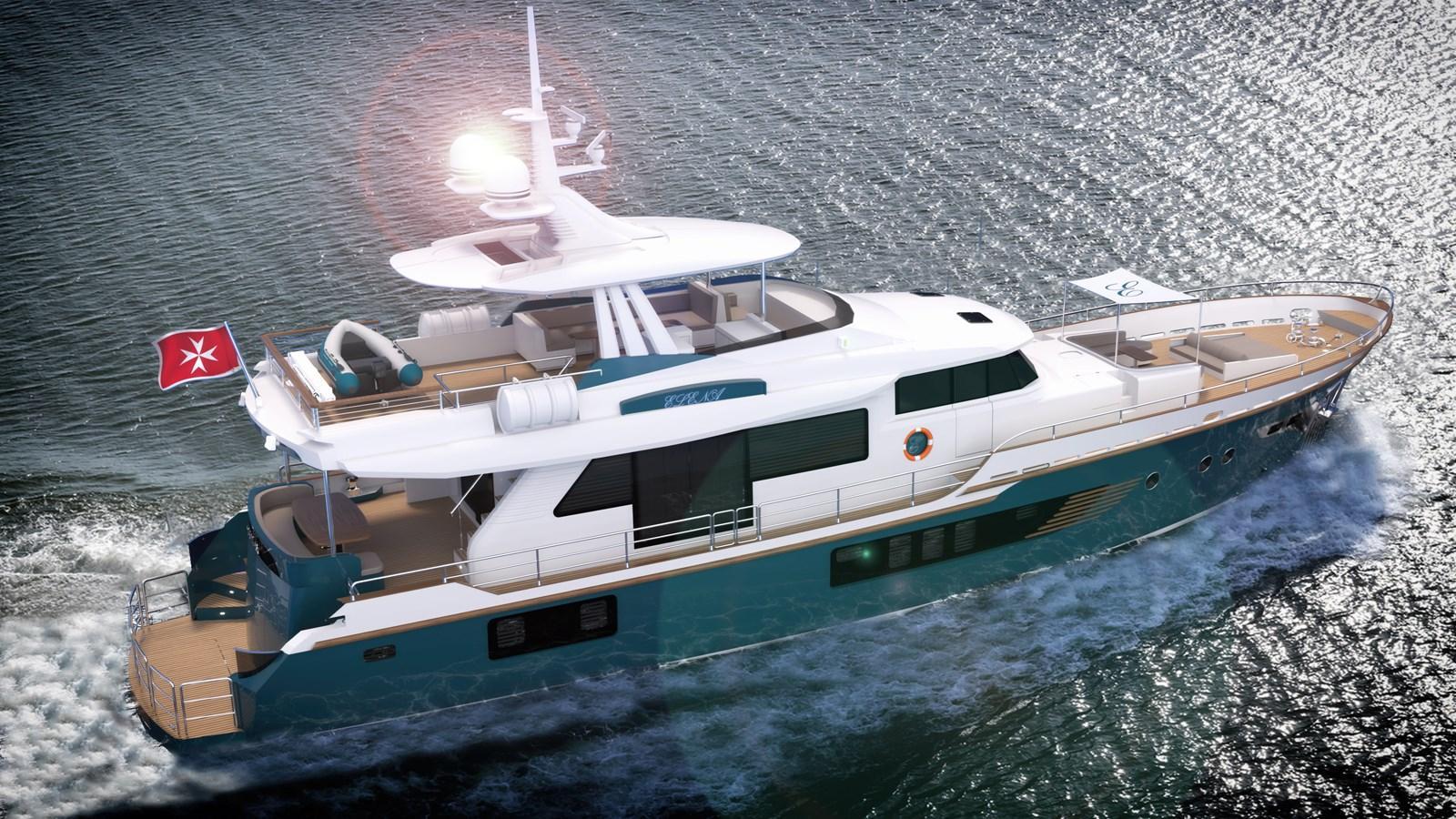

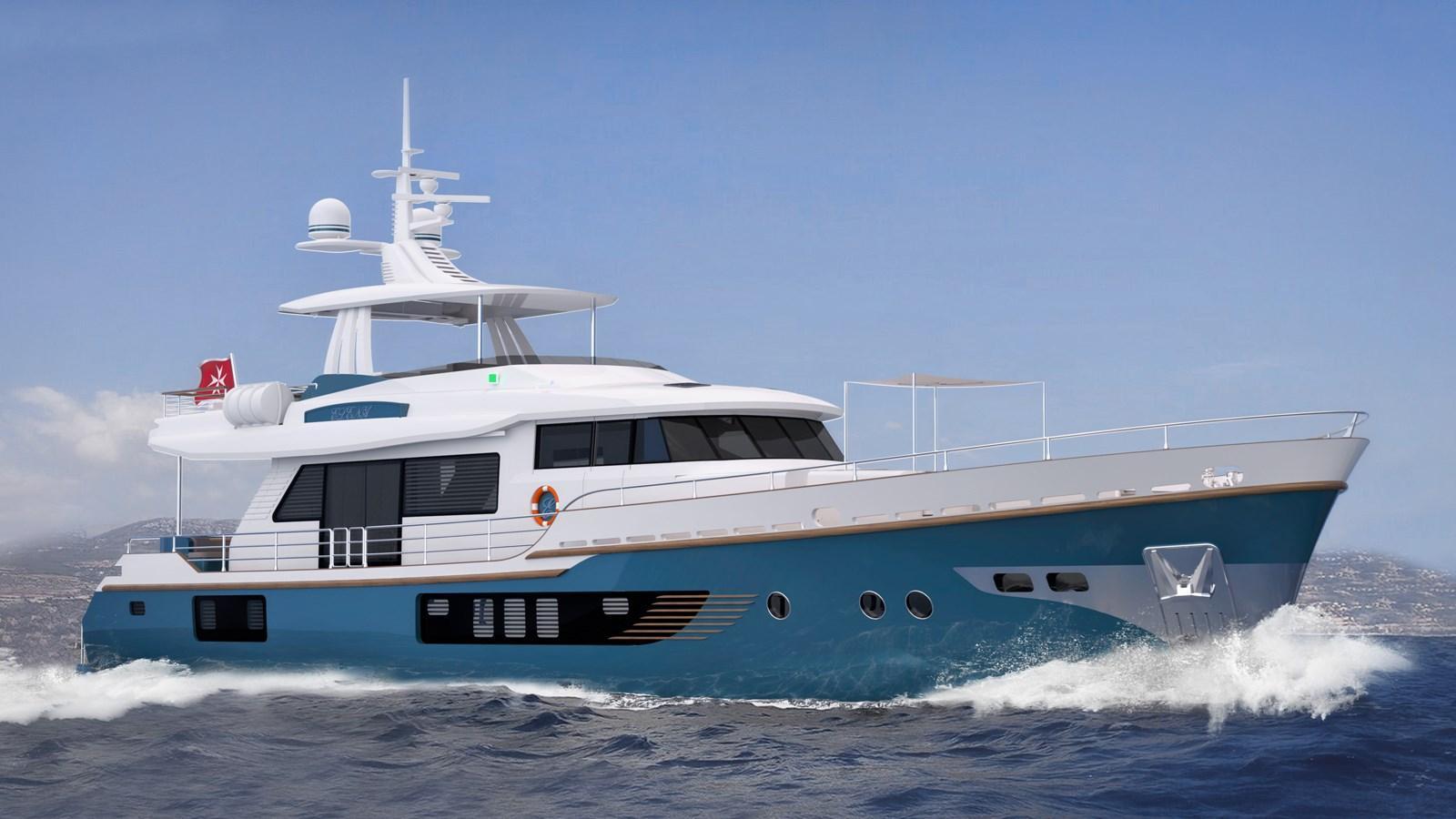

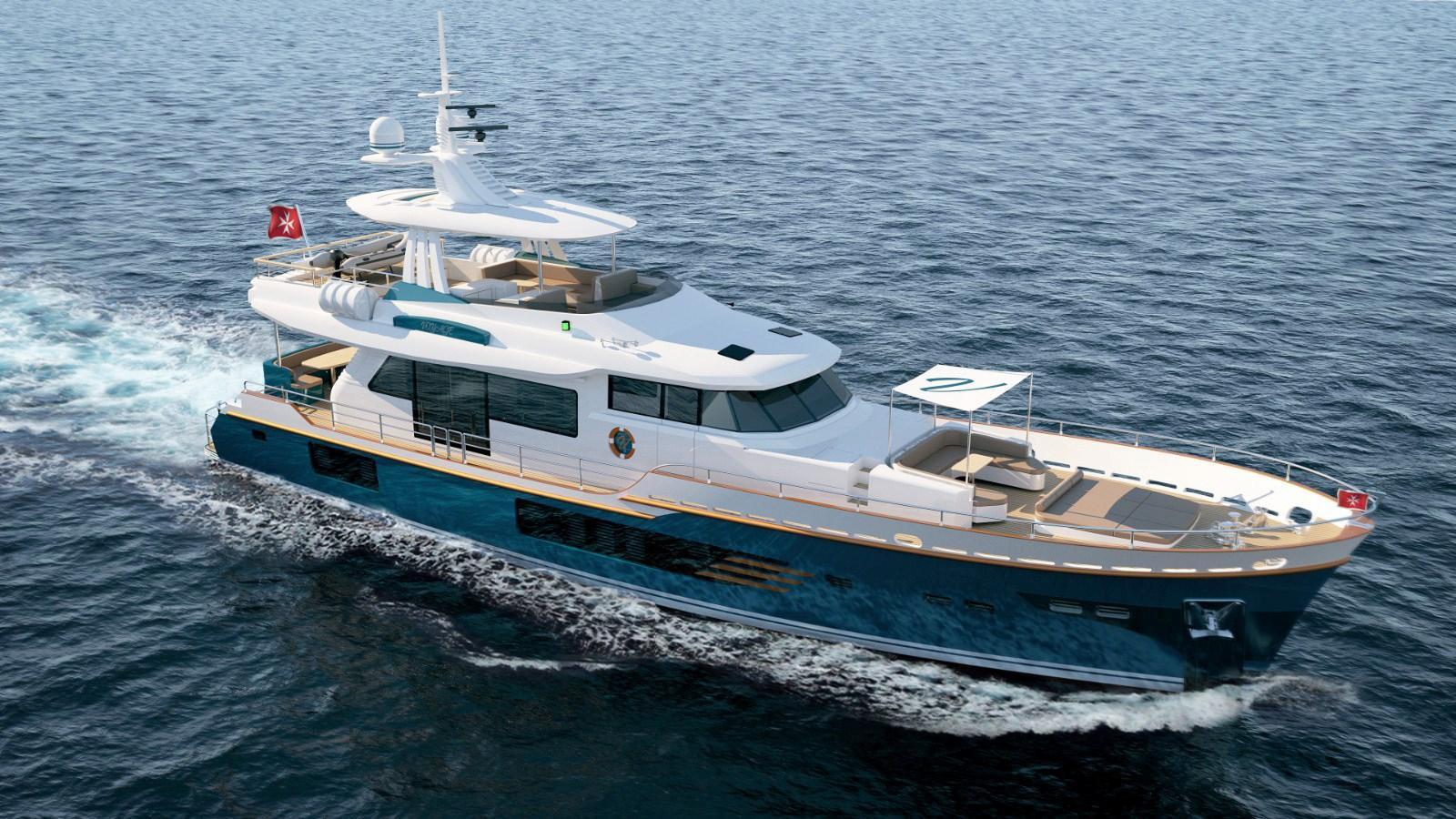

The Voyage 90 features an unsinkable displacement hull with minimum 2.10 m free height in cabins and two control stations including a helm bridge. The hull and superstructure are aluminum alloy Almg 5083 H321, with a sandwich system epoxy composite hardtop.
Propulsion is provided by twin Cummins QSL9 330 HP heavy duty marine engines at 1800 RPM with ZF 305-1 gearbox, long shaft and fixed blade stainless steel propellers. Maximum speed is 15 knots at 95% engine load, with a cruise speed of 8–10 knots at 70% engine load and a cruise range of 2,900+ nautical miles.

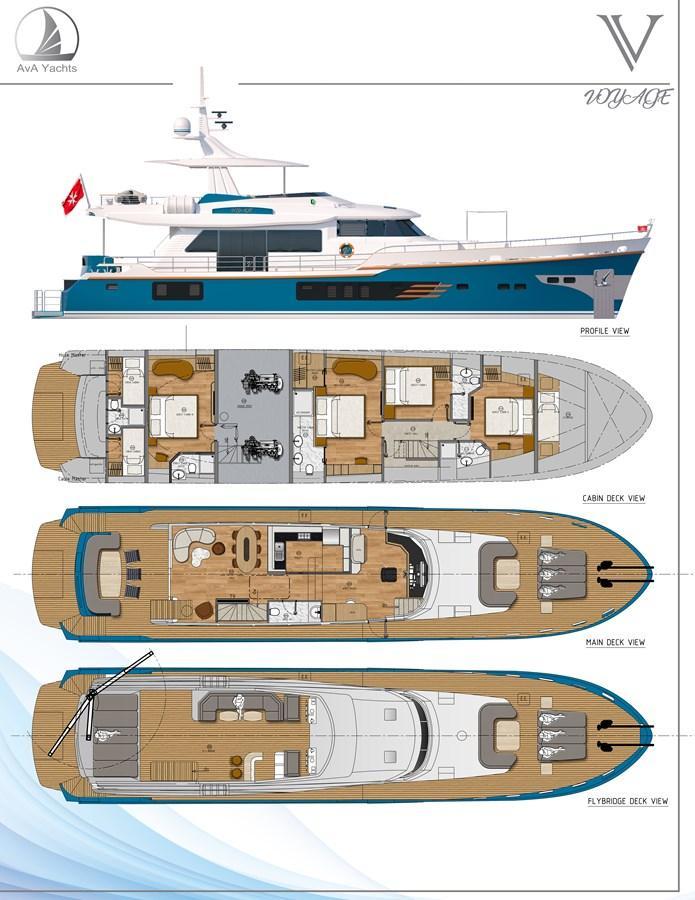

Boarding is via the swim platform on a floating dock or via side gates from a fixed dock. The large covered aft deck has both fixed U-shaped seating and loose seating around the dining table. A sliding door gives access to the bright and airy salon with large full-length port and starboard windows. A couch is aft, with a dining table and six chairs forward, and steps below to port. The day head with semi-enclosed galley is to port. A large pilothouse with guest seating is forward. Steps in this area lead below to three cabins: the king size master suite is aft, and two queen size cabins forward, each with their own heads and shower. Accessed from the steps in the salon is a private king size VIP cabin. Crew accommodation for two is aft, accessed from a door on the swim platform. The flybridge has a centered side helm with lounges port and starboard. Aft to port is a U-shaped sofa and to starboard is a walk-around bar. The tender is stored aft with a dedicated crane.
The vessel is built to CE Category A and delivered in seaworthy condition at the free zone quay in Antalya. A 12-month warranty covers defects caused by defective material and poor workmanship, excluding normal wear and tear or improper handling.
Specifications
The details
Vessel
MakeAvA Yachts
ModelVoyage 90
Dimensions
Length overall1.7m
Draft1.7m
Accommodation
Cabins4
Features
On board
Twin Cummins QSL9 330 HP marine engines
ZF 305-1 gearbox
Stainless steel propeller shaft
Hydraulic steering system with manual emergency operation
Fin-stabilizing system
Bow thruster
Anchor winch with digital chain meter
Mooring capstans
Tender crane on flybridge
Air conditioning with chilled water compressor unit and fan coils
Water maker (150 lt/h capacity)
Vacuum toilet system
Teak deck covering on weather exposed decks
Polished stainless steel railings and bollards
Automatic sliding salon aft door
LED search lights with remote control

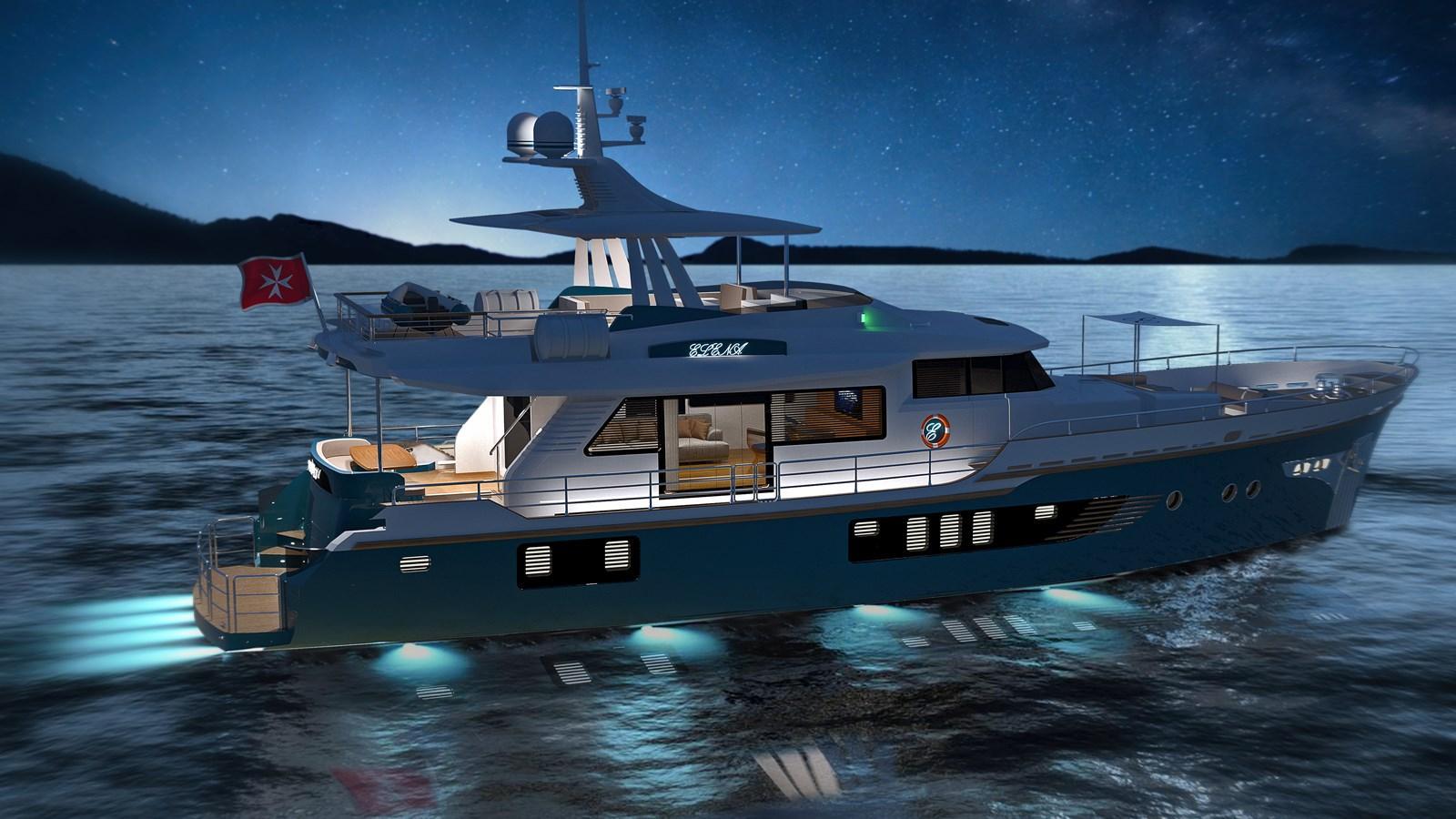

Underwater LED lights
Simrad or Furuno radar and GPS systems
3 x 19" touch screen color displays
4 kW radar
AutoPilot, GPS, sonar, AIS, and VHF modules
Central monitoring and alarm system
Camera monitoring system with 5x 1080p IR cameras and HD recorder
Electronic engine throttles at two control stations
Twin diesel generators (50 kW and 27 kW)
Victron or Mastervolt battery systems and inverters
Fixed water fire extinguishing system
NOVEC fire extinguishing system in engine room
Viking liferafts
EPIRB and SART emergency beacons
Samsung LED TVs
Siemens galley appliances
Home theatre sound system
Stereo system on pool deck and flybridge
