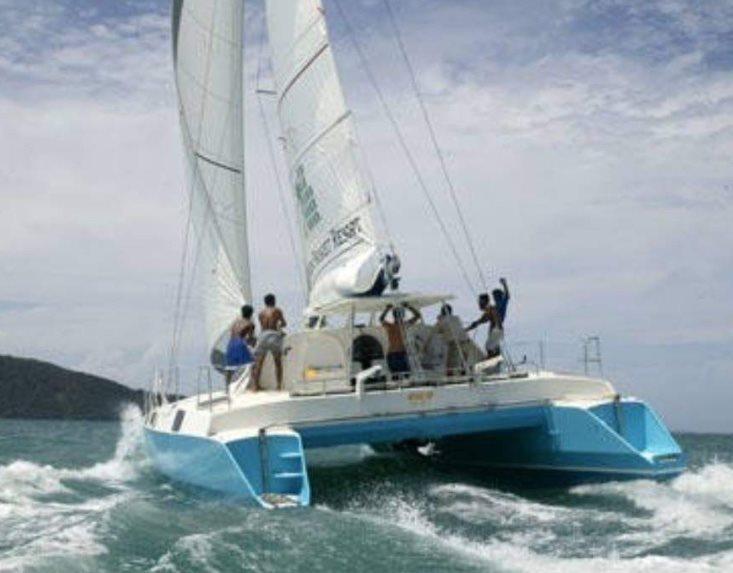

Sea Boats

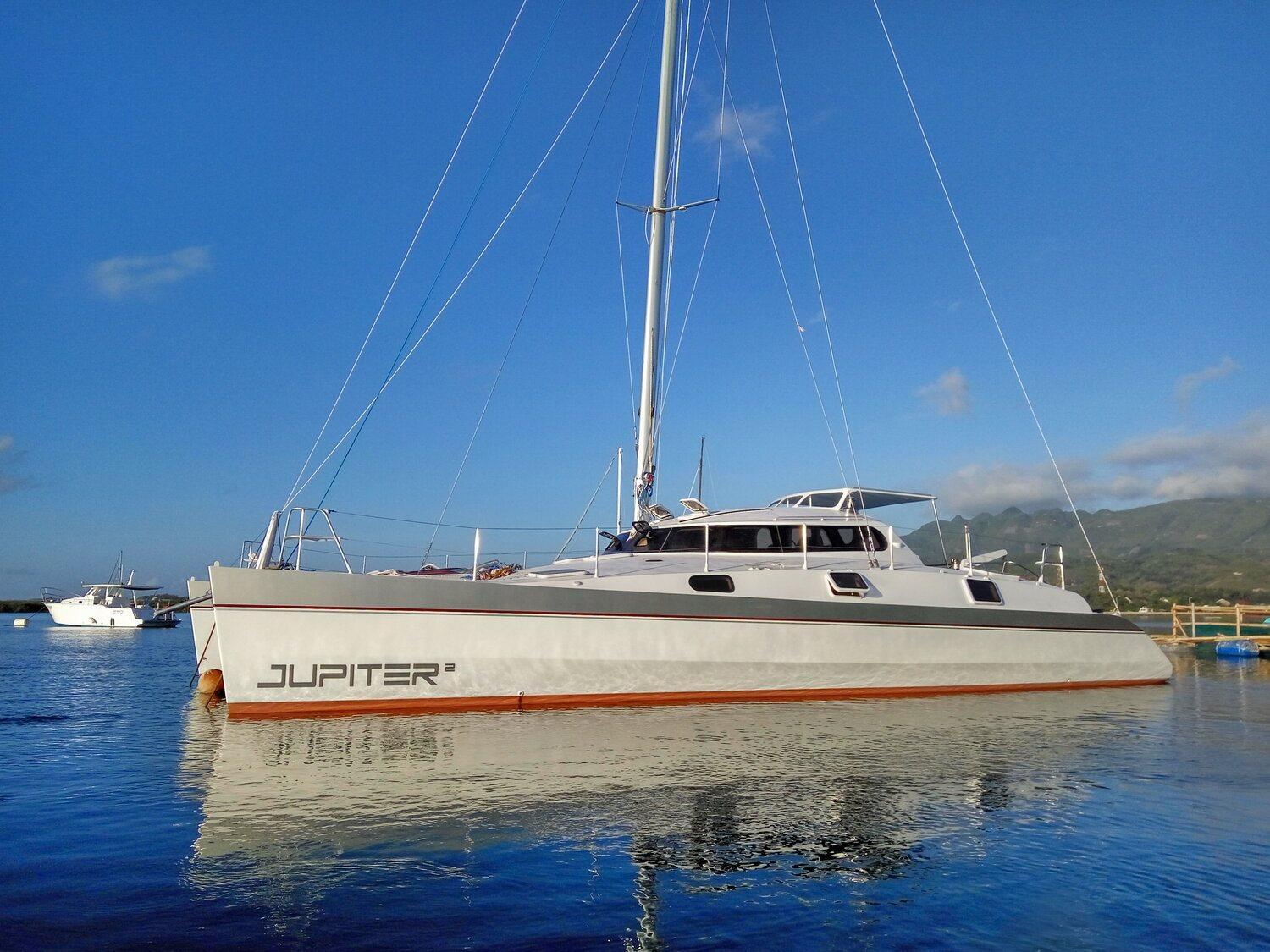

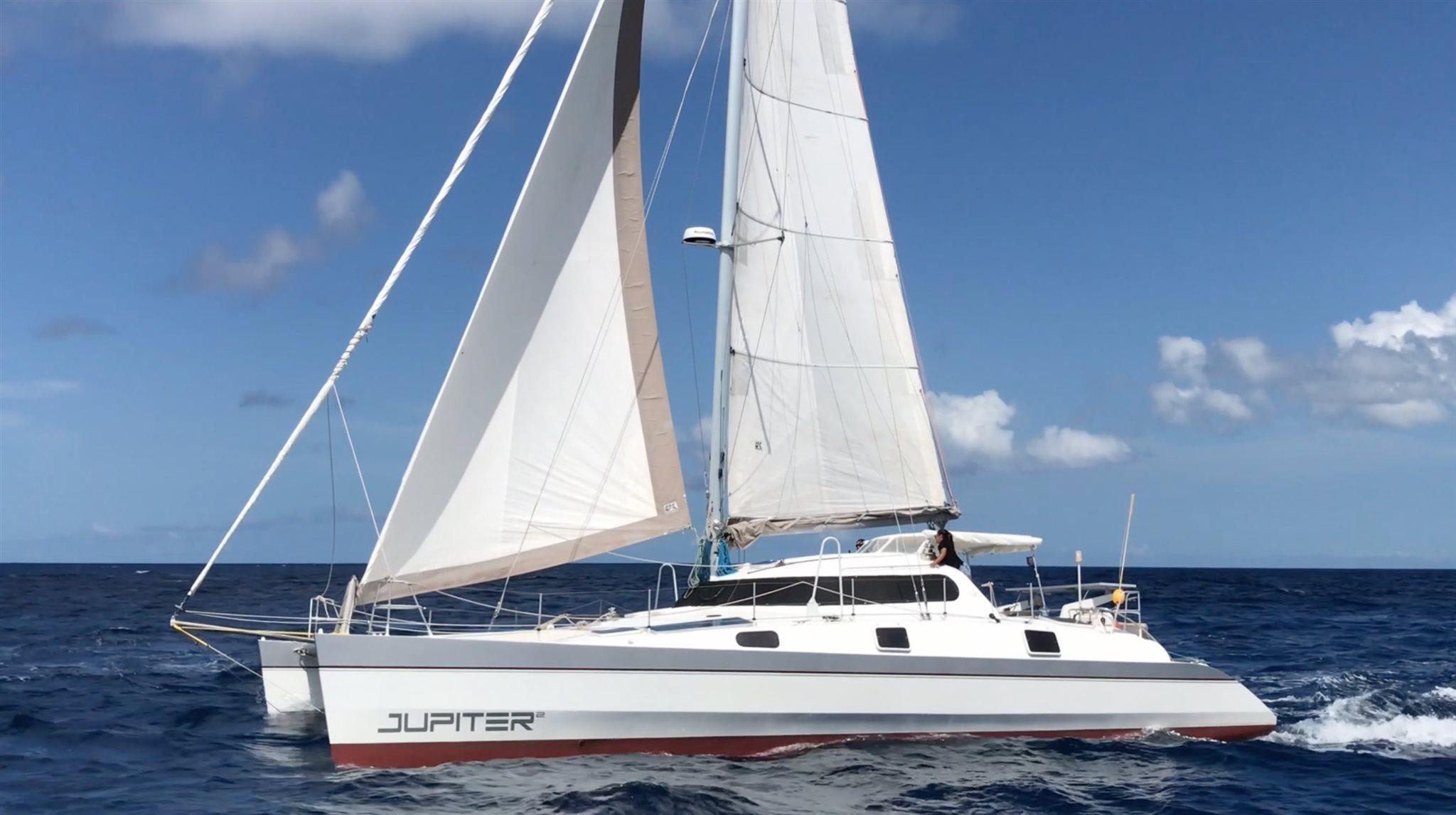

Features

• LOA: 14.6m/48ft
• LWL: 14.4m/47ft
• Beam: 7.4m/ 24.3ft
• BWL: 1.176m/3.85ft - hull waterline beam
• Hull Draught: 0.55m/1.8ft
• Kick up rudders down: 0.720m/2.4ft
• Draught with dagger board down: 1.8m/5.9ft
• Light displacement: 6.100kg
• Designed cruising displacement: 7.400kg
• Max displacement for performance: 8.700kg
• Bridge deck clearance at: 7.4 tons 0.89m/2.92ft
• MCT 180 kg per cm. Moment to trim.
• Hull Wetted surface area including rudders 38.4 sq metre.
• LCB 7.732meters aft from waterline.
• Total drag at 9kts 278kg
• Effective power required 29 hp
• Engines 2 x 30hp shaft drive with folding propellers
• Water tanks: 2x at 250L- 400L customizable
• Fuel tanks: 2x at 185L and 470L.
• A total range of 1960*nm at 6kt one eng or 1000* at 8kts 2 eng
• Mast: 18.5m/61ft.. Air draught 21m/69ft
• Boom: 6.2m/20.4ft
• Sail area main 76sqm; Genoa 48sqm; Spinnaker 145sqm; staysail/storm 10 / 6 sqm; Screecher 90sqm
• Winches. Primary 2pc x 52 st2sp. [Trims 62st2sp] main sheet, furling line 2pc x.52st2sp. on mast halyards reefing lines 3pc x 42 2sp.

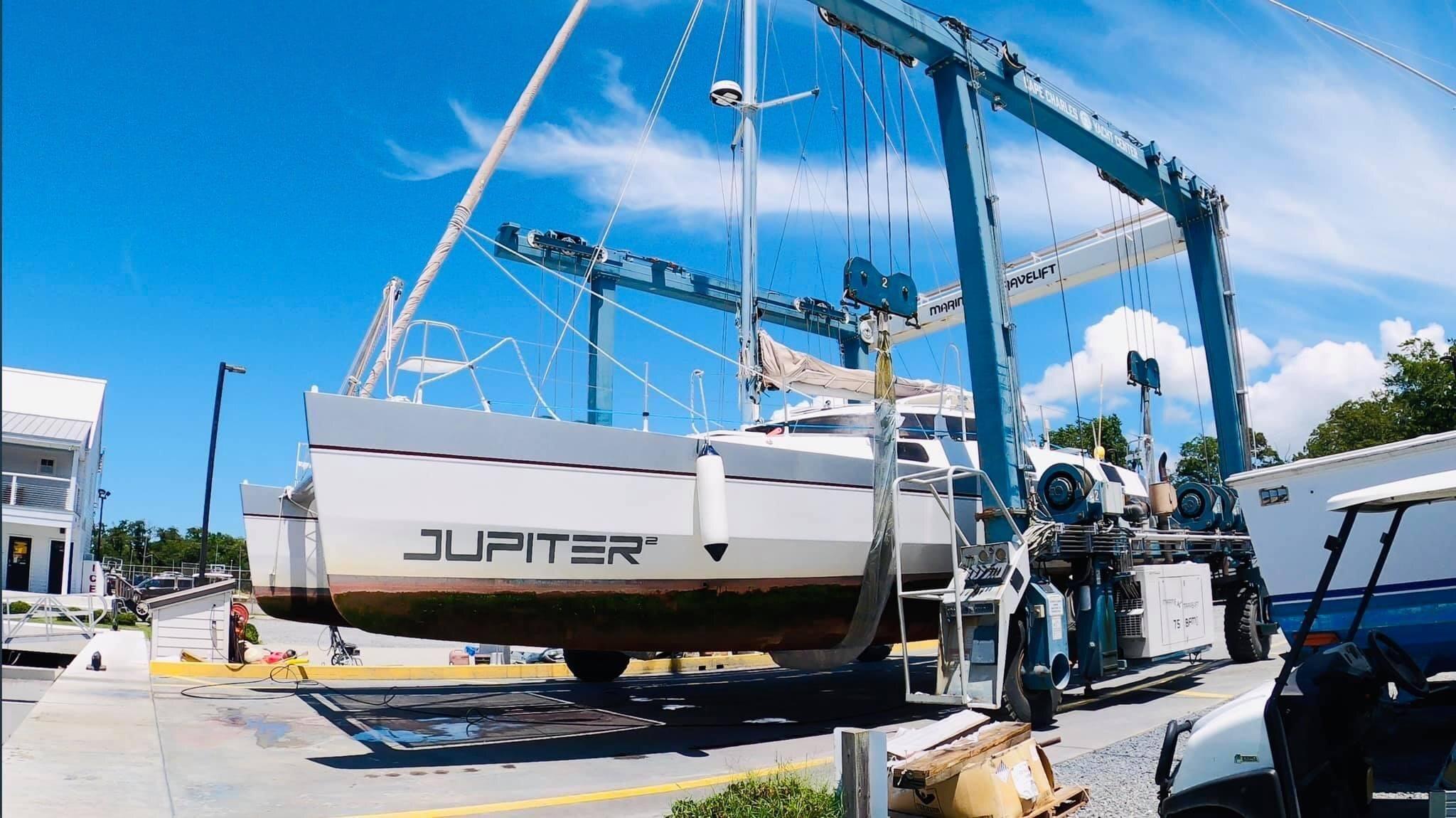

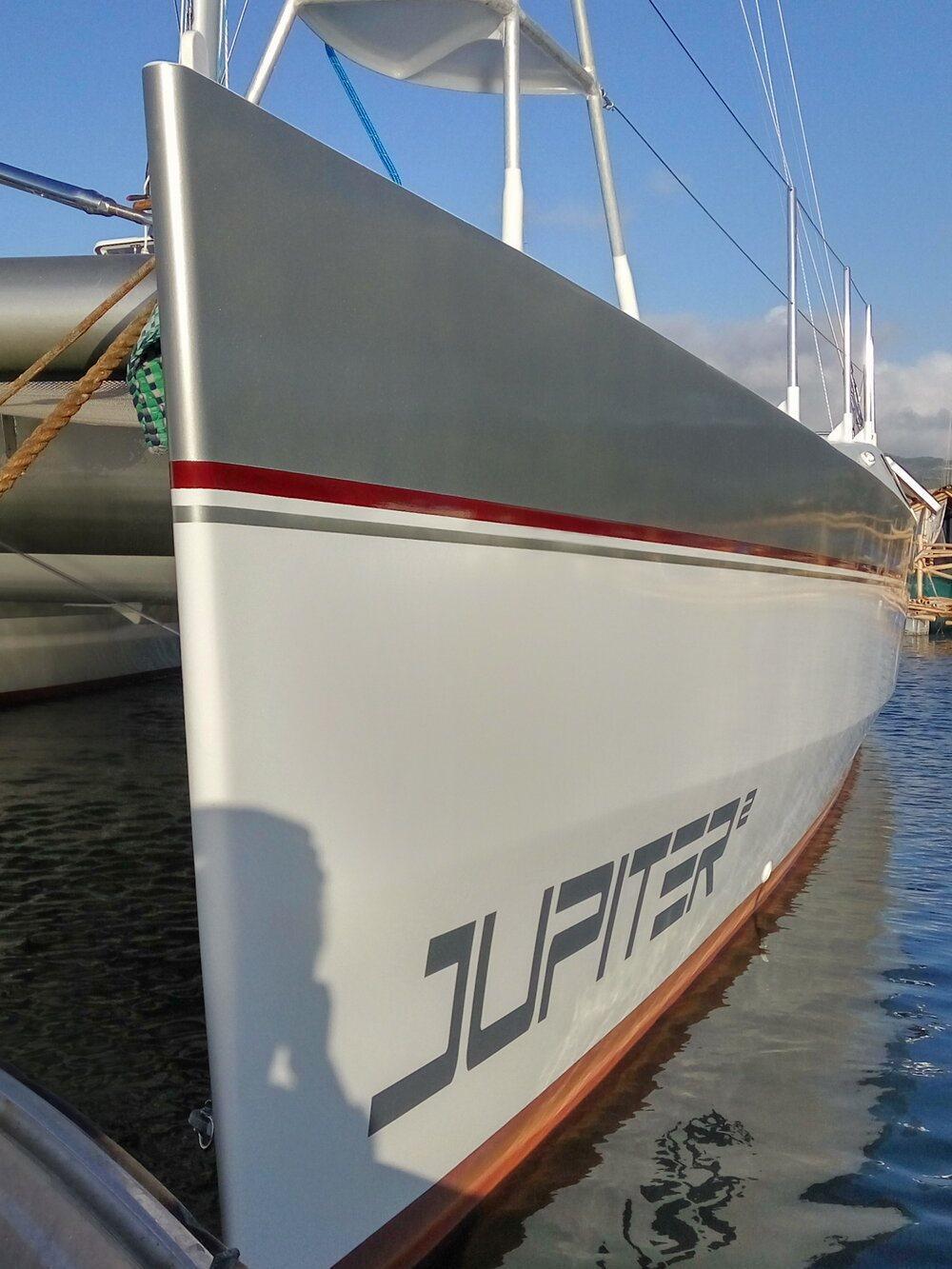

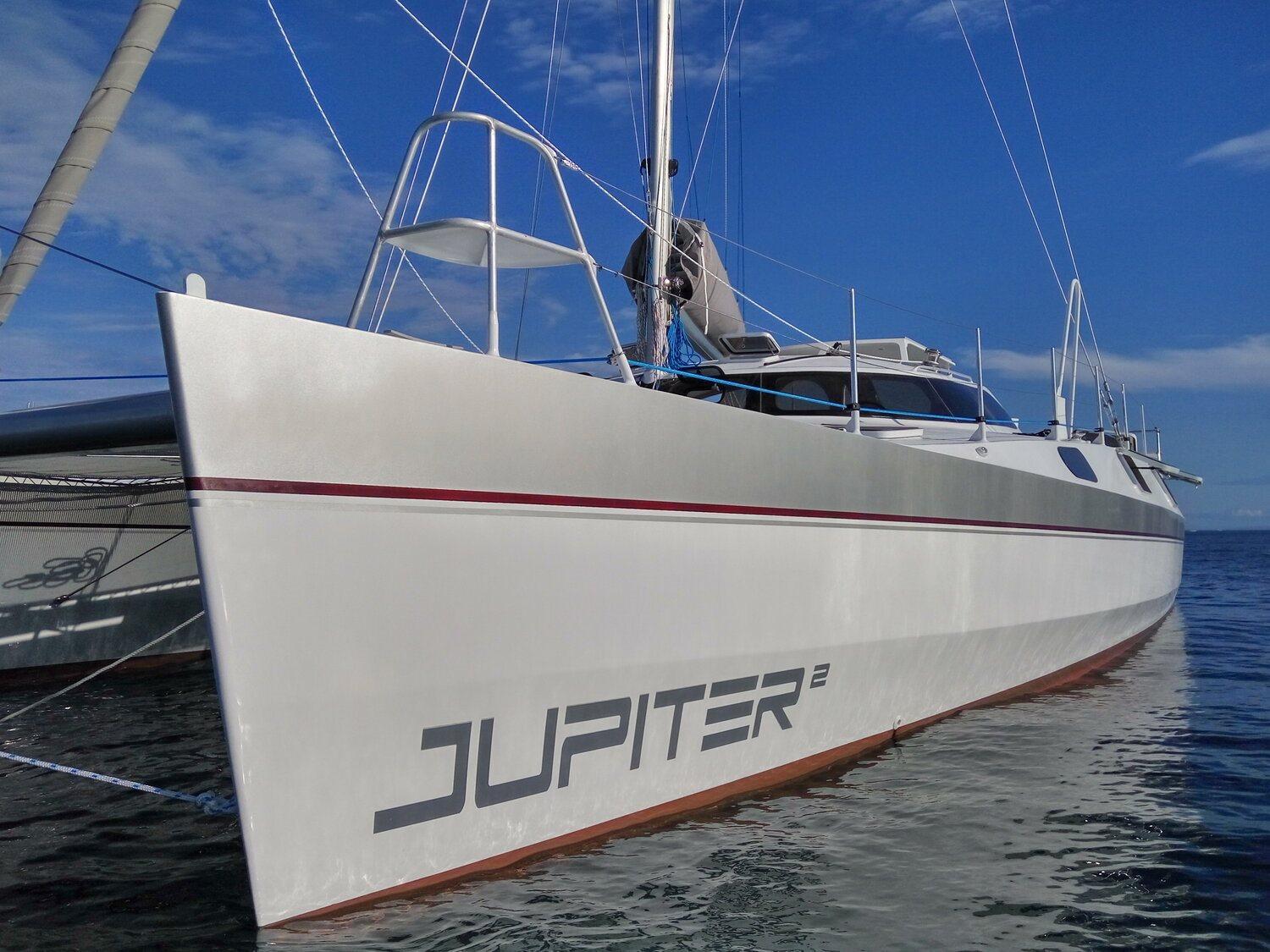

• Hulls are 4mm 5083 aluminium.
• Cabin top, decks are 3mm 5083 aluminium.
• Structural Hull, Bulkheads, Main Deck, Superstructure constructed using certified (DNV or similar class) marine grade 5083 aluminum.
• Designed by Tim Mumby.
• Propeller Shaft Stern Tube Rudder Shaft Tube Fully welded
• Thru hulls for S/W cooling and ancillary supply Overboard discharges integral, welded

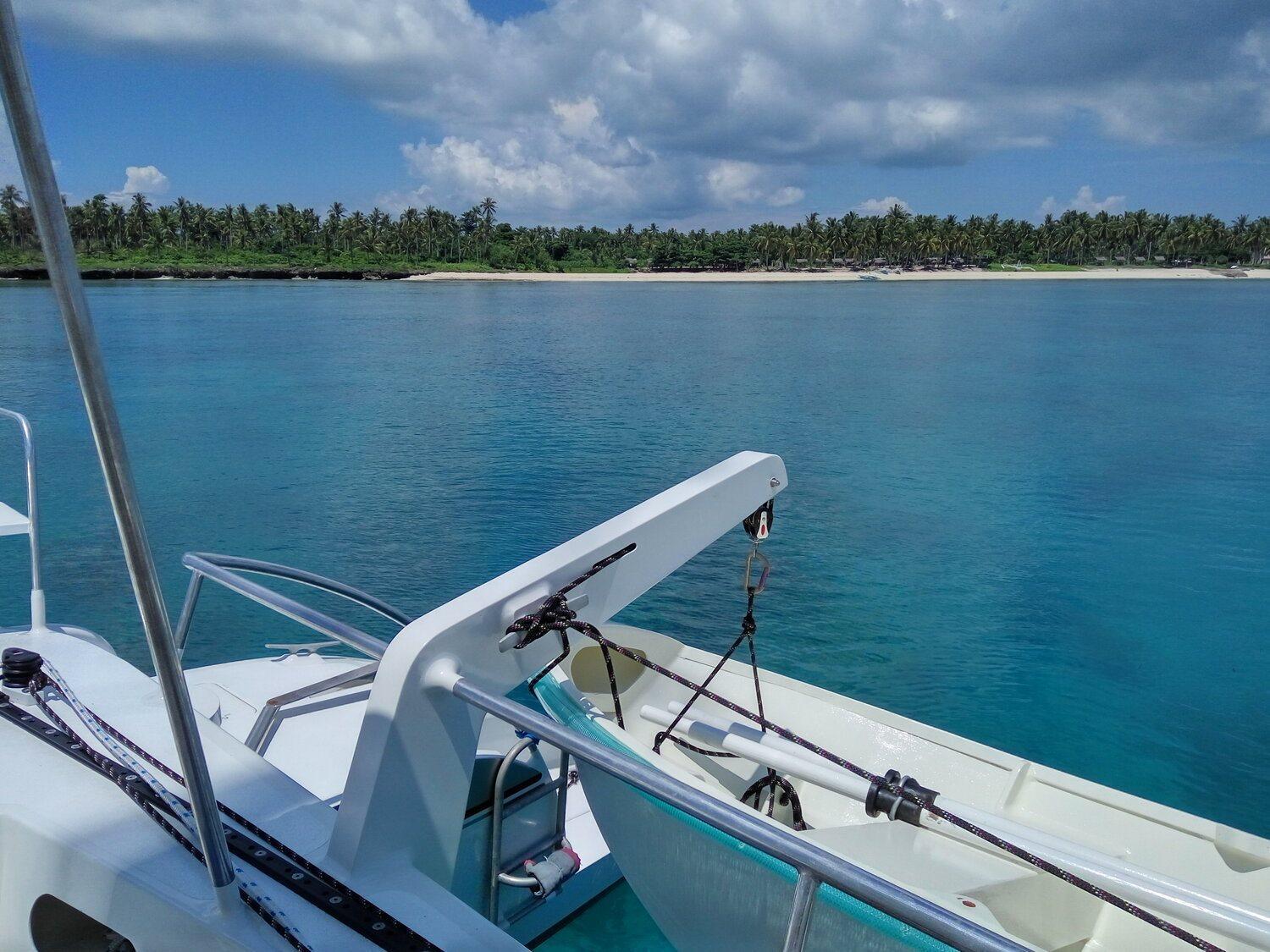

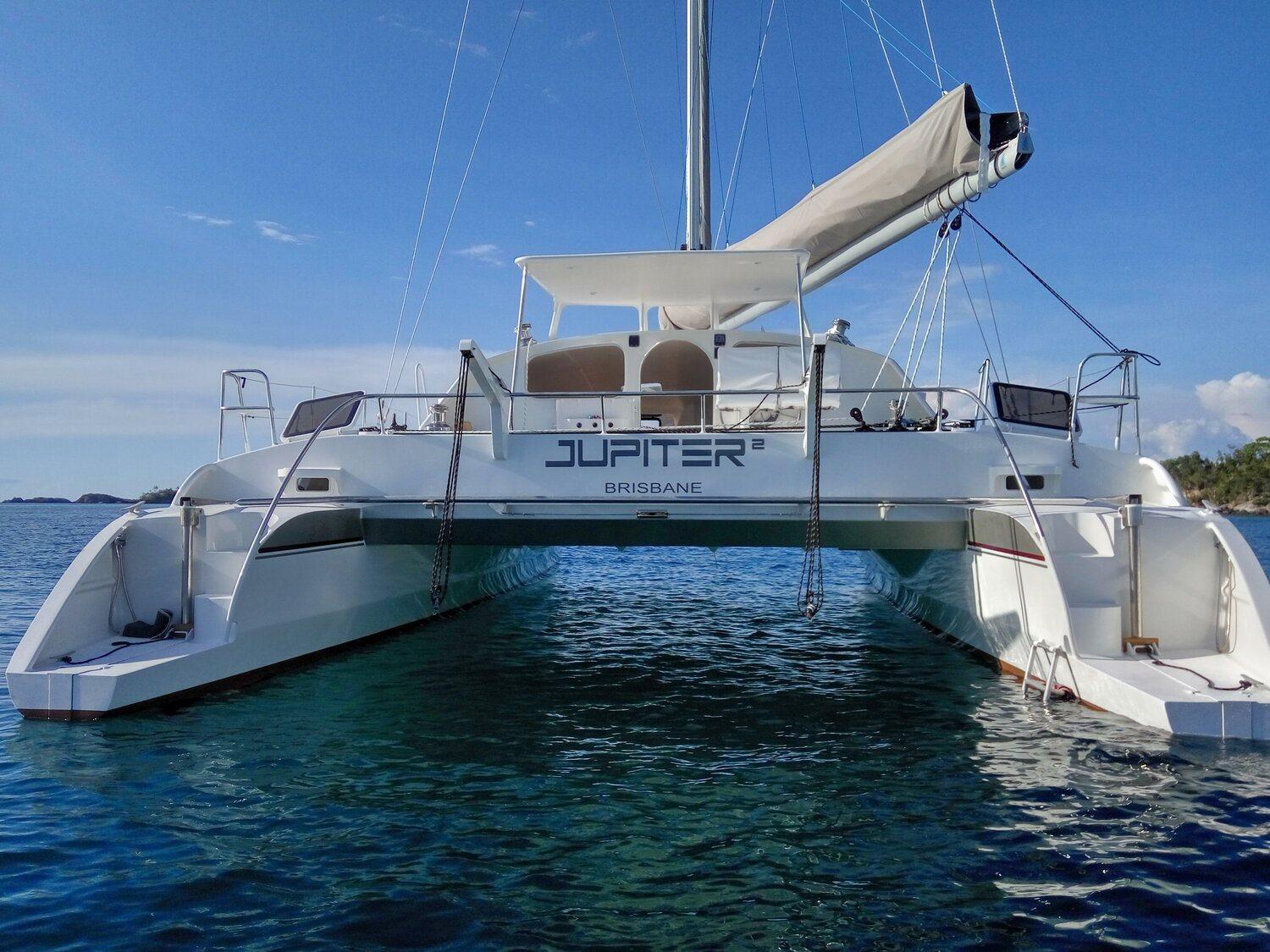

• Davit to launch and retrieve tender

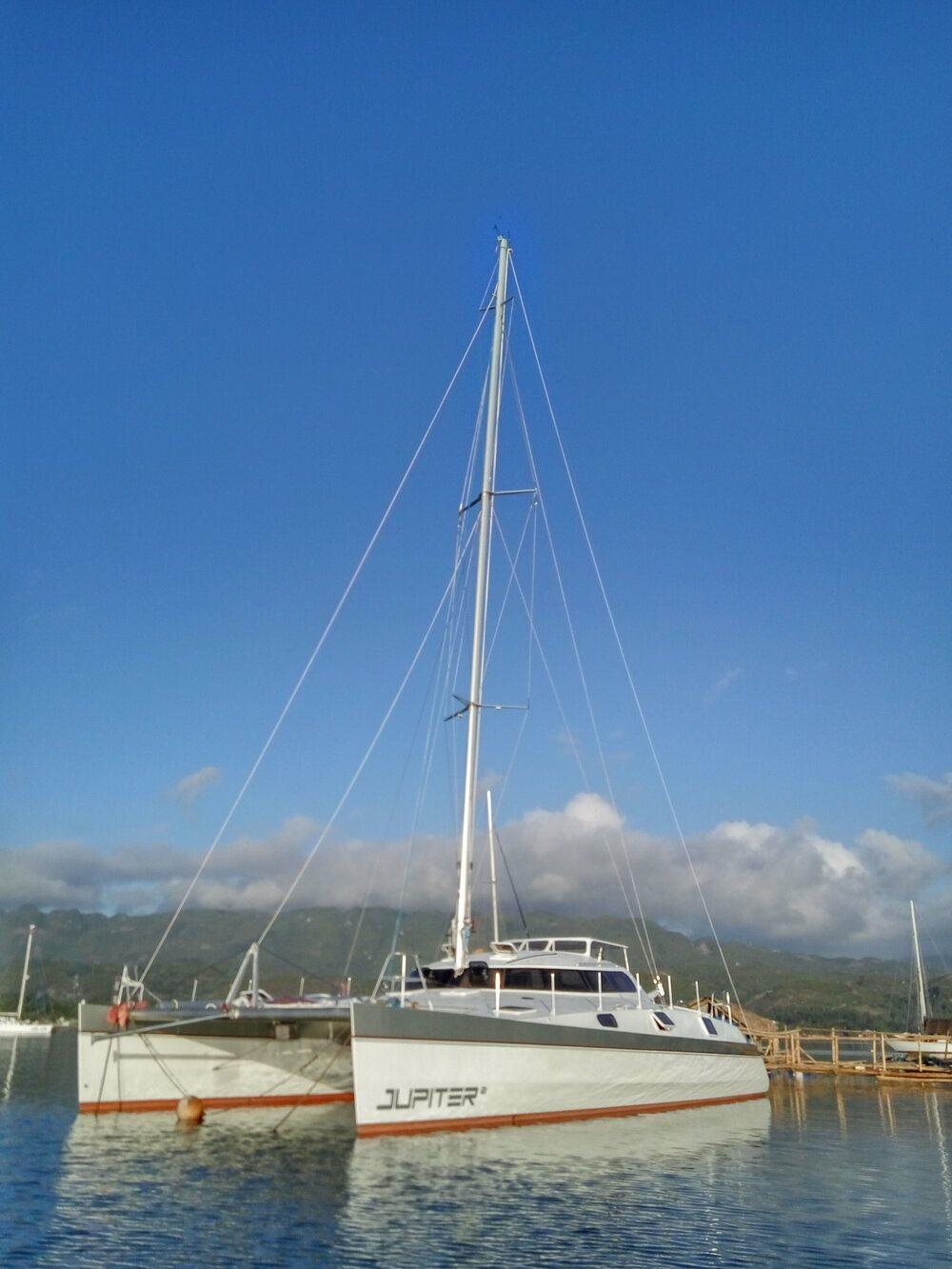

• Mast and rig AllYacht Spars mast, boom, rigging, running rigging and halyards.
• AllYacht Spars Headsail foils package.
• Mainsail traveller system
• Deck Layout and Gear: 3 m radial track behind cockpit with Lewmar or similar mainsheet traveller and 2 x 40ST self-tailing winches.
• Primary winches 2 x 46ST.
• Mast winches 2 x 40ST.
• Halyards, outhaul etc are also handled at the base of the mast.

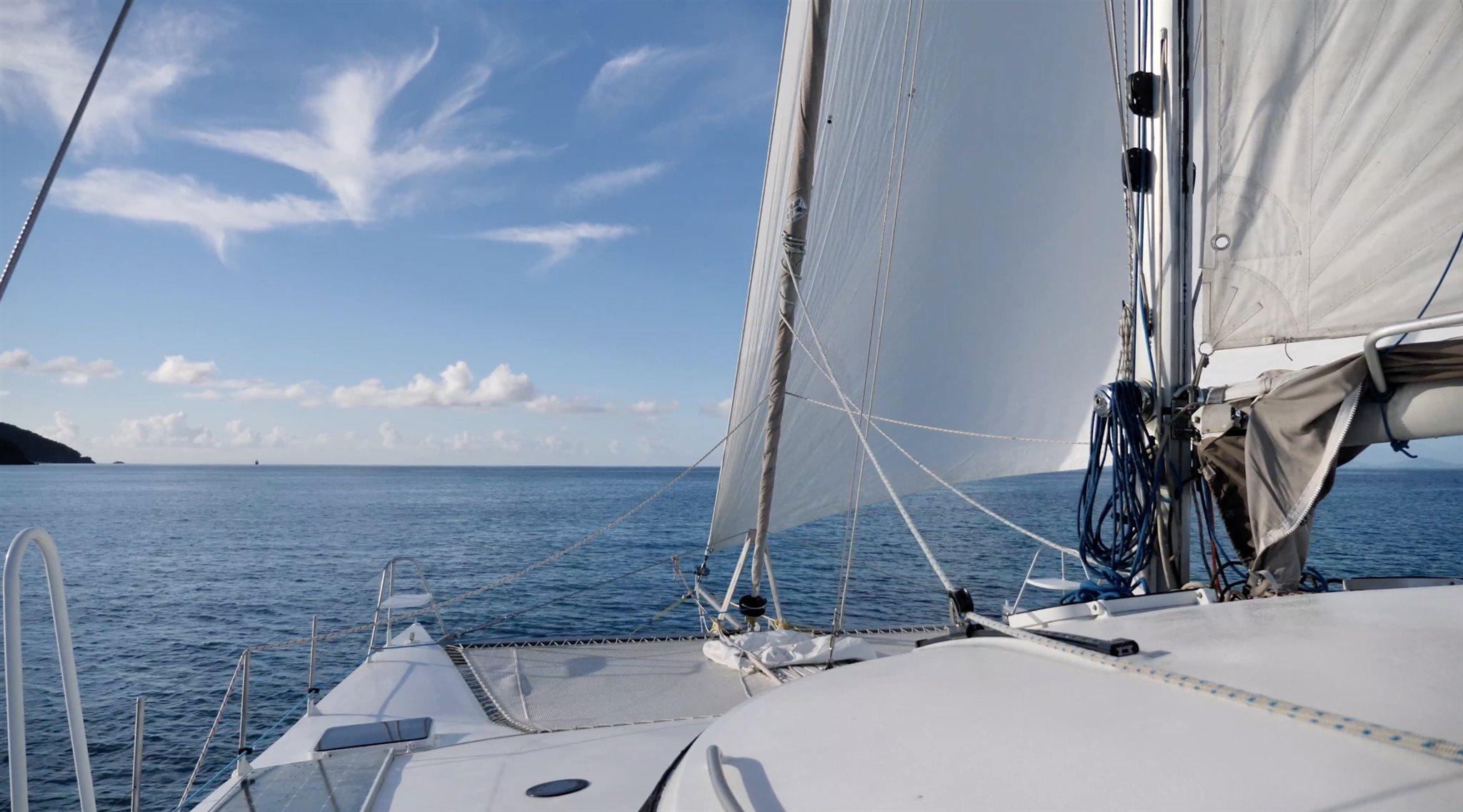

• Roller furling on jib.
• Standard Lewmar or similar deck equipment fitted for jib and screecher furling.

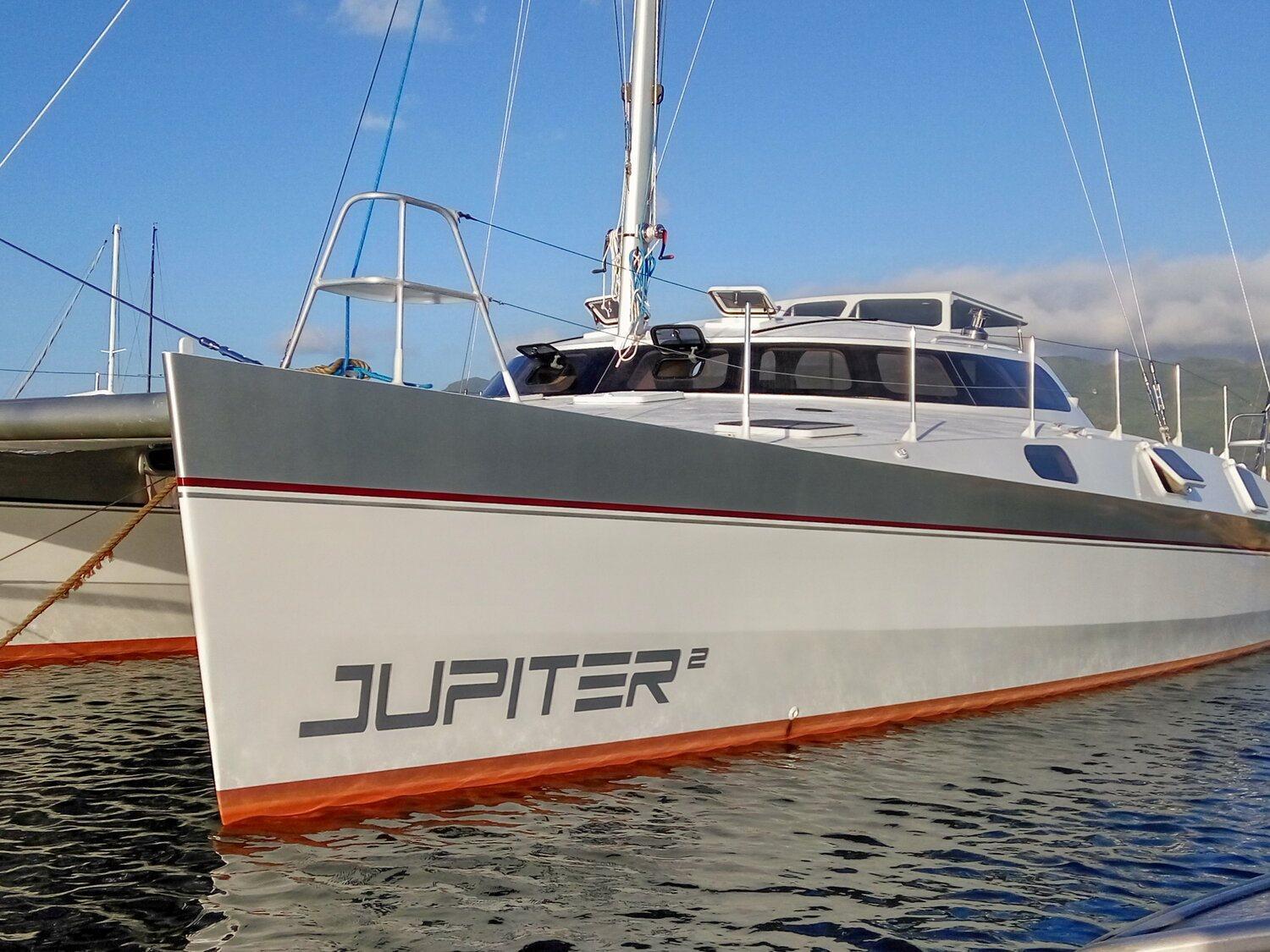

• Aluminum forward beam.
• Aluminum pulpit and pushpit rails

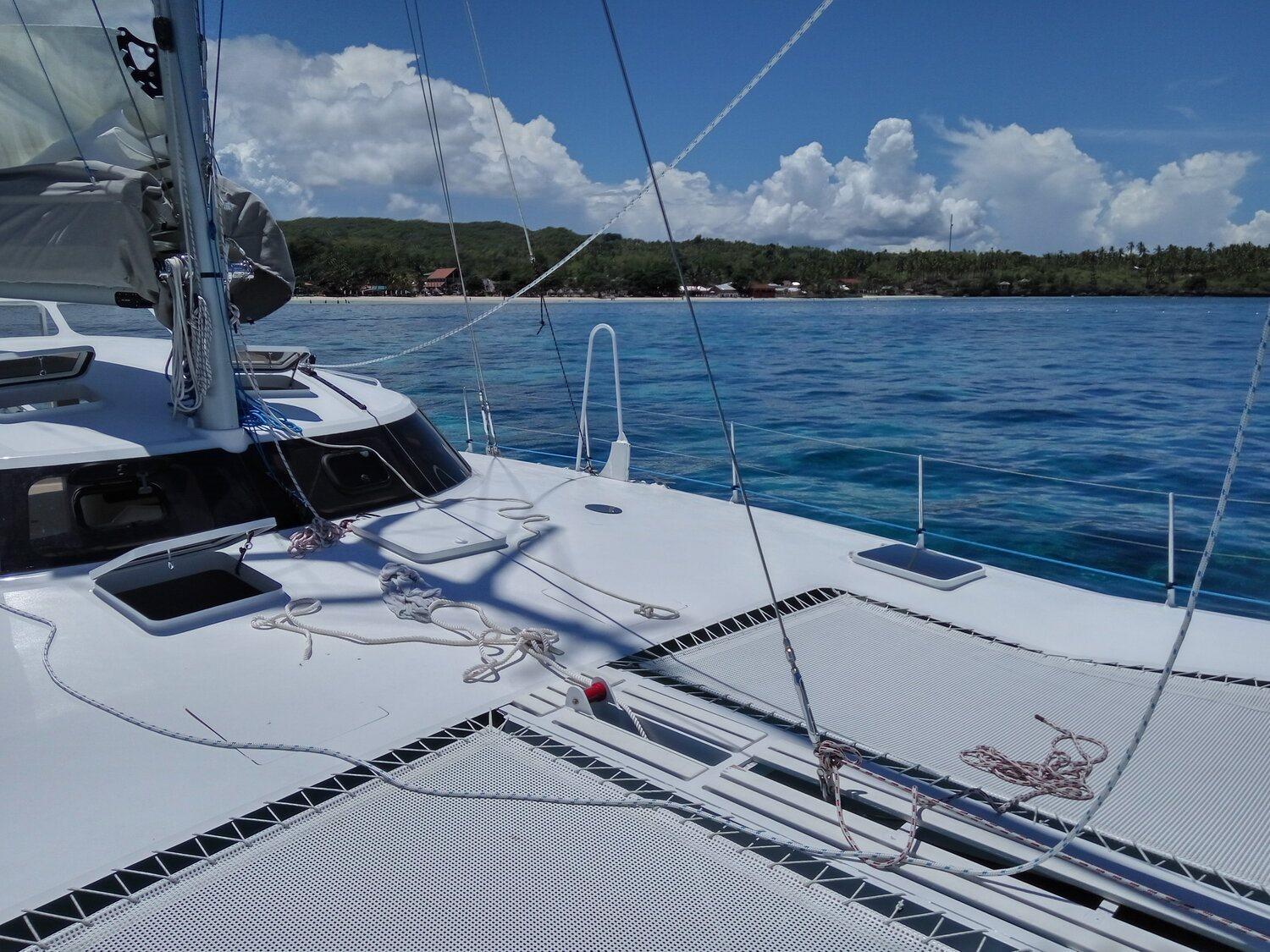

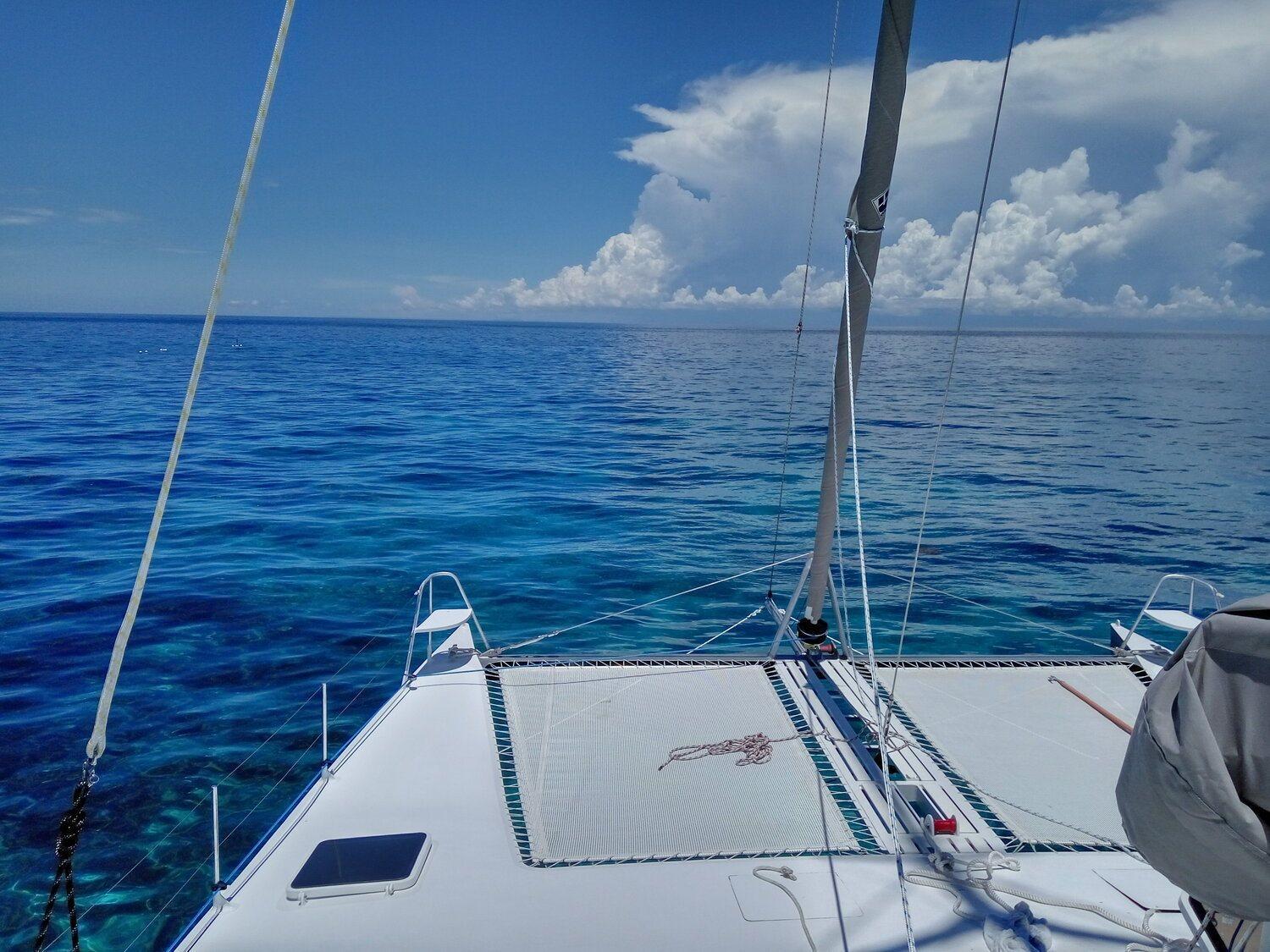

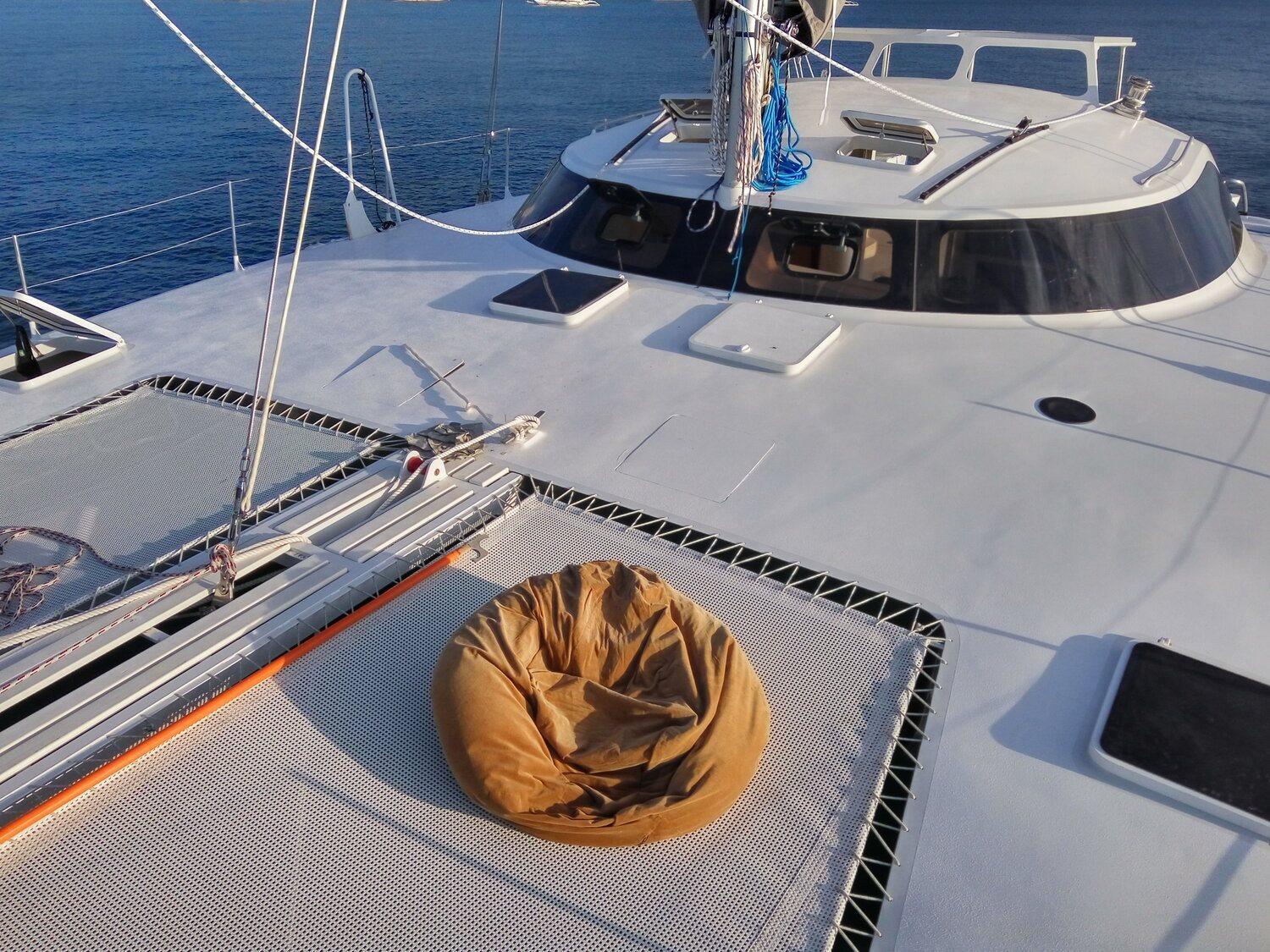

• Heavy Duty PVC Mesh (10mm squares) Trampoline

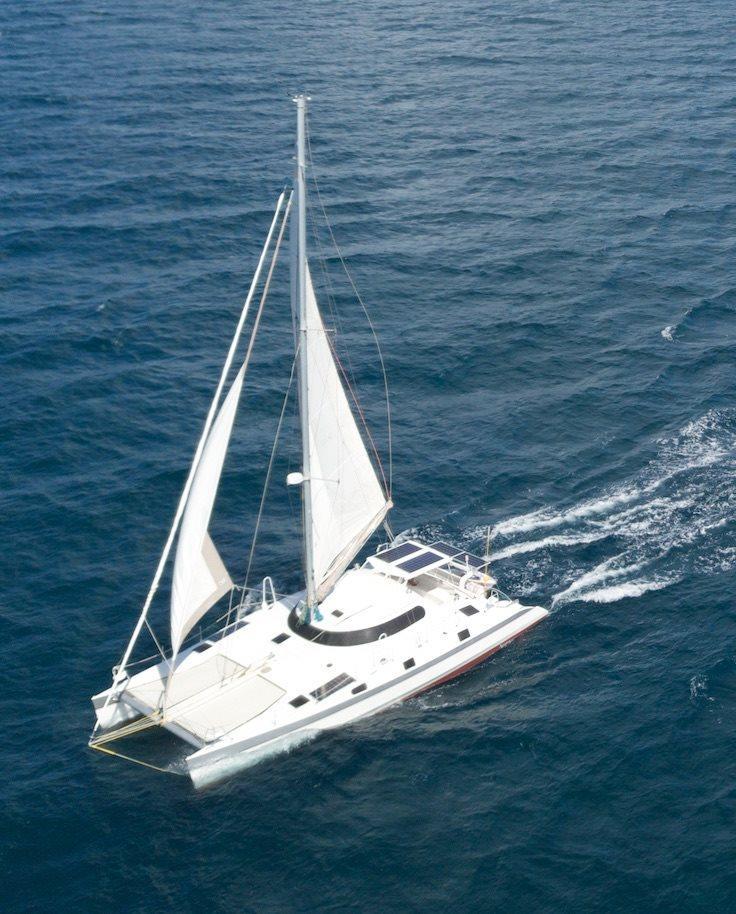

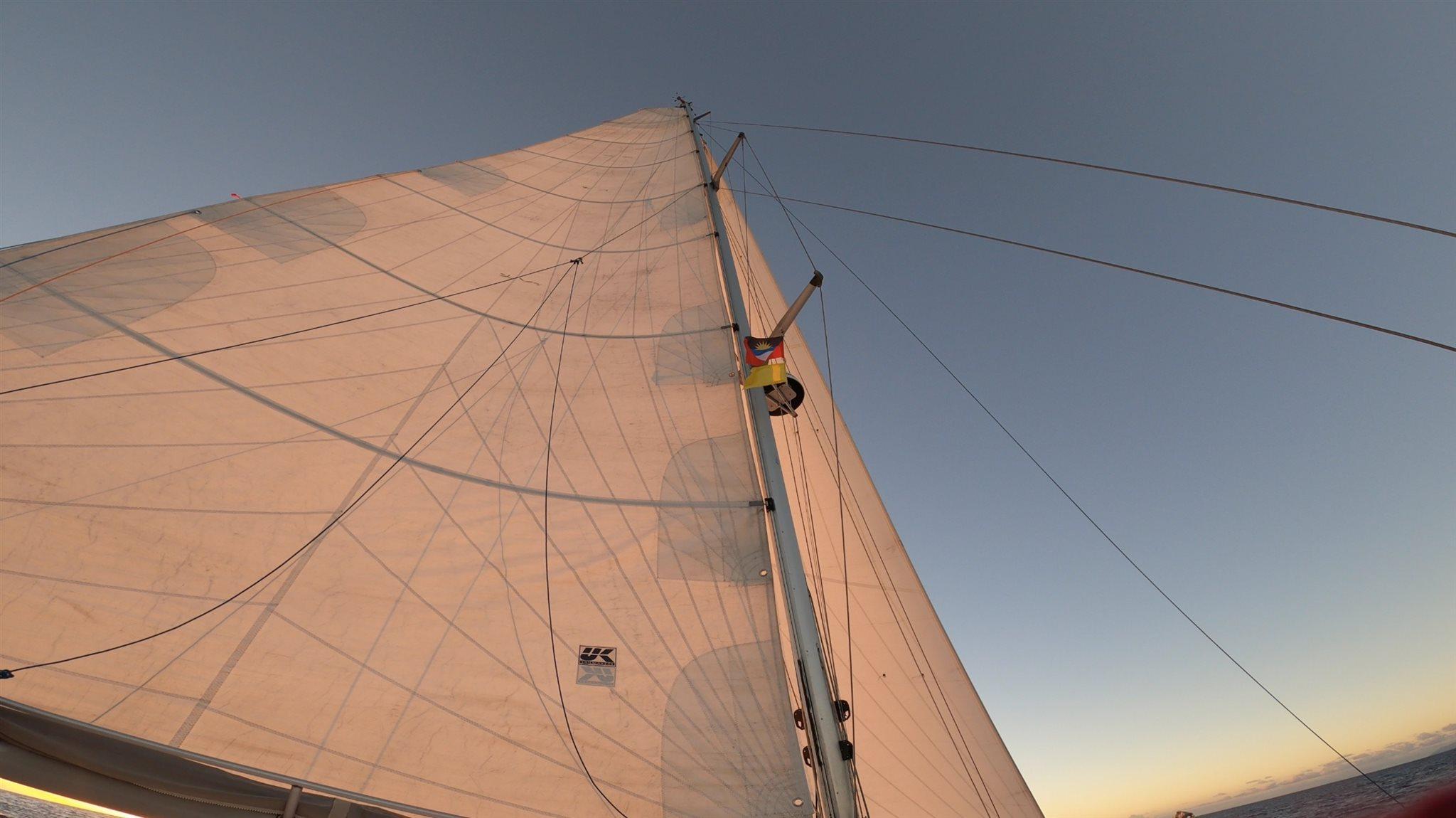

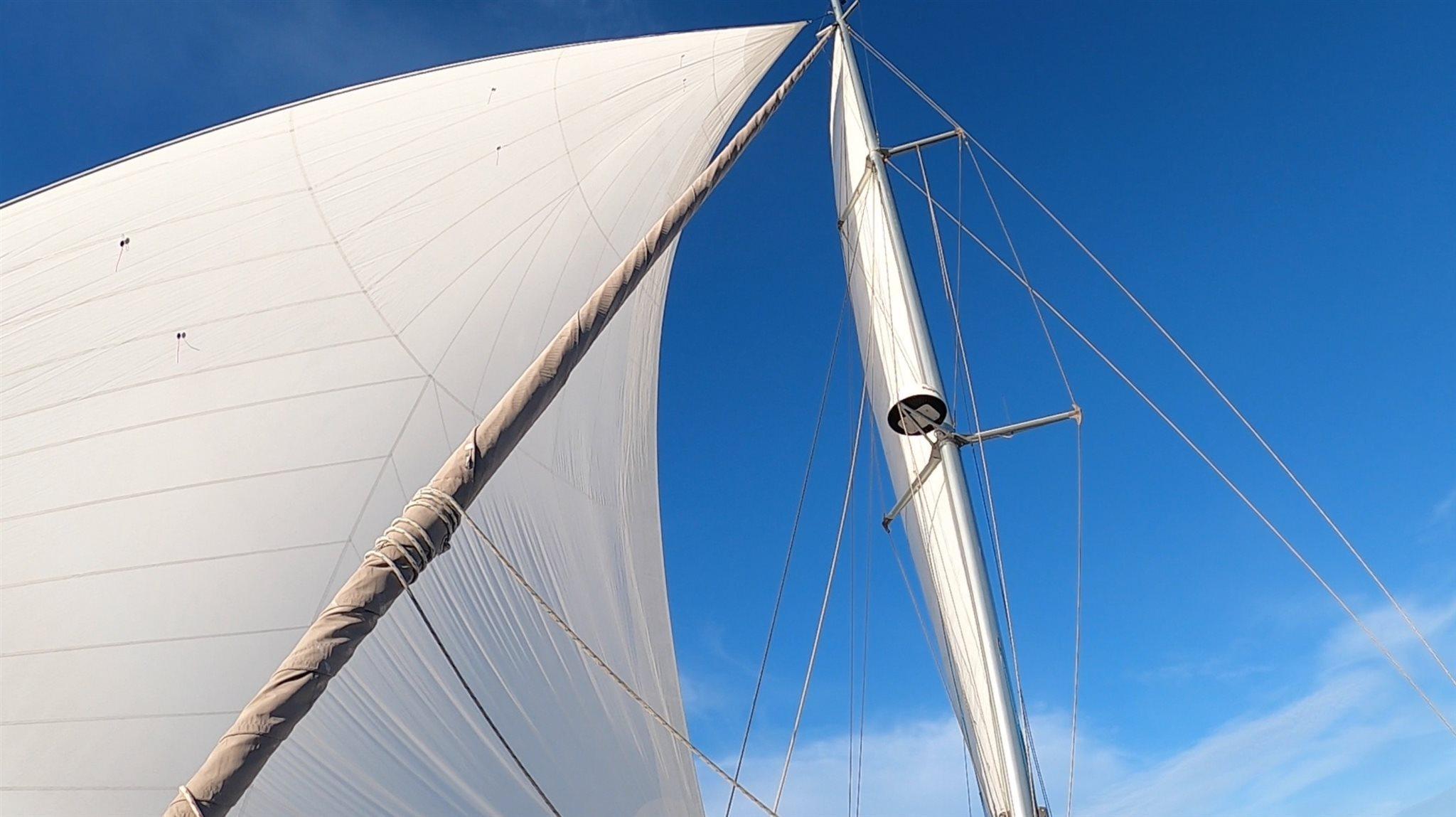

• Sails Mainsail Offshore Fully Batten Measurements TBA : Area 79 m2 10 oz US Dacron Crosscut with Twin Ply Leech Webbing on batten pockets both sides 3 reefs, flying foot, Overhead Leechline PNP Batten Receptacles included Battens and Battcars included
• Furling Headsail Offshore Measurements TBA : Area 48 m2 10 oz US Dacron Crosscut UV Cover Sunbrella Luff Foam
• Asymmetric Spinnaker Offshore Measurements TBA : Area 145 m2 1.5 oz Nylon FullRadial Cut Spinnaker Sock included 3 Colours included Stand Sailbag
• Staysail Offshore 10 m2 / 6 m2 with hanks on 10 oz Dacron Storm Orange Crosscut
• Hull Finishing Primer- Epoxy- Maestria, 2 coats interior & exterior
• Fairing Compound Paint- Enamel, Maestria, 2 coats, yacht finish
• Antifouling paint Jotun 2 coats
• Zincs- Bolt on Type- 4 Minimum
• Saloon Door to Cockpit- Weatherproof hinged aluminum commercial door with Window - Seamac
• Windshields- 10 mm clear safety glass
• Windows- tempered 6mm glass tinted 4 opening in Salon, storm covers Window Screens on all opening windows in salon
• Deck hatches built per plans or Lewmar or similar manufacture
• Tanks, Piping & Pumps Calorifier- immersion heater?
• Grey water Tank - 200 Gal Fiberglass
• Sewage Tank - 60L aluminum
• Fresh Water Tanks 2 - aluminum 500L Total
• Diesel Fuel Tanks - 2 at 185L and 470L Diesel Fuel Piping
• Fresh water piping and fittings Shore Water Supply Fitting Accumulator Pressure Tank Salt Water piping PVC/drains Through hull fittings – welded aluminum Seacock Valves – Marelon Sea Strainers Check Valves Tank Vents Tank Fill Plate s/piping Tank monitoring system
• BEP Marine Hydraulic Steering Lines/helm pump, Seafirst
• Bilge Pumping- Manual Amazon Bilge pumps-electric with float switches and control panel, Jabsco Salt Water washdown Pump, Jabsco Shower Drain Pump with Float Switch, Rule Fresh water Pressure Pump, Jabsco 38LPM, accumulator tank Grey Water Discharge Pump with Y-Valve Waste Macerator/Discharge Pump with Y-Valve Waste Piping, low odor Waste pump-out fitting
• Mechanical Propeller- 2 or 3 blade – Gori or similar folding x 2 Propeller Shaft Coupling x 2 Propeller Shaft- 38mm minimum 316 L standard SAE Taper x 2 Cutlass Bearings, Johnson x 2 sets Dripless Shaft Seal, Duramax or Deep Sea x 2 Spur Line Cutter on Propeller Shafts
• Main Diesel Propulsion 2 x FNM 13HPE 40HP@4,000rpm Marine gear 2 x Hurth ZF or Technomarine
• Main Engine Exhaust Pipes Engine Space Ventilation Blowers - 1 inlet, 1 exhaust Main Engine Mufflers - Halyard or similar Parts Locker
• Rudders - per plan Rudder Stock- S/S 316L Rudder Stock Packing Box Rudder Bearing/Upper Rudder Bearing/Lower Steering per plan
• Battery Ventilation System Engine Room Ventilation Ducts Engine Room Soundproofing
• Electrical DC-AC Inverter/Charger-Victron 3000W SOLAR PANELS - 8 Panels at 365W each. 2880 watts
• Mechanical Engine Starting Battery- 2 x 8D Lifeline House Batteries- 6 x 8D Lifeline Battery Boxes with Covers for all battery sets Battery Switches Power management system and battery monitoring, Victron 50 Amp Shore Power Cord Reel
• Electrical Wiring- Tinned Copper- Marine Grade- Ancor- color coded per ABYC Electrical Panel 230/120 VAC / 24VDC with Ammeters & Voltmeters
• Lighting System Wiring 12 VDC Light Fixtures- Quartz Ceiling/LED Light Fixtures- Fluorescent LED Light Fixtures- Weatherproof LED Light Fixtures- Courtesy LED Light Fixtures- Reading Lights LED Sockets 230/120 VAC in each cabin & Passageway Sockets 12 VDC- Cockpit and Saloon Light Switches- Wall type for cabin & exterior lighting PVC Conduit for all power wiring Radio/TV Wiring Engine Alarm System Electronics Client Supply
• Main Deck Equipment 12VDC Windlass/Capstan with local control at Bow Waterproof hatch for Dual Chain Locker Bow Roller, Anchor 60lb CQR, chain 3/8” High Test, rope 3⁄4” Hawse Plates Stainless Steel Bollard Mooring cleats welded on aluminum Vents Escape/Ventilation Hatch- Lewmar or similar Handrails- Welded 32mm aluminum with 38mm Stanchions H/C Fresh Water Cockpit Shower Salt/Fresh Water Washdown Taps- Bow & Stern Deck Filler Fresh Water- Port & Starboard Deck Filler Diesel Fuel- Port & Starboard

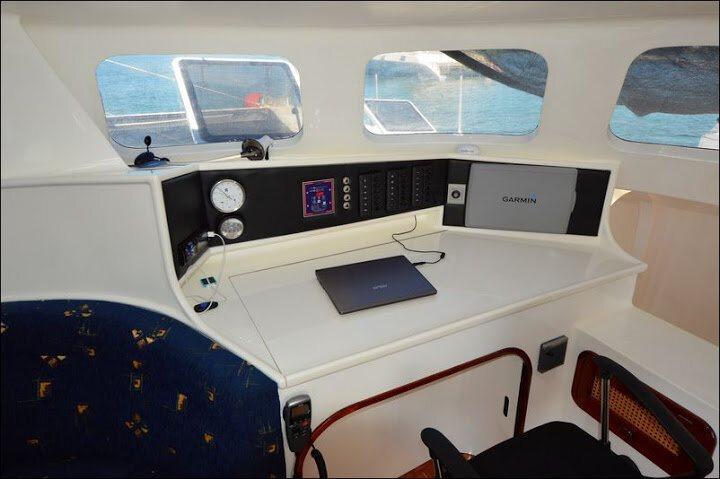

• Cockpit Equipment Navigation Anchor Lights Red/Green Side lights Mast head light Flood lighting on mast Engine Instrument Panel Stainless Steel Destroyer type steering wheel Engine Throttle/Transmission Controls- Cable, Morse, twin engine Engine Tachometer – Digital / Analogue Engine Water Temperature Engine Oil Pressure Engine Oil Temperature Engine Ammeter Engine Hour Meter Compass- Binnacle Mount Rudder Angle Indicator Pilot’s Seat Passenger Seat Dinette Seating /Storage Pedestal Table Gear Lockers Access Ladder- Stainless & Teak Air Horn with compressor Rigging for Flags Welded aluminum Railings

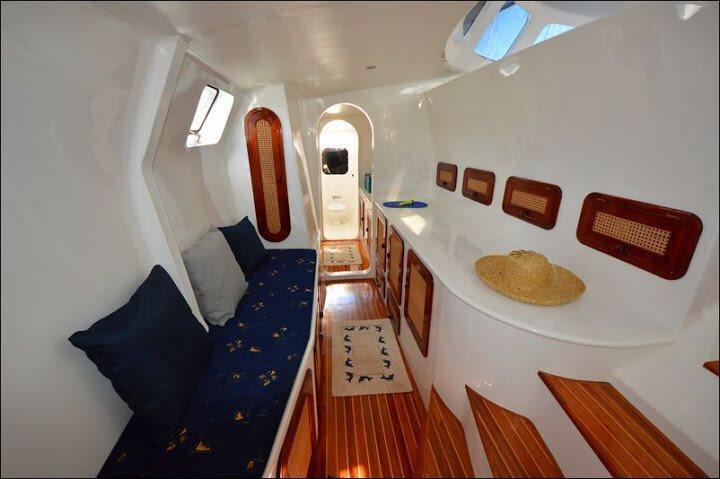

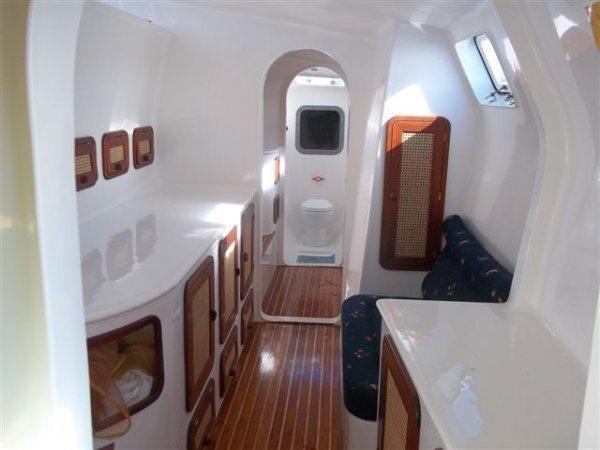

• Interior Finish Marine plywood or Nidacore subfloor- painted Composite panel for walls and ceilings Solid timber – Trim Floor coverings Cork Flooring – Galley GRP moldings for heads/bathroom Interior Doors & quality hardware Upholstery/Cushions

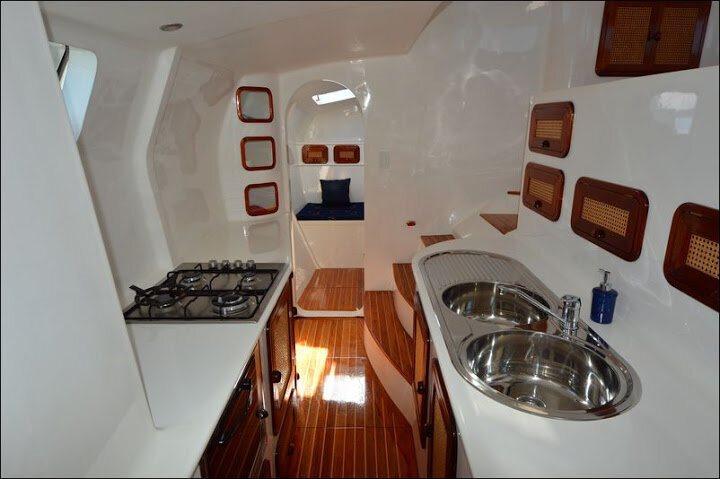

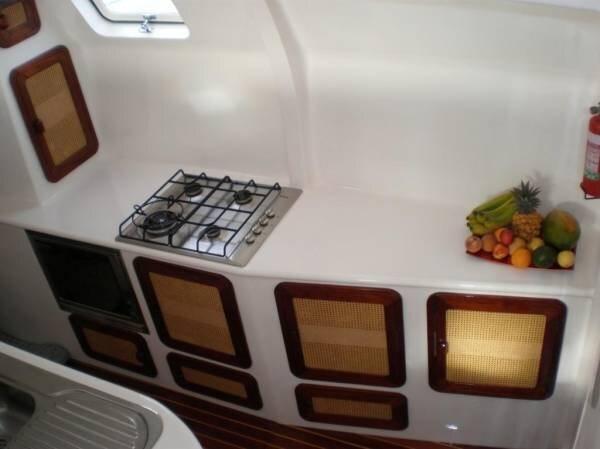

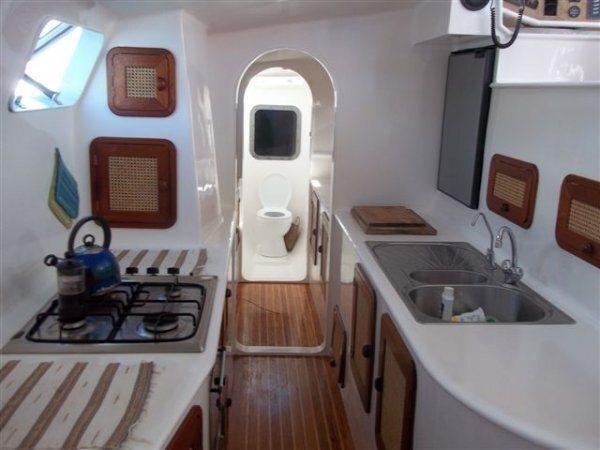

• Galley Refrigerator/freezer standalone 10 cu ft Chest freezer 3-Burner ceramic cook top electric/gas 230/120 VAC Outlet, 4 gang Convection/Microwave oven Corian or other Galley Counter Base Cabinets Galley Overhead Cupboards Stainless Steel Double Sink Faucet with pull-out sprayer Cutting Board

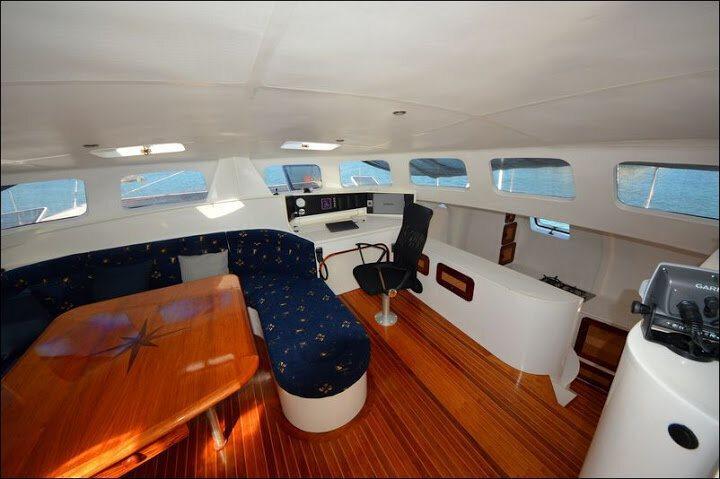

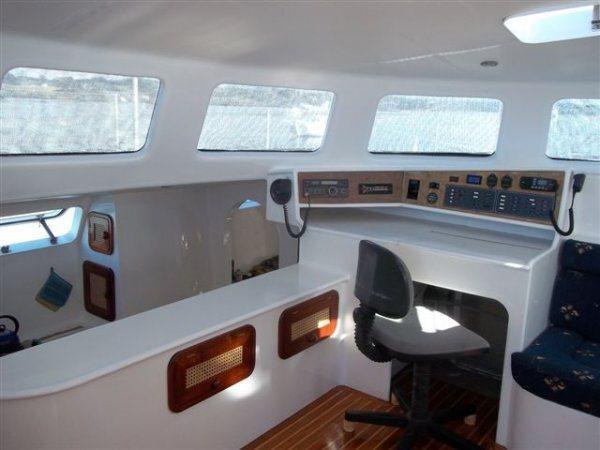

• Saloon/Lounge L-Shaped Dinette Table- Converts to Bed Seating as per plan Safety grab bars, fiddles placed at practical places Radio/TV Outlet 230/120 VAC Outlet, 2 gang
• Master Stateroom Bed Frame- Queen size Hanging lockers lined, with shelf & light Bedside Table Chest of drawers 230/120 VAC Outlet Reading lights Recessed Overhead LED lights with wall switch Radio/TV Outlet
• Forward Cabin [port and starboard] Double bed Hanging lockers- lined with shelf & light Desk/drawer unit 230/120 VAC Outlet Reading light Recessed Overhead LED lights with wall switch Radio/TV Outlet
• Heads Porcelain Electric head, Tecma [household size] Shower GRP Vanity with Corian or other countertop & S/S sink Medicine Cabinet with Mirror & Storage Ventilation Blower Shower Faucet Shower Head Shower Curtain Soap Dish / Toothbrush Holder Towel Rod to Handrail
• Strength Engine Room Soundproofing Perforated Stainless or Aluminum wall sheathing Aluminum Checker plate Flooring Fluorescent lights with wall switch 230/120 VAC Outlet, 2 gang Safety Equipment Fire Extinguishers
• Additional Electrical and mechanical drawings plus vessel manual
