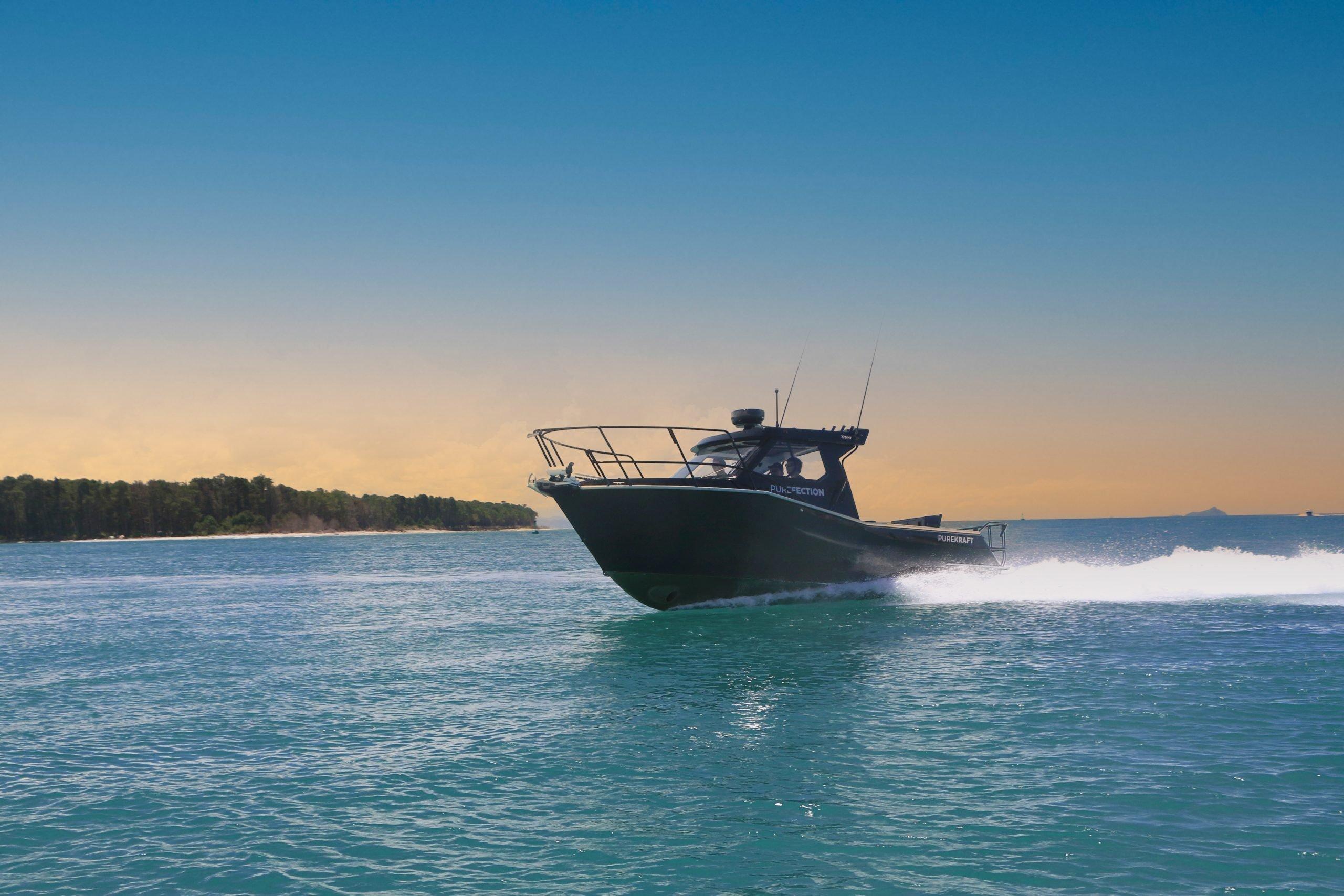

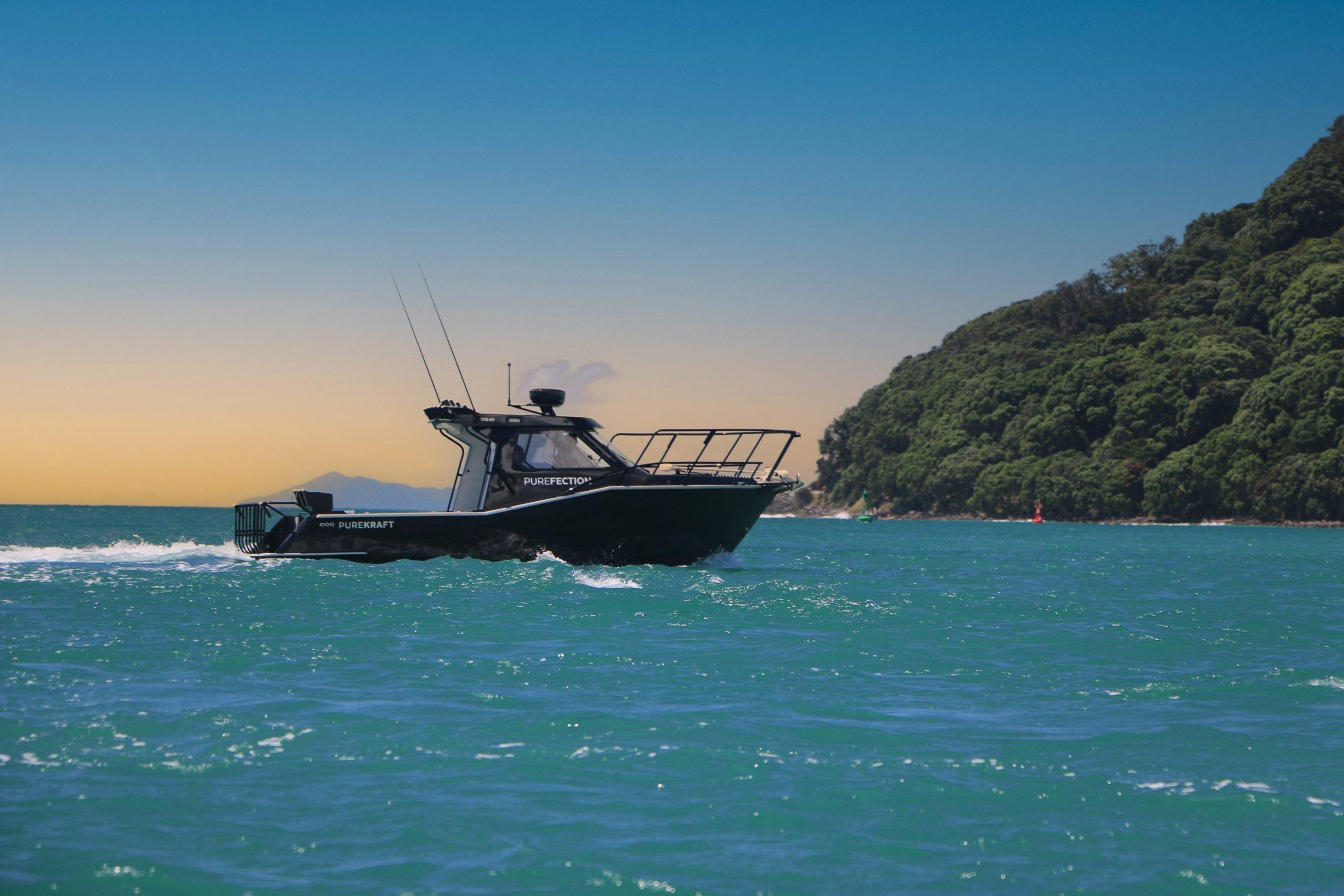

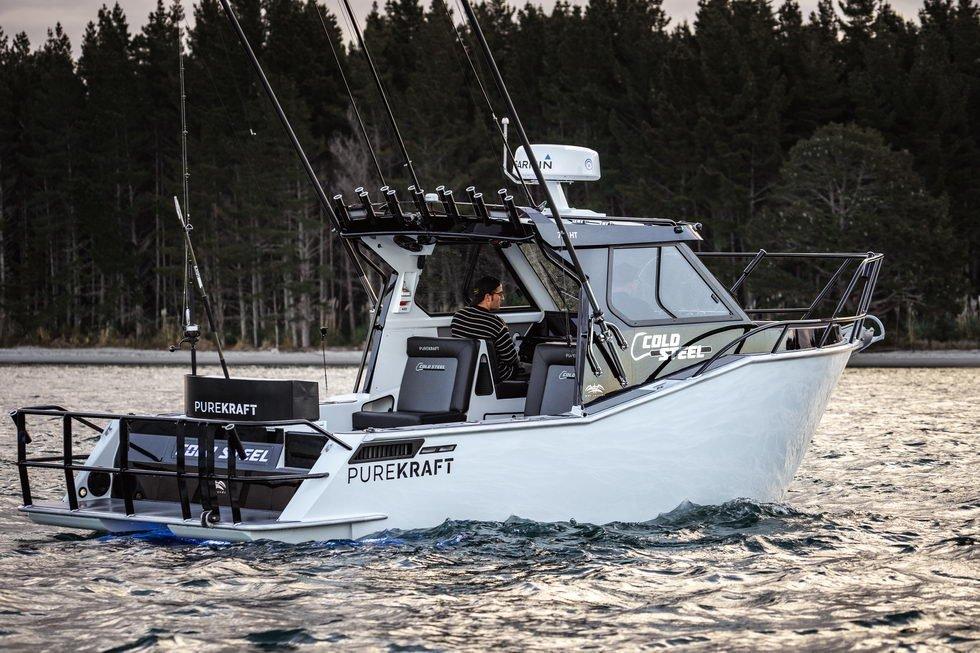

Purekraft Boats 770 HT - Diesel

Details

Length7.9 m
Beam2.58
Draft
Fuel TypeDiesel
Fuel Capacity570 L
Cabins
Heads
Engine Drive Type
Engine
Contact Dealer

Interested in this model? Get in touch with an authorized dealer for more information, pricing, and availability.

Description

A no-nonsense workhorse built for serious offshore fishing missions but with all the creature comforts for extended trips away.

  • Soft riding hull design
  • Curved one-piece windscreen for perfect visibility
  • Large forward cabin for overnighting
  • Slide out lounger seat
  • 4 x tuna tubes
  • Hidden second helm in cockpit
  • Large duckboard
  • Diesel inboard

We are always fine-tuning our designs. Specifications and information is subject to change.

The Purekraft 770 HT (Hard Top) is a large volume long‑range game fishing platform. With up to 570L of fuel and excellent seakeeping characteristics, this boat offers the game fisherman uncompromising comfort, usability, and range to chase down that trophy fish.

The 770 HT is designed for a range of inboard diesels to take advantage of the fuel capacity giving a range rivalled by few.

Specification:

  • Length overall: 7.90m / 25.91ft (Including fairlead)
  • True Hull Length: 7.70m / 25.26ft
  • Beam: 2.58m / 8.46ft
  • Deadrise: 18° at transom
  • Power: 260-300hp Diesel Inboard
  • Fuel Capacity: 400-570L
  • Construction: Aluminium

Scantlings:

  • Hull plate: 6mm 5083
  • Lower Transom: 6mm 5083
  • Topsides: 5mm 5083
  • Hull Structure: 4mm 5083
  • Cabin / interior: 3/4mm 5083/5052
  • Sole / Deck: 4mm 5053
