Overview
Description

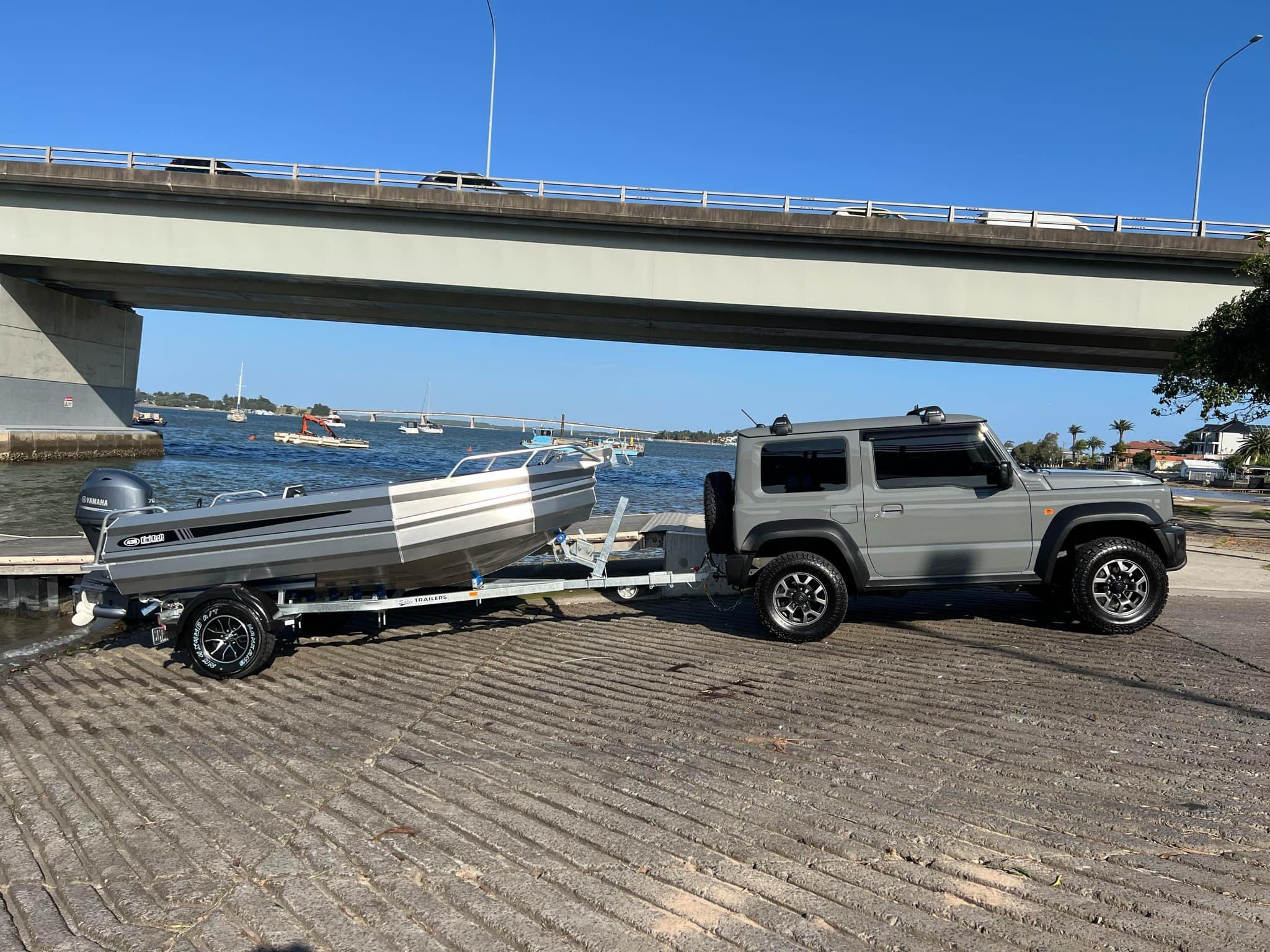

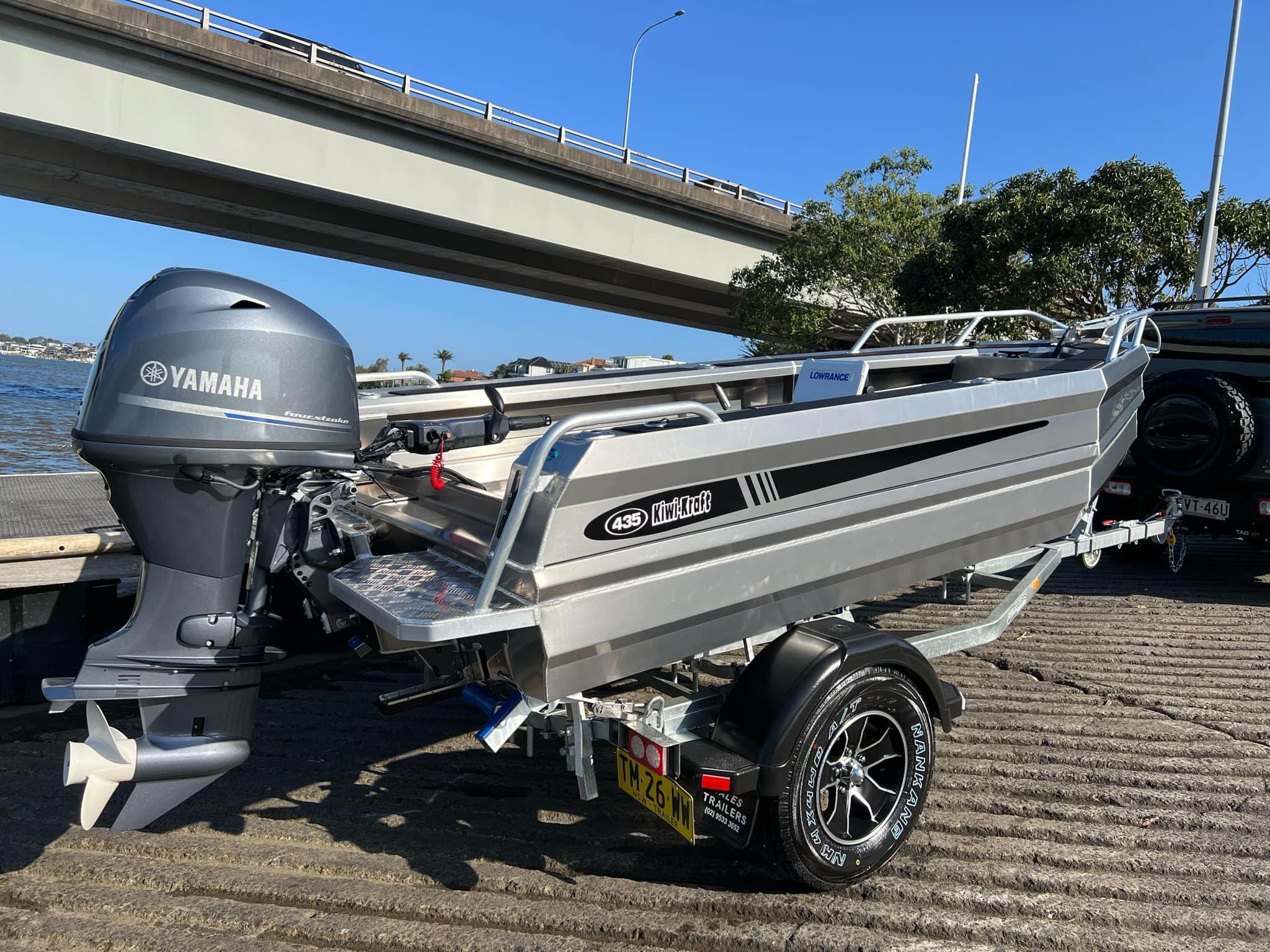

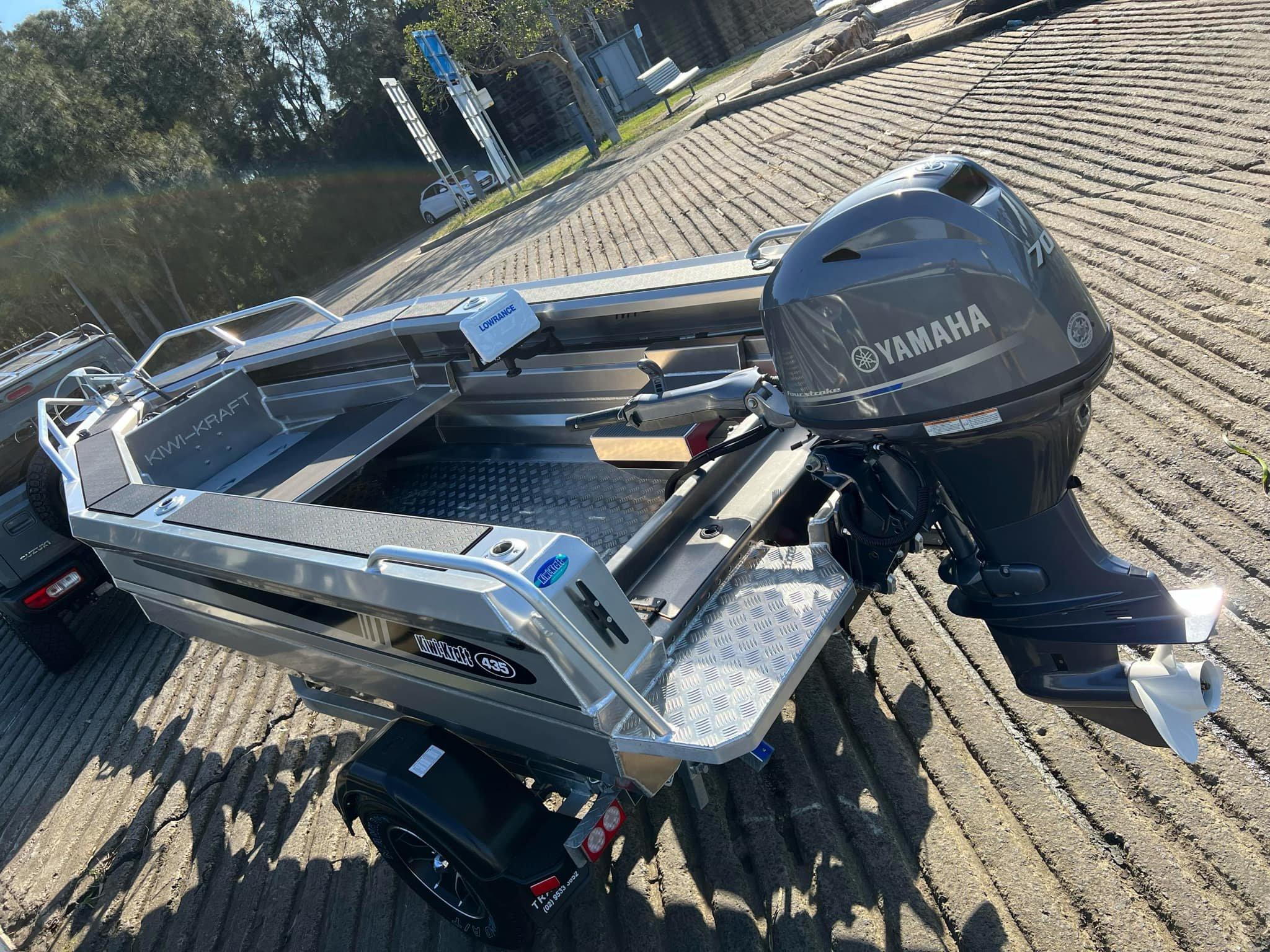

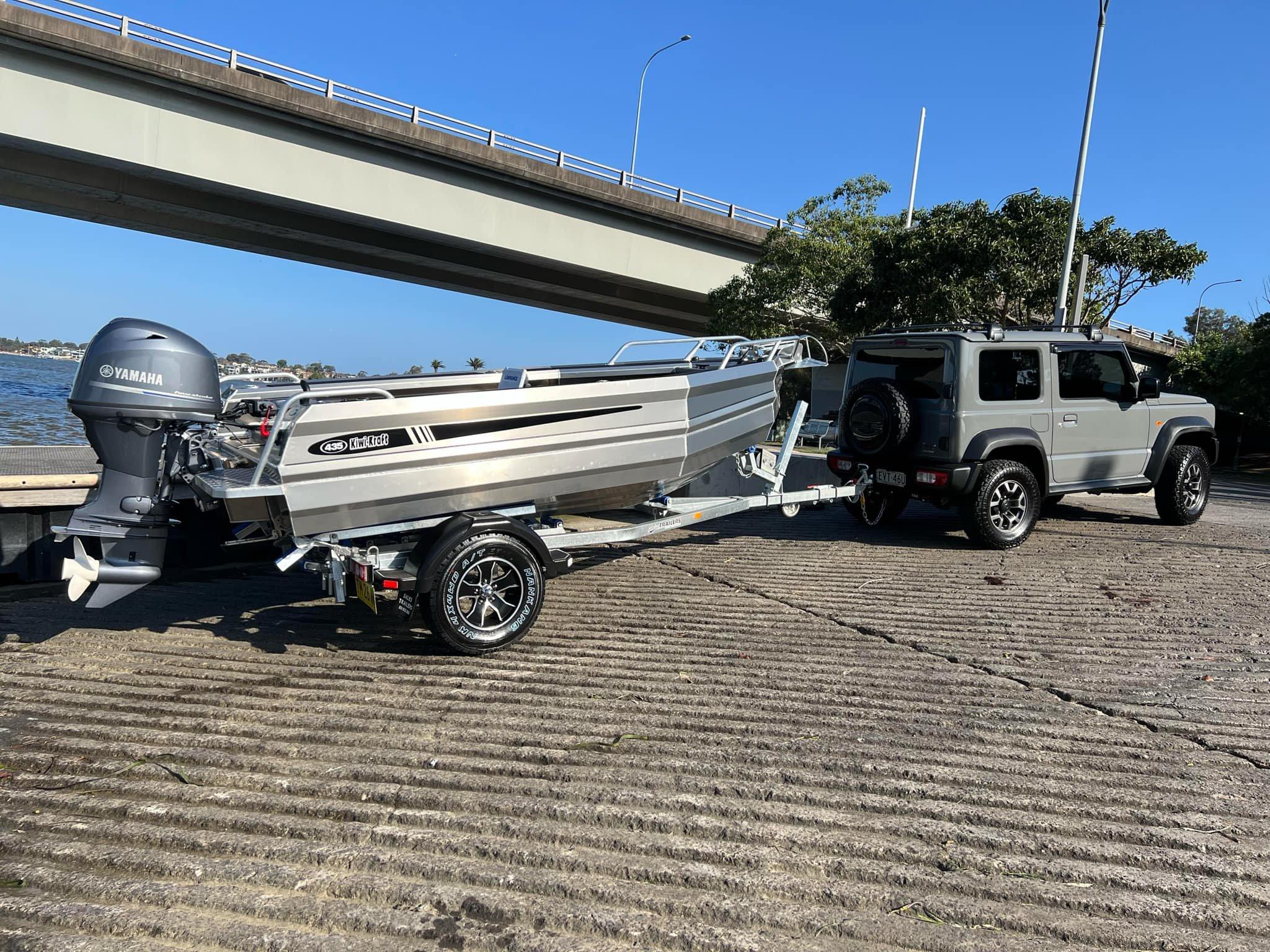

435 KIWI KRAFT DINGHY is a compact aluminium pontoon dinghy designed for inshore and sheltered-water use, offering a stable platform for fishing and general boating. Its 3 mm hull and pontoons with a 4 mm floor provide robust construction and durability, while the 18° deadrise balances ride comfort with at-rest stability. The layout focuses on practical, open space with removable seating, generous storage in the bow seat, and multiple grab rails and cleats for safe and easy handling.
The boat is configured for outboard power up to 60 hp and is rated for up to four people, making it suitable for solo or small-group trips. Standard features include scuppers, outboard pod, swim platforms and rod holders, supporting both utility and recreational use straight out of the factory. A wide range of optional extras — including additional seating, side console steering, bow and grab rails, live bait tank and casting platform — allows owners to customise the 435 Dinghy for different fishing or family boating styles.
Specifications
- LOA: 4350 mm
- Beam: 1760 mm
- Internal beam: 1280 mm
- Deadrise: 18°
- Hull thickness: 3 mm aluminium
- Pontoon thickness: 3 mm aluminium
- Floor thickness: 4 mm aluminium
- Floor to gunwale height: 600 mm
- Maximum horsepower: 60 hp (outboard)
- Maximum capacity: 4 persons
Standard features

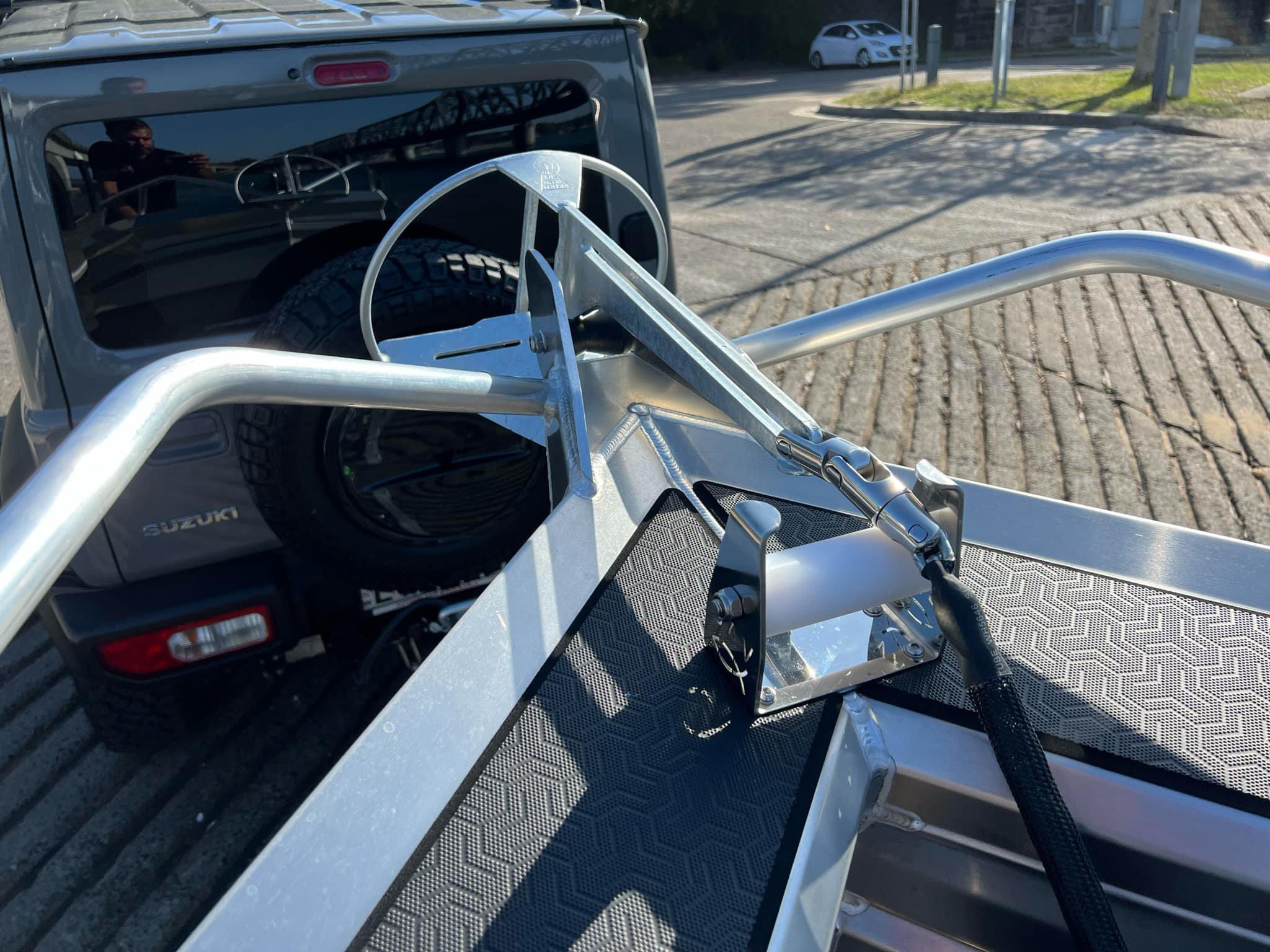

- Front fairlead
- Scuppers
- Single removable seat
- Front grab rails

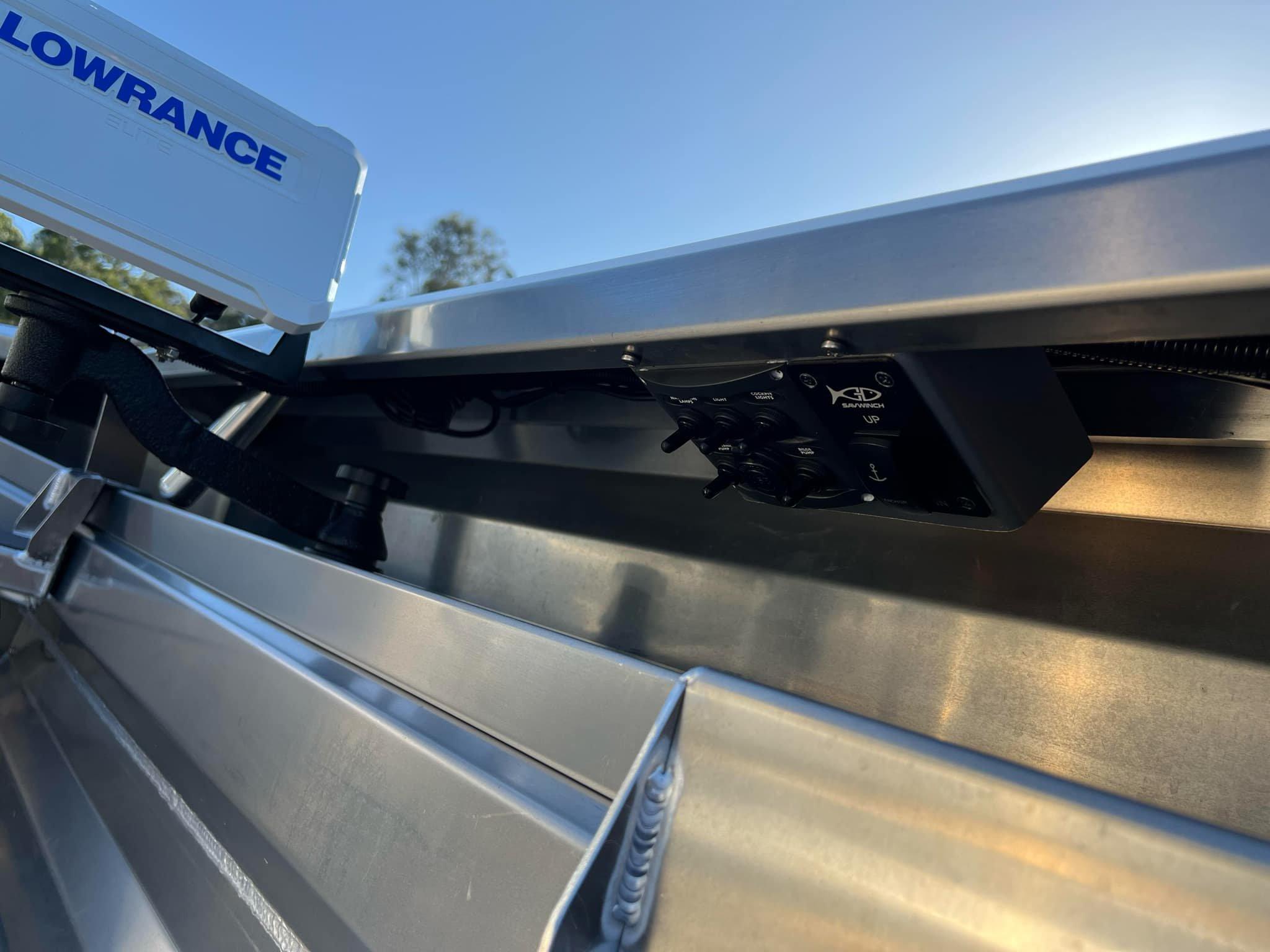

- Internal rail
- Rear cleats

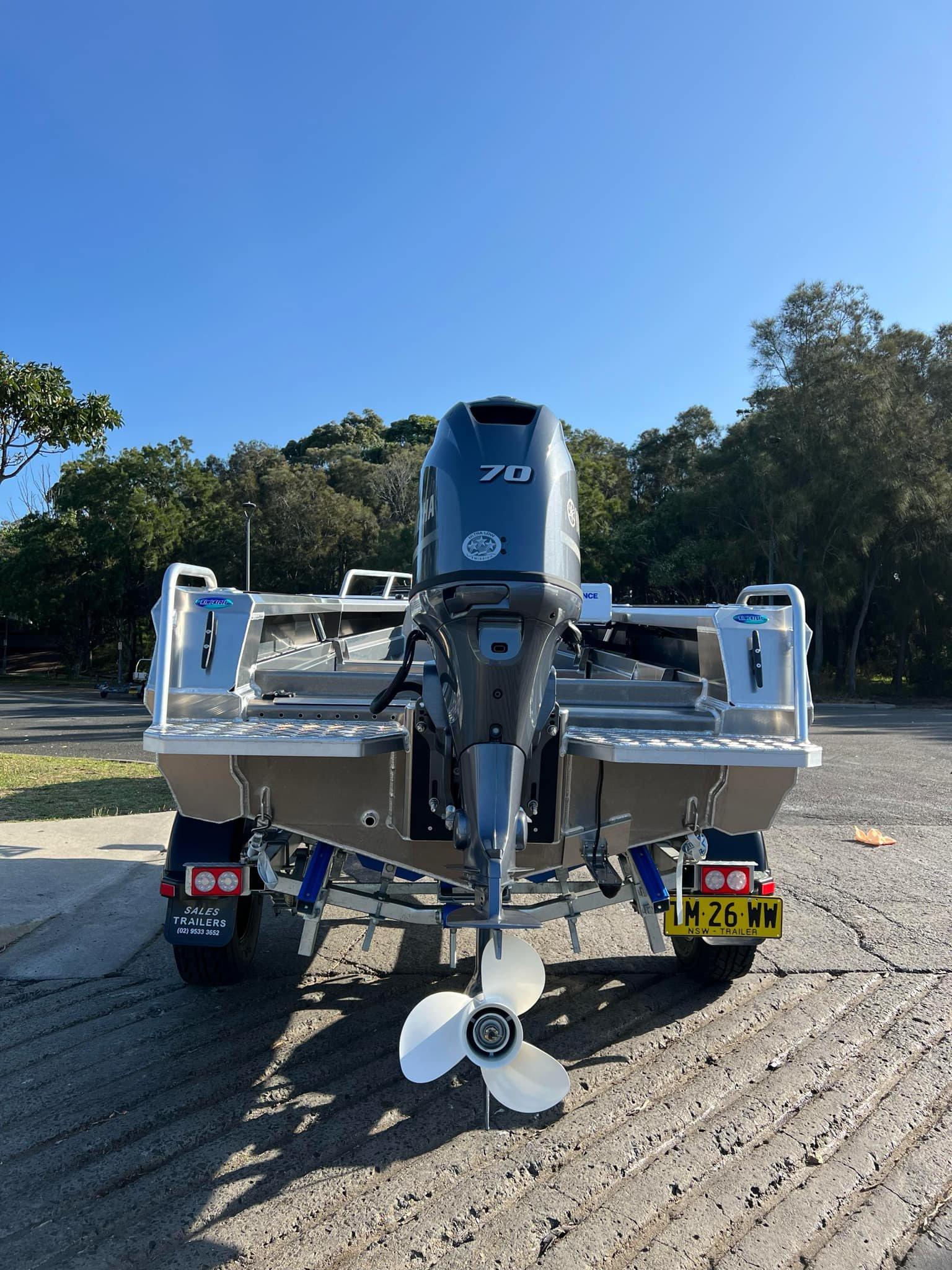

- Outboard pod
- Swim platforms

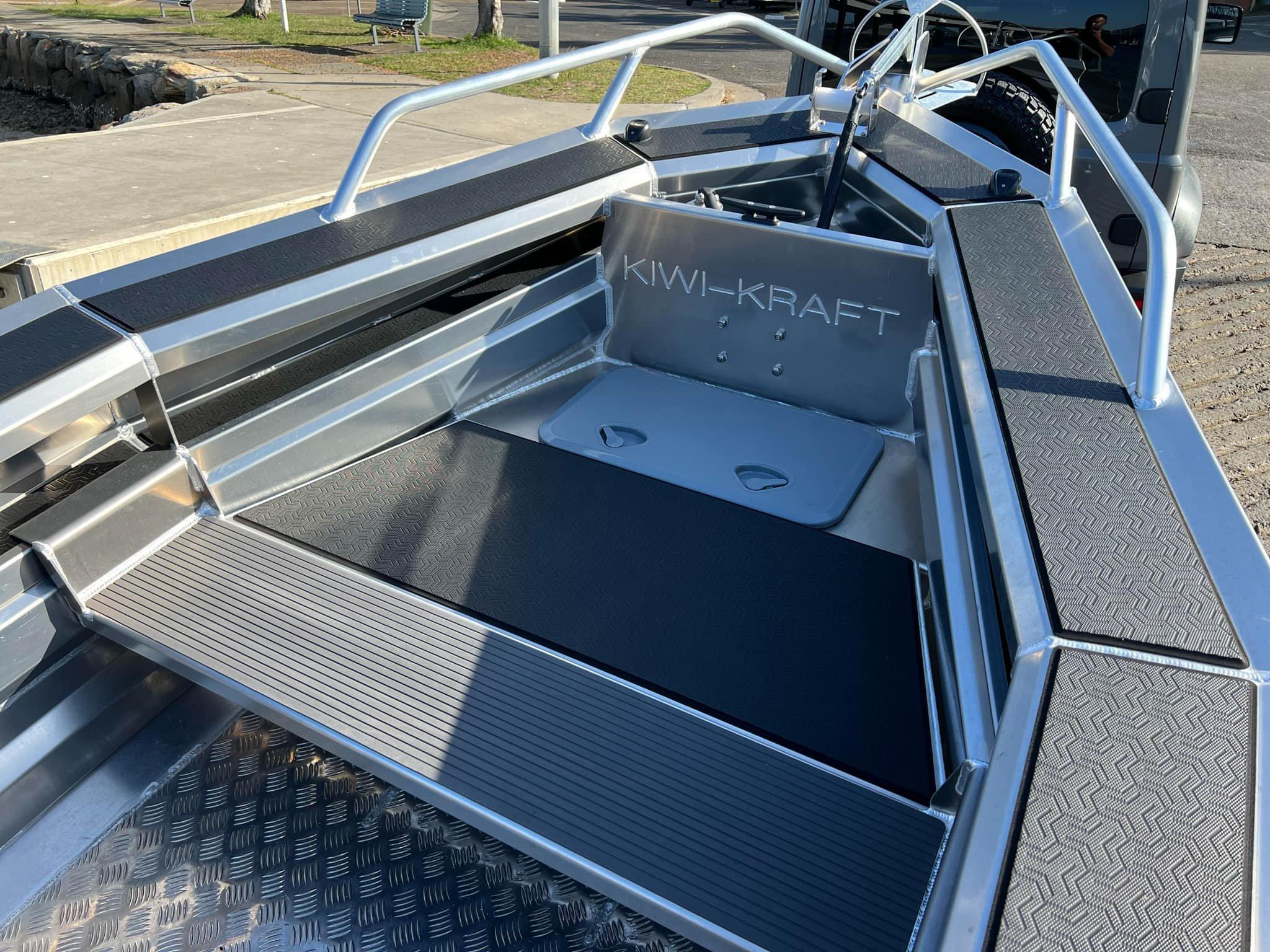

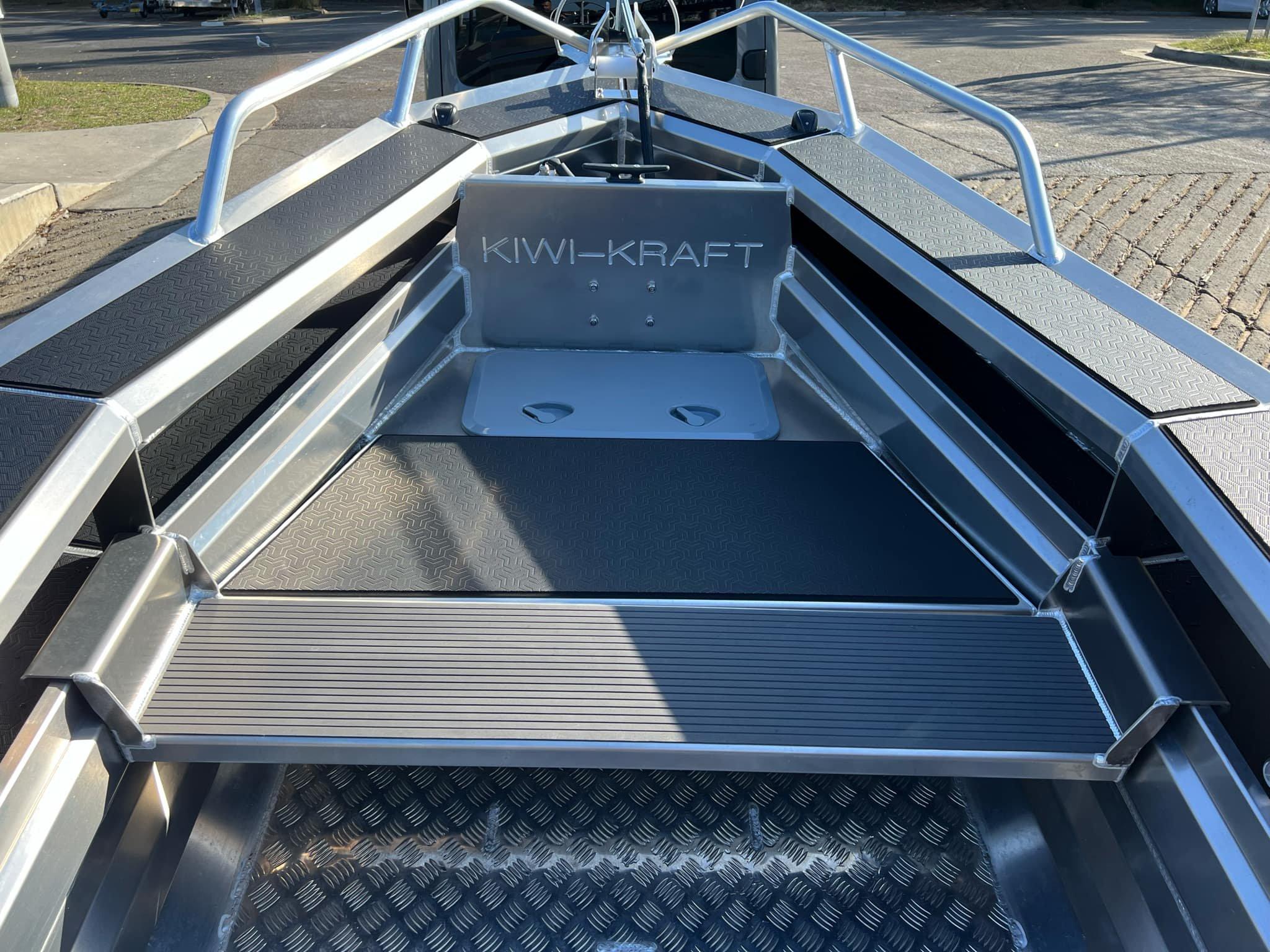

- Front storage/seat

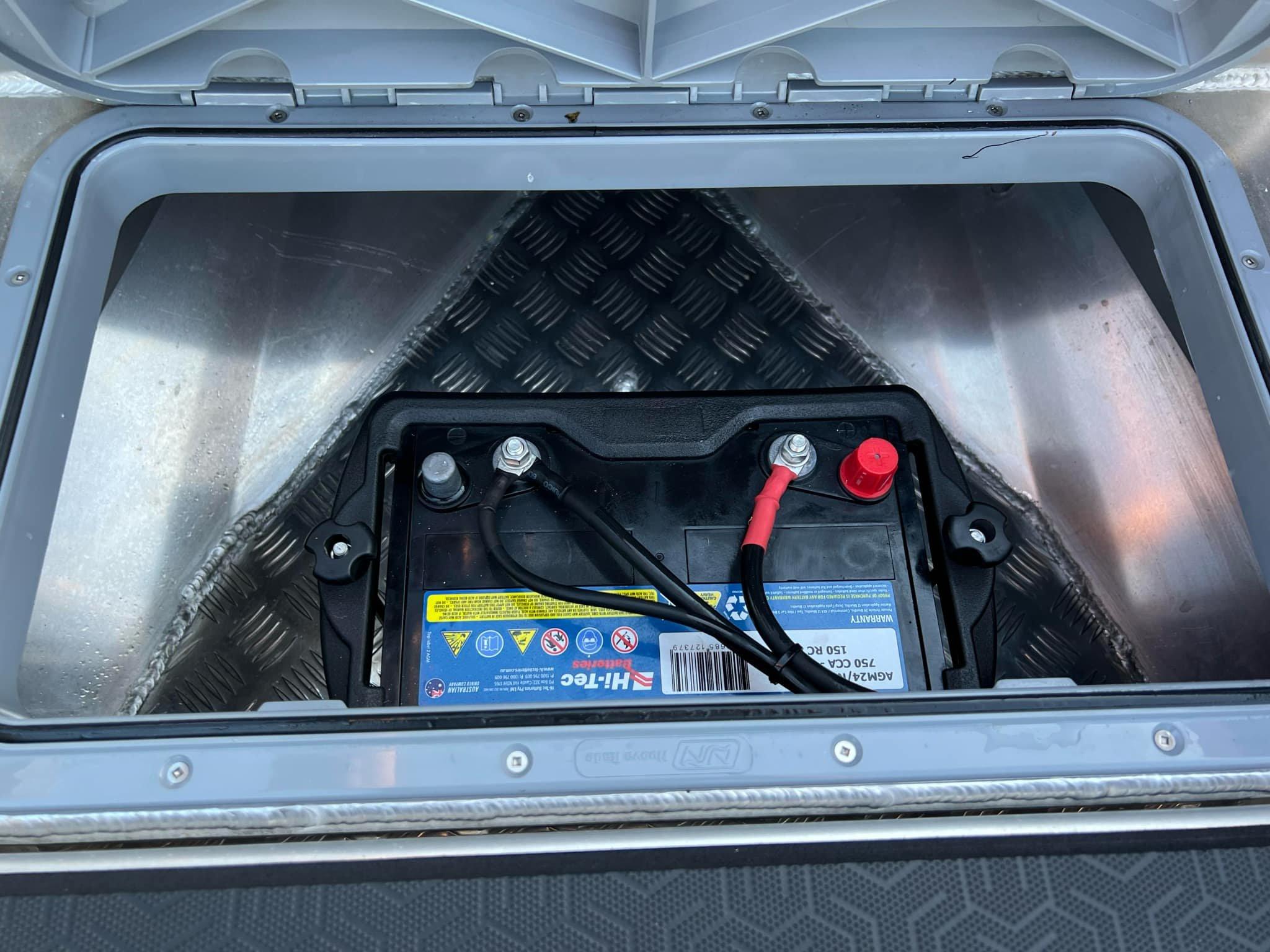

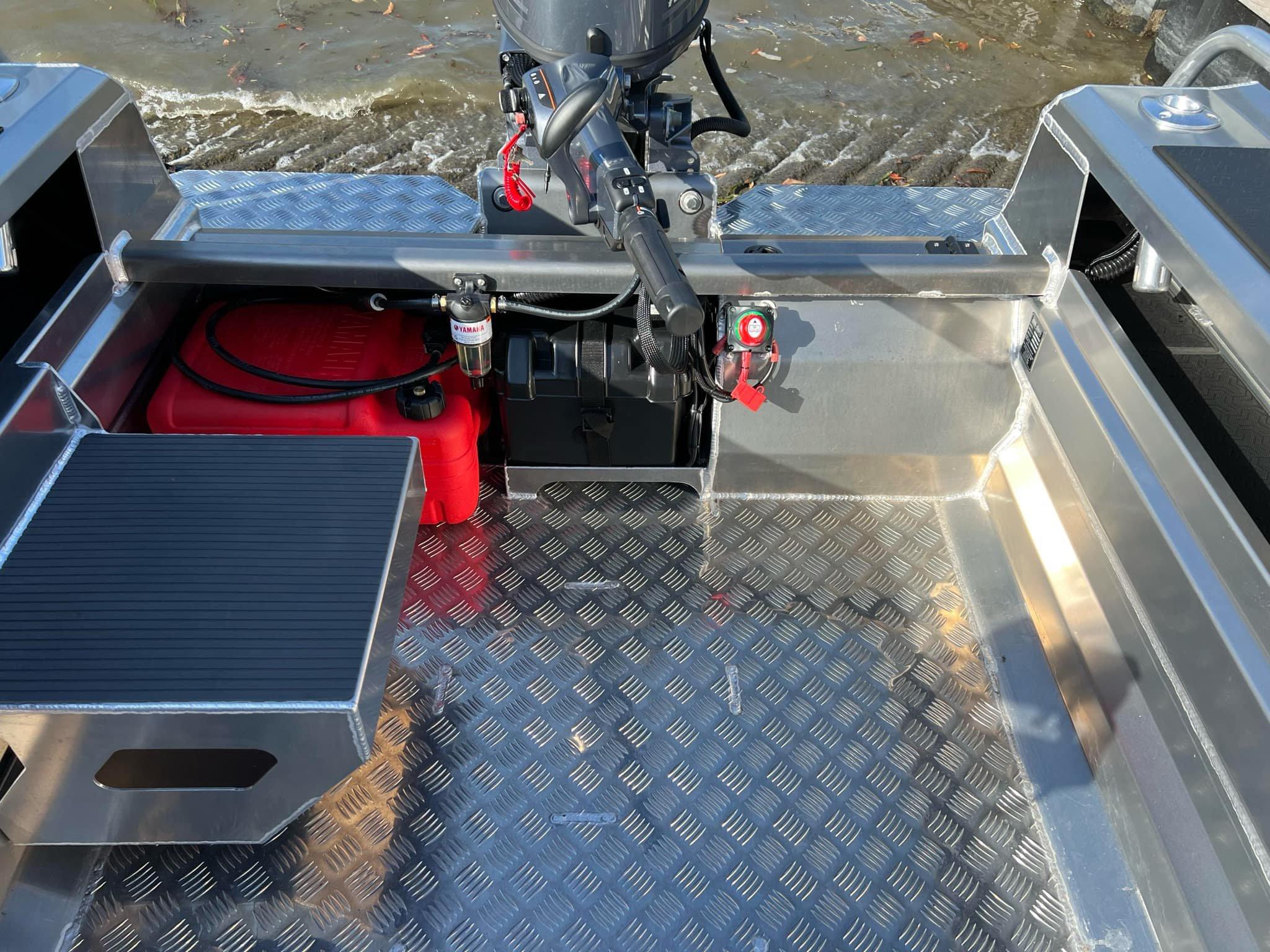

- Battery mount

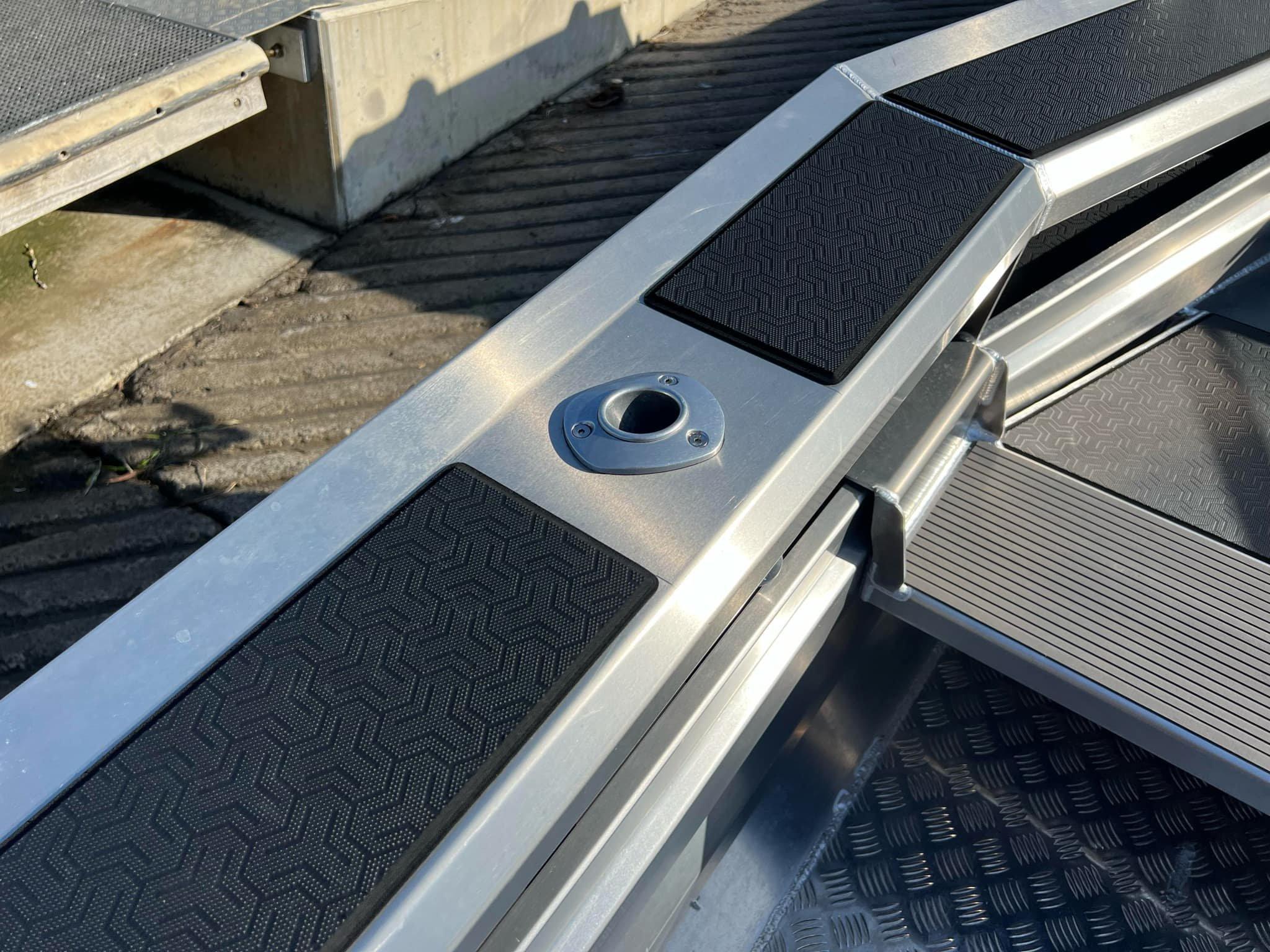

- 2 x rod holders
Optional extras
- Additional single seat
- Bench seat
- Anchor bulkhead
- Full length bow and external grab rail
- Bollard
- Extra cleats
- Side console (bolt-on or weld-on)
- Fuel tank tie-down
- Swim platform
- Boarding ladder
- Live bait tank
- Front casting platform
- Extra rod holders
- Mount for drum winch
- Side console option for helm/controls
Notes
Specifications can change without prior notice.
