Overview
About this vessel

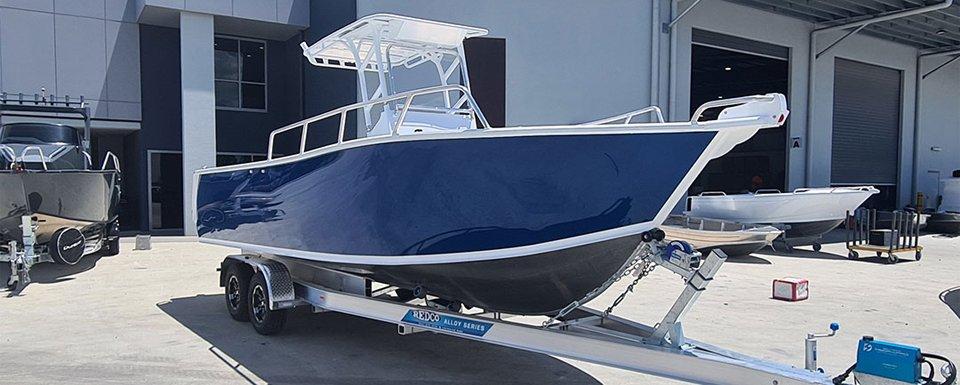

The Pacific GRIDcore range from Horizon Boats delivers a versatile, plate aluminium centre console platform tailored for serious anglers, divers and adventurous families. Built on the in-house developed GRiDcore hull, it balances offshore capability with day-boat practicality, combining a broad beam, efficient hull shape and fastback transom for confident performance and excellent deck useability.
With a raised front casting deck and generous, uncluttered cockpit, the Pacific GRIDcore suits lure and bait fishing alike, while also providing easy movement around the console for scuba and snorkelling activities. Only high-quality marine-grade alloys are used throughout the hull and structure, with fully welded bulkheads and frames forming the GRiDcore backbone for strength and rigidity. Hardware and fittings are sourced from reputable suppliers, and the range is designed to accept outboard power from 40hp through to 300hp depending on size, offering plenty of scope to match performance to your style of boating.

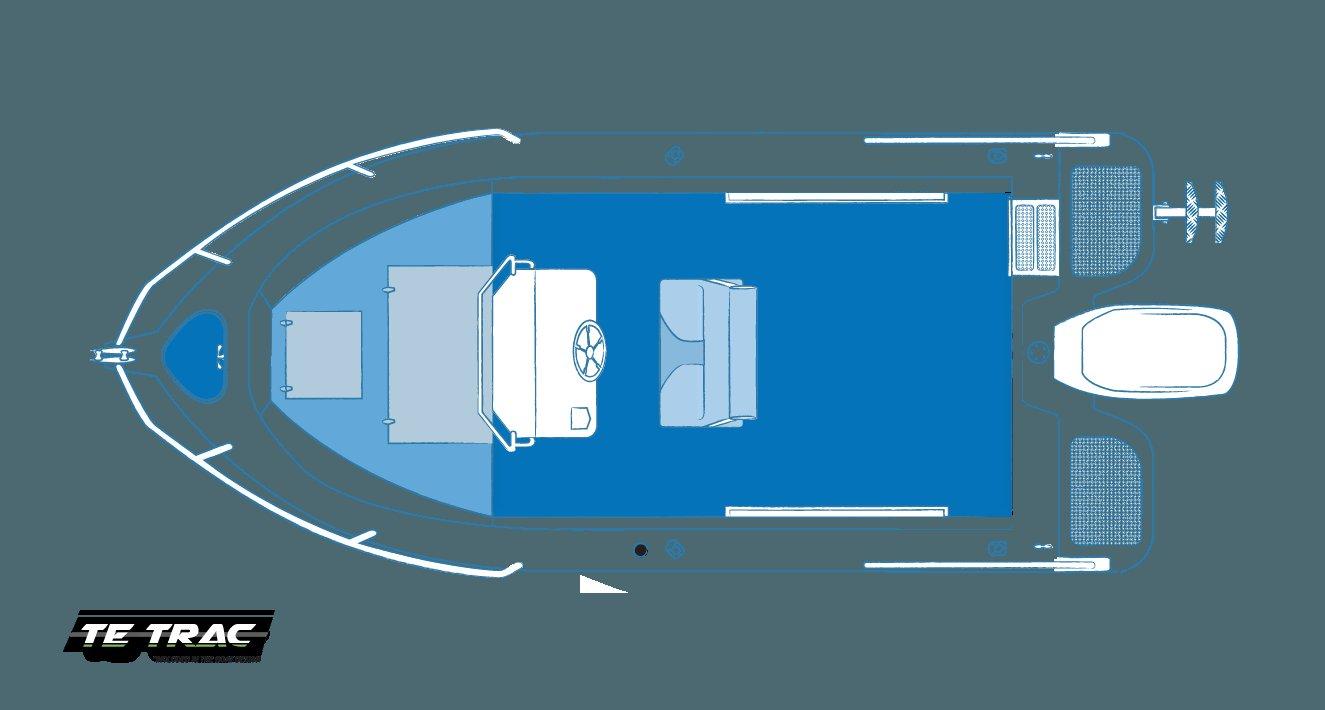

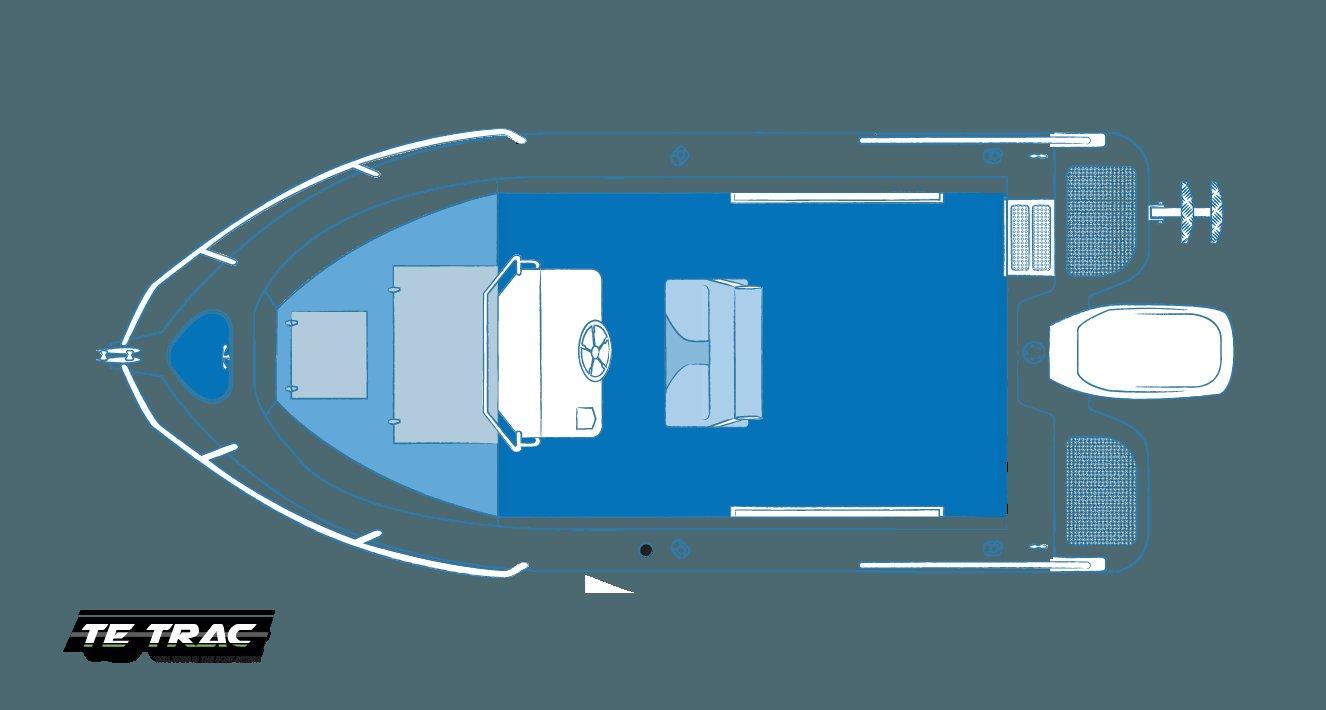

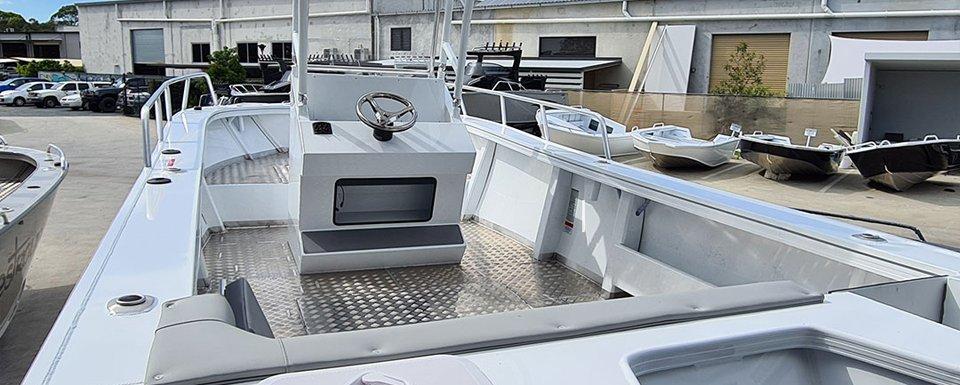

The layout features a two-piece folding centre console with a large dash fascia ready for oversized electronics, supported by hydraulic steering and a sports steering wheel for positive handling. Practical details such as an enclosed rear transom with twin hatches, long-range underfloor fuel tanks, ample side pockets, rod holders and a heavy-duty dive ladder make the Pacific GRIDcore well suited to both extended fishing missions and relaxed family days on the water.
Key series in the Pacific GRIDcore range- 492 Pacific – 5.00m overall length with a 2.40m beam and 1.35m depth, ideal as a compact yet capable centre console for bays, estuaries and inshore work.
- 532 Pacific – 5.40m overall length sharing the same 2.40m beam and 1.35m depth, offering extra space and capacity while remaining easy to tow and handle.
- 562 Pacific – 5.70m overall length with a broader 2.45m beam and 1.45m depth, providing a larger platform and higher passenger capacity for more demanding fishing and family use.
- 592 Pacific – 6.00m overall length on a 2.50m beam and 1.50m depth, moving into true offshore territory with more deck area, increased fuel capacity and higher recommended horsepower.
- 632 Pacific – 6.40m overall length on a 2.50m beam and 1.50m depth, delivering additional space, range and capability for coastal and offshore adventures.
- 662 Pacific – 6.70m overall length (6.60m bow to transom) with a 2.50m beam and 1.50m depth, combining a heavier-duty bottom sheet with substantial fuel and horsepower ratings for serious bluewater work.
- 732 Pacific – 7.70m overall length with a 2.50m beam and 1.50m depth, sitting at the top of the range as a large, offshore-ready centre console capable of handling demanding conditions with ample deck space and load-carrying ability.
Across the series, standard features typically include fully welded gunnels and side decks, extruded side decks with RAILBLAZA TracLoader extrusion, raised front casting deck with storage access, high bow and transom rails, long-range underfloor fuel tanks, underfloor foam flotation to Australian Standards, and a painted white interior and exterior with custom decals. Optional factory upgrades such as 5mm high-tensile bottom sheets, Lenco trim tabs, fully welded self-draining checkerplate floors, ski pole and bait board with ski pole mount, and folding T-tops with aluminium sheet tops enable owners to tailor each Pacific GRIDcore to their preferred style of fishing and family boating.
