Asking PriceDealer
Price on Application
MakeKiwi Kraft
Model585 FISHERMAN CUDDY
Length5.95m
Overview
About this vessel

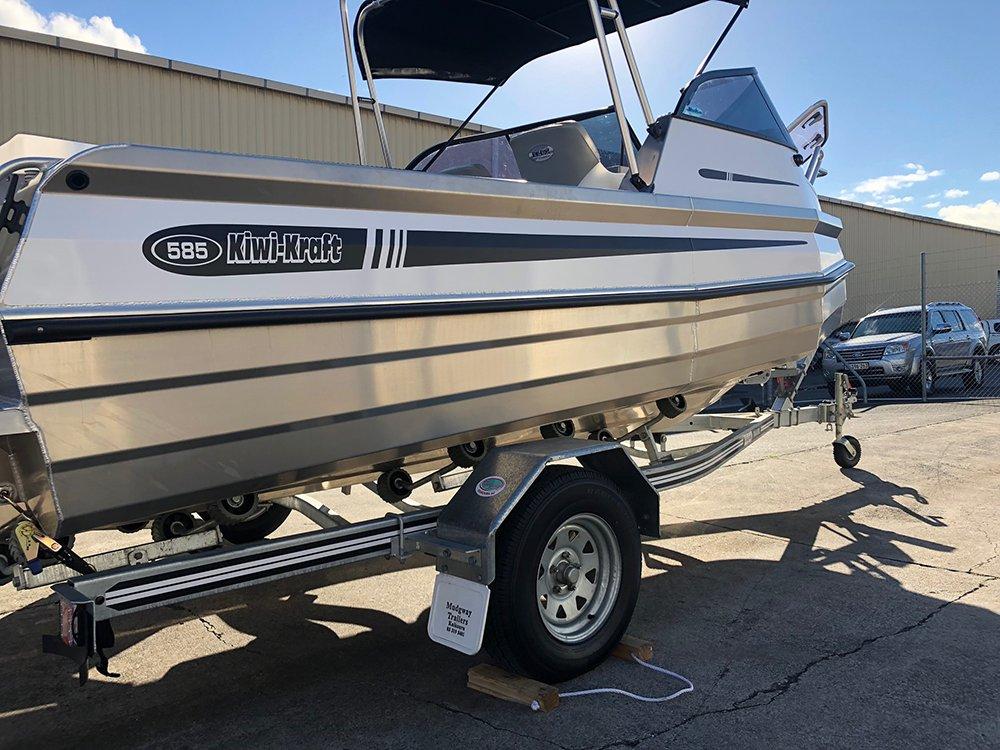

585 FISHERMAN CUDDY is a 5.95 m aluminium pontoon cuddy-cabin boat from Kiwi-Kraft, built to New Zealand CPC standard and MSA specifications. The model incorporates Kiwi-Kraft s Hush Tec technology and multiple sealed pontoon buoyancy chambers for enhanced safety, quiet ride and superior performance offshore.
The 585 FISHERMAN CUDDY features a compact cuddy cabin with foredeck hatch, generous floor-to-gunnel height for security, and a practical fishing-focused cockpit. The wide beam and pontoon design provide stability, while the underfloor storage tank and transom walk-through with door optimise space and access to the rear boarding platform.
The standard layout includes comfortable seats on soft-rider pedestals with sliders, alloy rod holders, an outboard pod and provisions for ski pole fittings. With a maximum rating of 175 hp and capacity for up to 6 people, it is configured as a versatile coastal fishing and family boat.
Key construction details include a 5 mm hull, 3 mm pontoons and topsides, and 4 mm floor, delivering a robust structure suitable for serious fishing and rougher conditions. Standard equipment covers electrical, safety and usability items such as bilge pump, switch panel, battery system and transducer mount, with a wide range of optional extras available to customise the boat for specific fishing or recreational use.
- Compliance: Built to NZ CPC standard & MSA specifications
- Design: Aluminium pontoon hull with multiple sealed buoyancy chambers
- Cuddy layout: Forward cabin and foredeck hatch with walk-through transom and rear boarding platform
- Use case: Offshore and inshore fishing, family day boating, watersports when optioned with ski pole
Standard features (factory equipment)
- Built to NZ CPC standard & MSA specifications
- Hush Tec technology for superior performance
- Multiple sealed pontoon buoyancy chambers

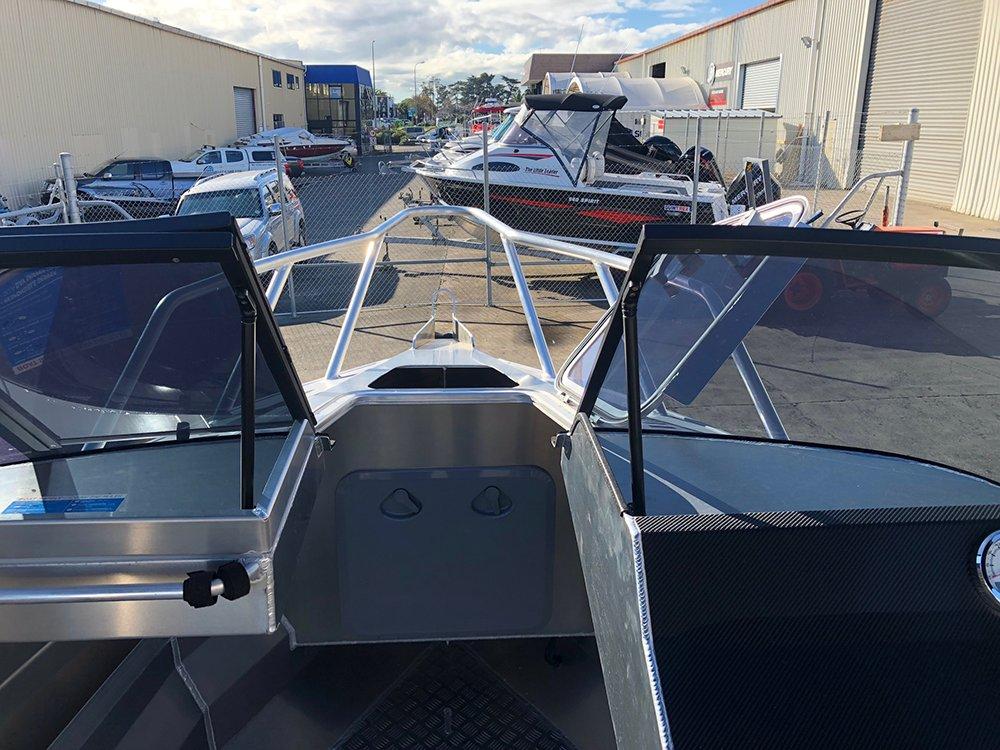

- Foredeck hatch

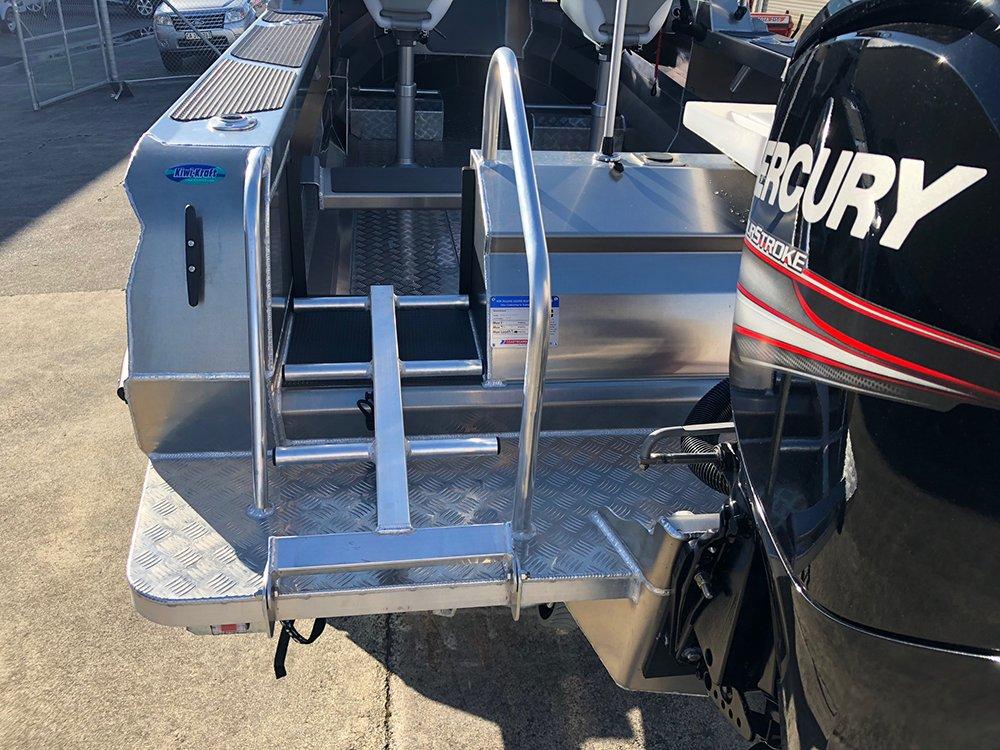

- Rear boarding platform
- Heavy-duty rubber fender
- Heavy-duty bow roller 8 mm

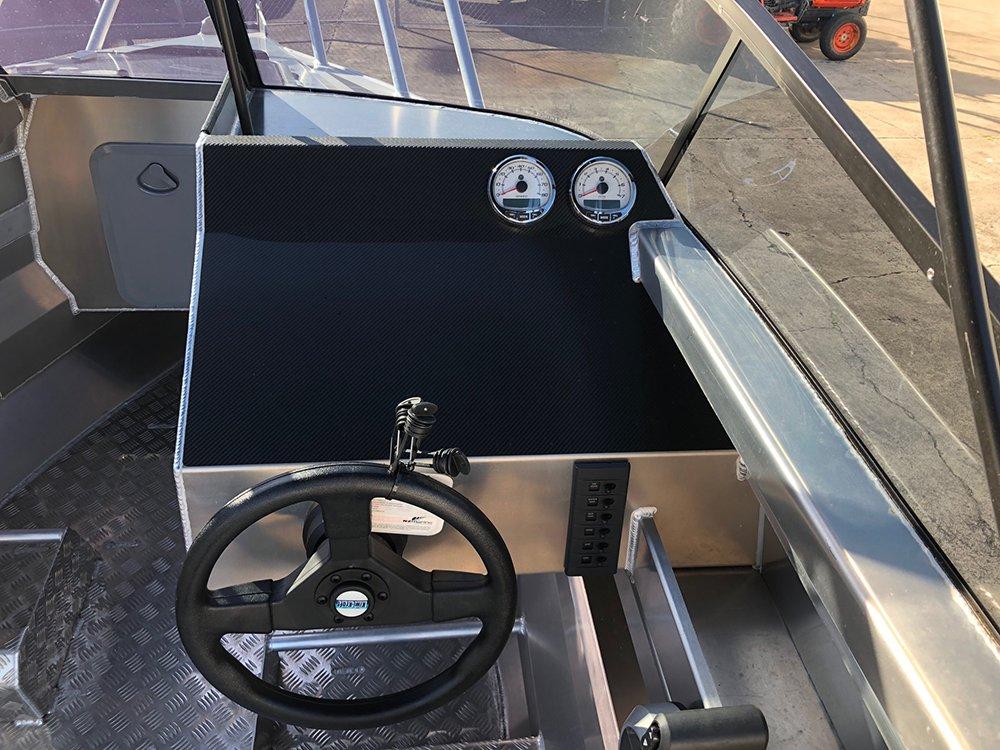

- Rotary steering NFB
- Outboard pod
- Bilge pump 1100 GPH
- 6-way switch panel
- Battery isolator
- Battery box
- Underfloor storage tank
- Bow rail
- Walk-through transom and door

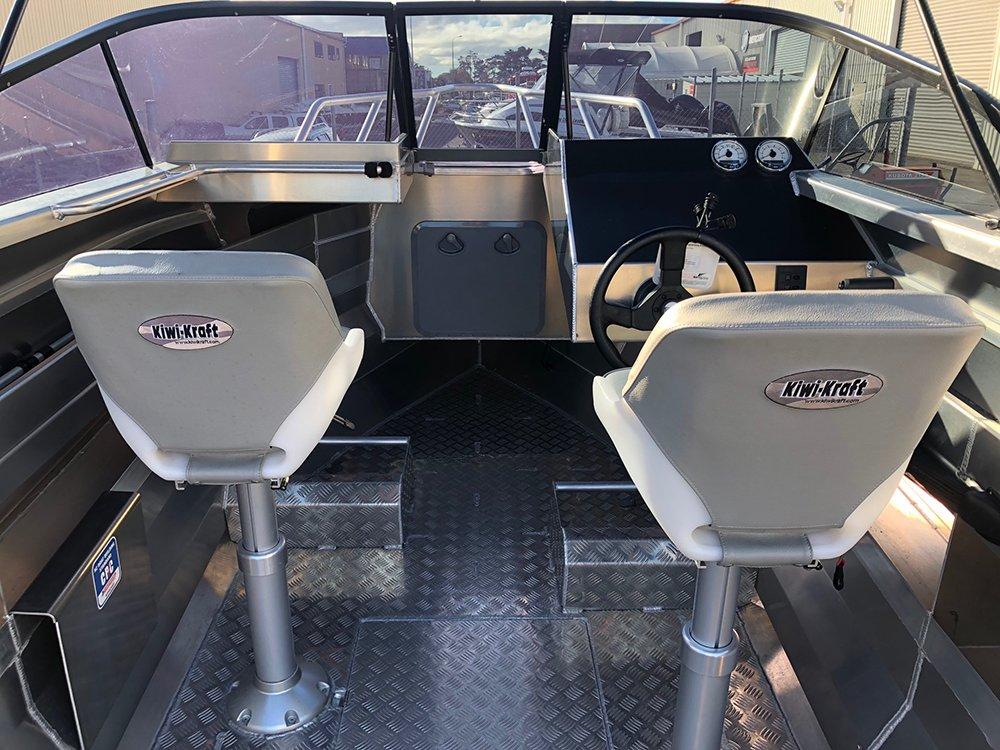

- “2000” seats
- Soft rider pedestals and sliders
- Ski pole fittings
- Alloy rod holders x4
- Transducer mount
- Water pick up and valve assembly
- Fuel hose cover
- Zinc anode
Optional extras
- Live bait tank with manual pick up & pump
- Deck wash pump & hose storage tube
- Rear bench seat (folding)
- Boarding ladder (2 or 3 rung)
- Rocket launcher
- Auxiliary bracket
- Anchor bin lid 8 mm, RC6/RC8 winch compatible
- Custom bait station
- Auxiliary bracket (additional listing)
- Capstan winch
- Anchor windlass
- Anchor drum winch
- Pot hauler
- Ski pole
- Twin outboard bracket
- King/Queen starboard seat
- Folding footrest/combo bunk extension
- Hydraulic steering
- Seat upholstery kits
- Hydraulic steering recess kit
- Rocket launcher (additional listing)
Specifications note: All specifications are stated by the manufacturer as subject to change without prior notice.
Specifications
The details
Vessel
MakeKiwi Kraft
Model585 FISHERMAN CUDDY
Dimensions
Length overall5.95m
