Overview
About this vessel
665 KIWI KRAFT CC is a 6.975 m aluminium pontoon centre console designed and built in New Zealand to NZ CPC standard and MSA specifications. It features Kiwi Kraft’s Hush Tec technology for superior performance, a robust hull construction with multiple sealed pontoon buoyancy chambers, and a large, open deck layout optimised for serious fishing, diving, and versatile recreational use.
The boat offers a generous 2430 mm beam and deep cockpit (800 mm floor to gunnel) for security and comfort, plus a 280 litre underfloor fuel tank for extended range. Practical fishing and family‑use features include an outboard pod, rear boarding platform and ladder options, walk‑through transom, large fillet board, centre console with screen, and twin bolster seats on an alloy frame. A wide range of factory optional extras allows customisation for offshore fishing, watersports, or general boating, including livebait systems, deck wash, additional seating, storage and casting platforms, and specialised hardware such as winches, pot hauler and radar mounts.
Key structural & performance characteristics
- Built to NZ CPC standard & MSA specifications
- Hush Tec technology for superior performance
- Multiple sealed pontoon buoyancy chambers
- 5 mm hull with 3 mm pontoons and topsides, 4 mm floor
- Centre console layout with wide beam and deep cockpit
- 280 L underfloor fuel tank for extended range
Main specifications (from manufacturer)
- LOA: 6975 mm
- Beam: 2430 mm
- Beam internal: 1850 mm
- Deadrise: 22°
- Hull: 5 mm aluminium
- Pontoons: 3 mm aluminium
- Top sides: 3 mm aluminium
- Floor: 4 mm aluminium
- Height on trailer: 3100 mm
- Floor to gunnel: 800 mm
- Max HP: 250 hp
- People capacity: 8
Standard features (factory‑supplied)
- Built to NZ CPC standard & MSA specifications
- Hush Tec technology for superior performance
- Multiple sealed pontoon buoyancy chambers
- Rear boarding platform
- Heavy‑duty rubber fender
- Heavy‑duty 8 mm bow roller
- Hydraulic steering
- Outboard pod
- Underfloor fuel tank 280 litres
- Large fillet board
- Bilge pump 1100 GPH
- 6‑way switch panel
- Battery isolator
- Battery box

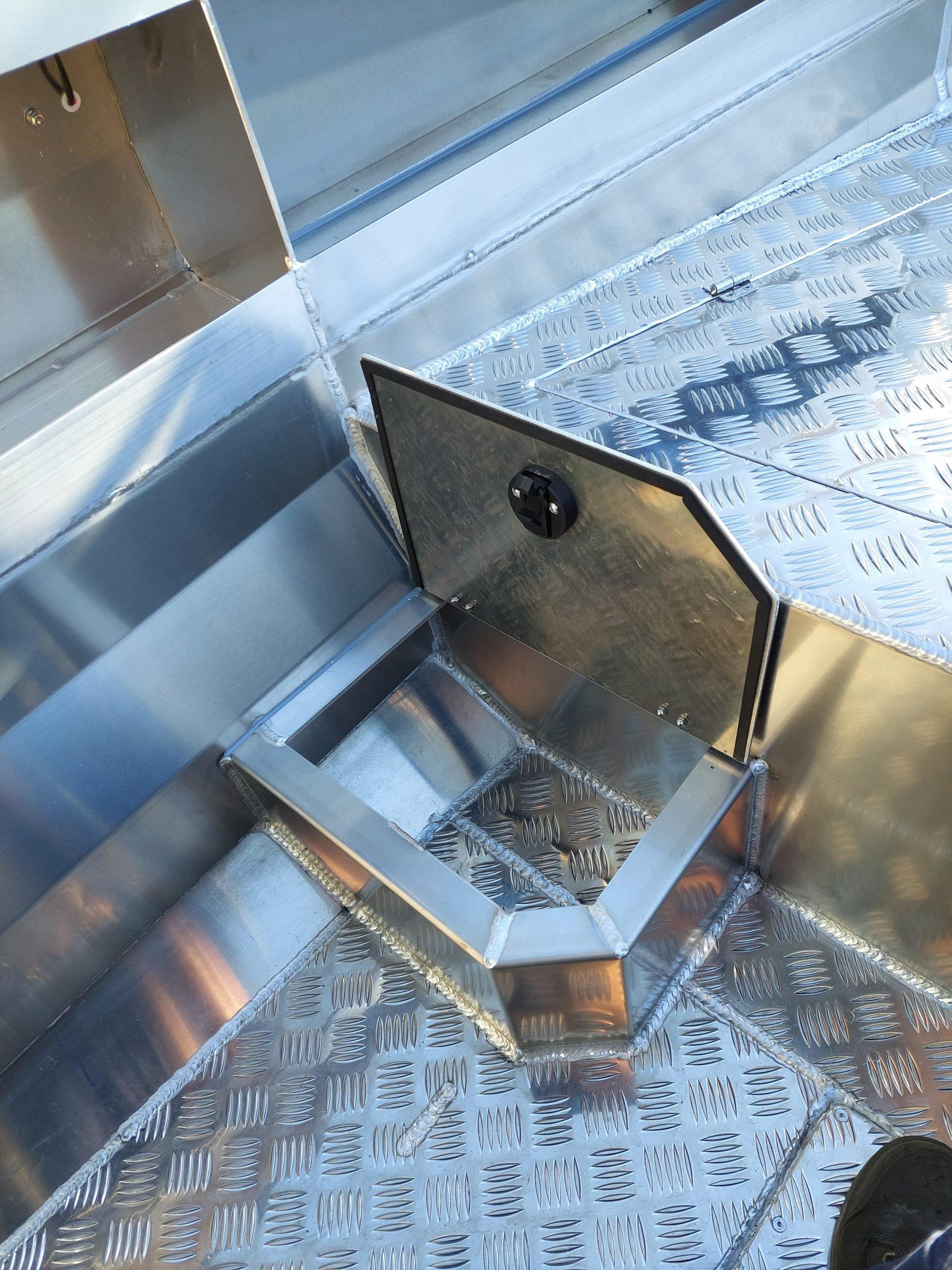

- Under‑floor storage (kill tank)
- Bow rail
- Walk‑through transom with door
- Kiwi Kraft fully upholstered bolster seats
- Ski pole fittings
- Alloy rod holders × 4
- Trim tab mounts
- Transducer mount
- Zinc anode
- Water pick‑up and valve assembly

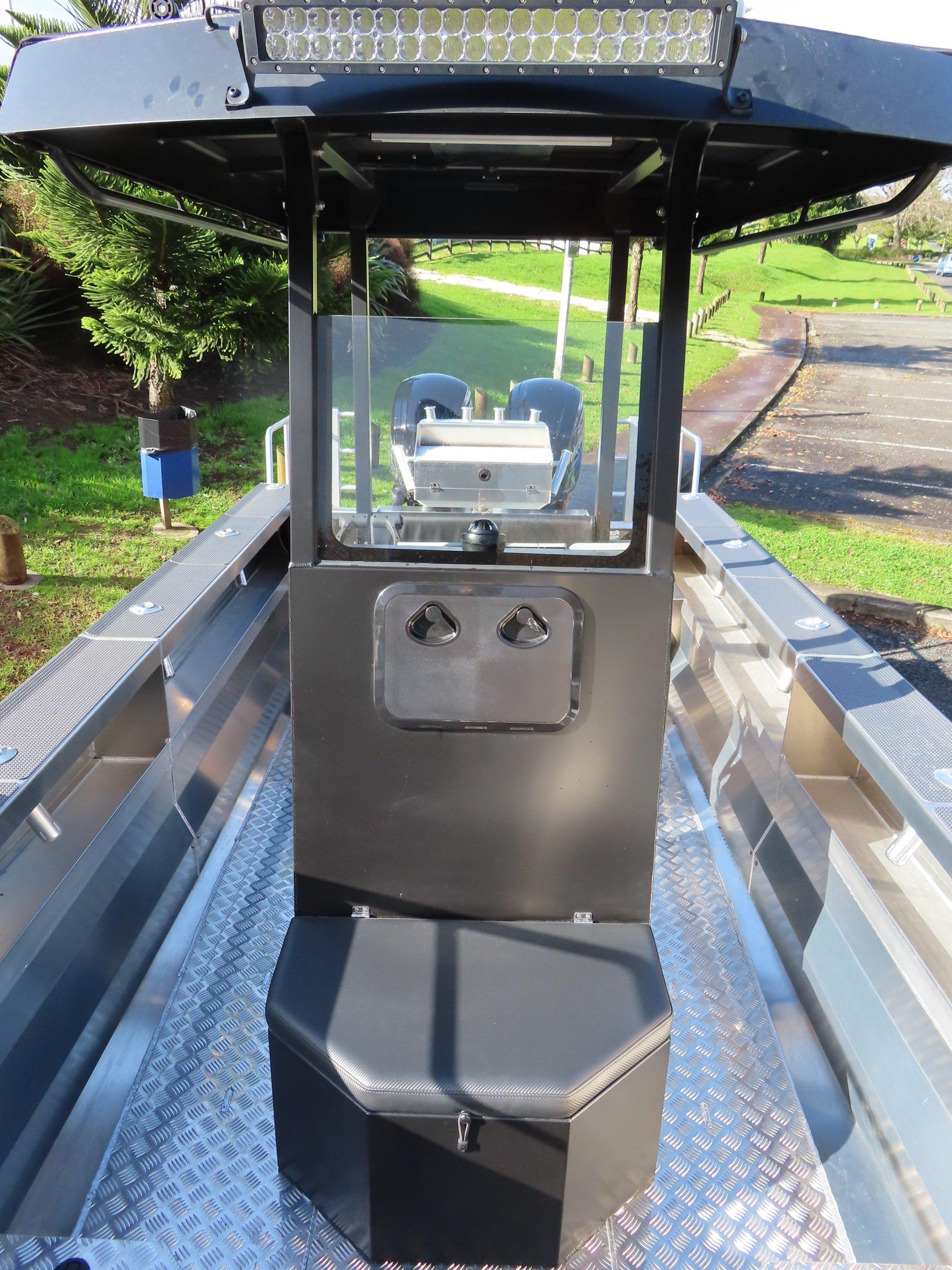

- Centre console with screen
- Fuel hose cover
- Twin bolster seats on alloy frame
Optional extras (factory options)
- Live bait tank with manual pick‑up and pump
- Deck wash pump & hose storage tube
- Rear bench seat (folding)
- Boarding ladder (2 or 3 rung)
- Auxiliary bracket

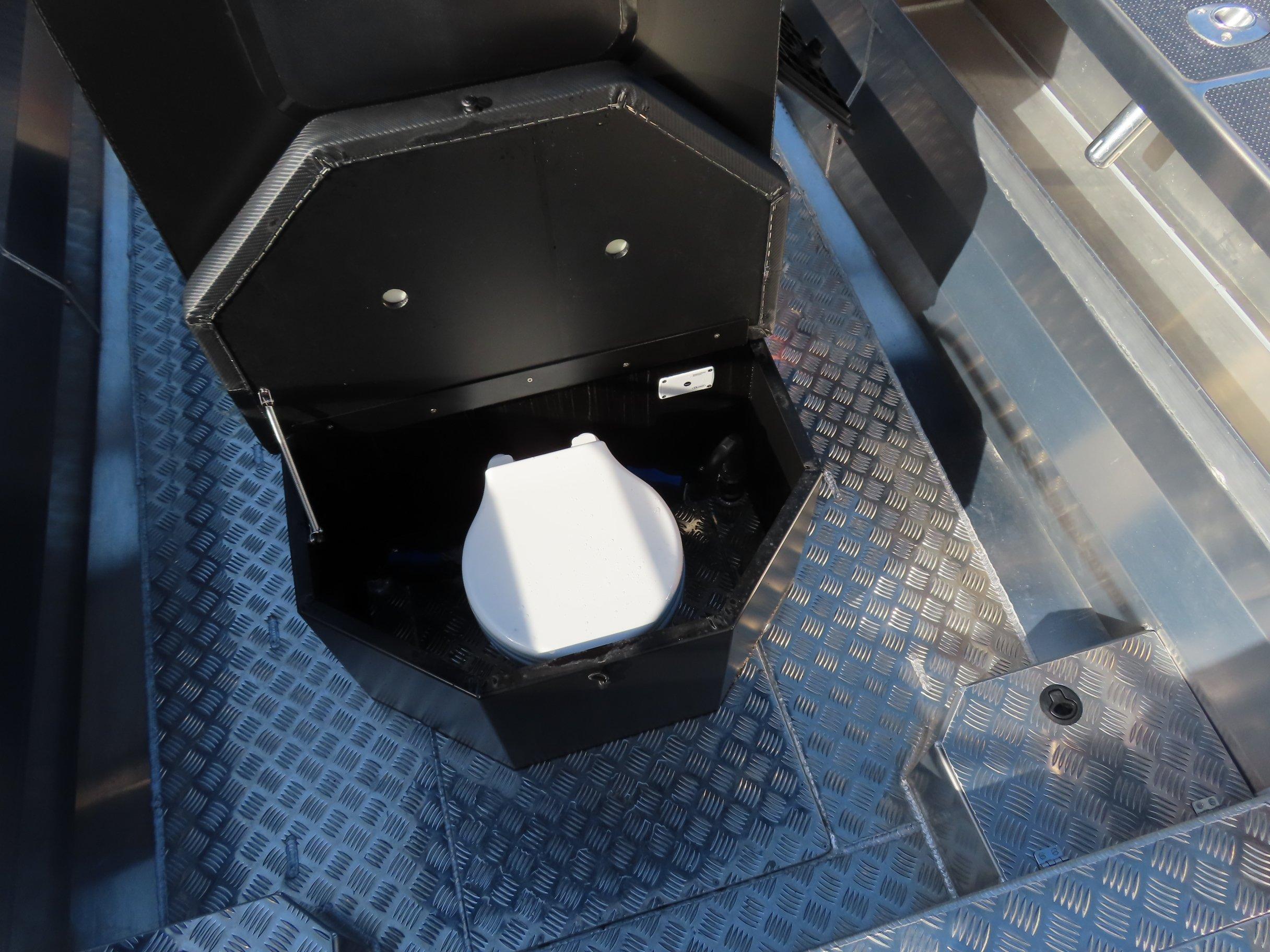

- Flush toilet
- Fresh water system
- Anchor bin lid 8 mm, RC6/RC8 winch compatibility
- Custom bait station
- Fridge
- Capstan winch
- Anchor windlass
- Anchor drum winch
- Pot hauler
- Ski pole

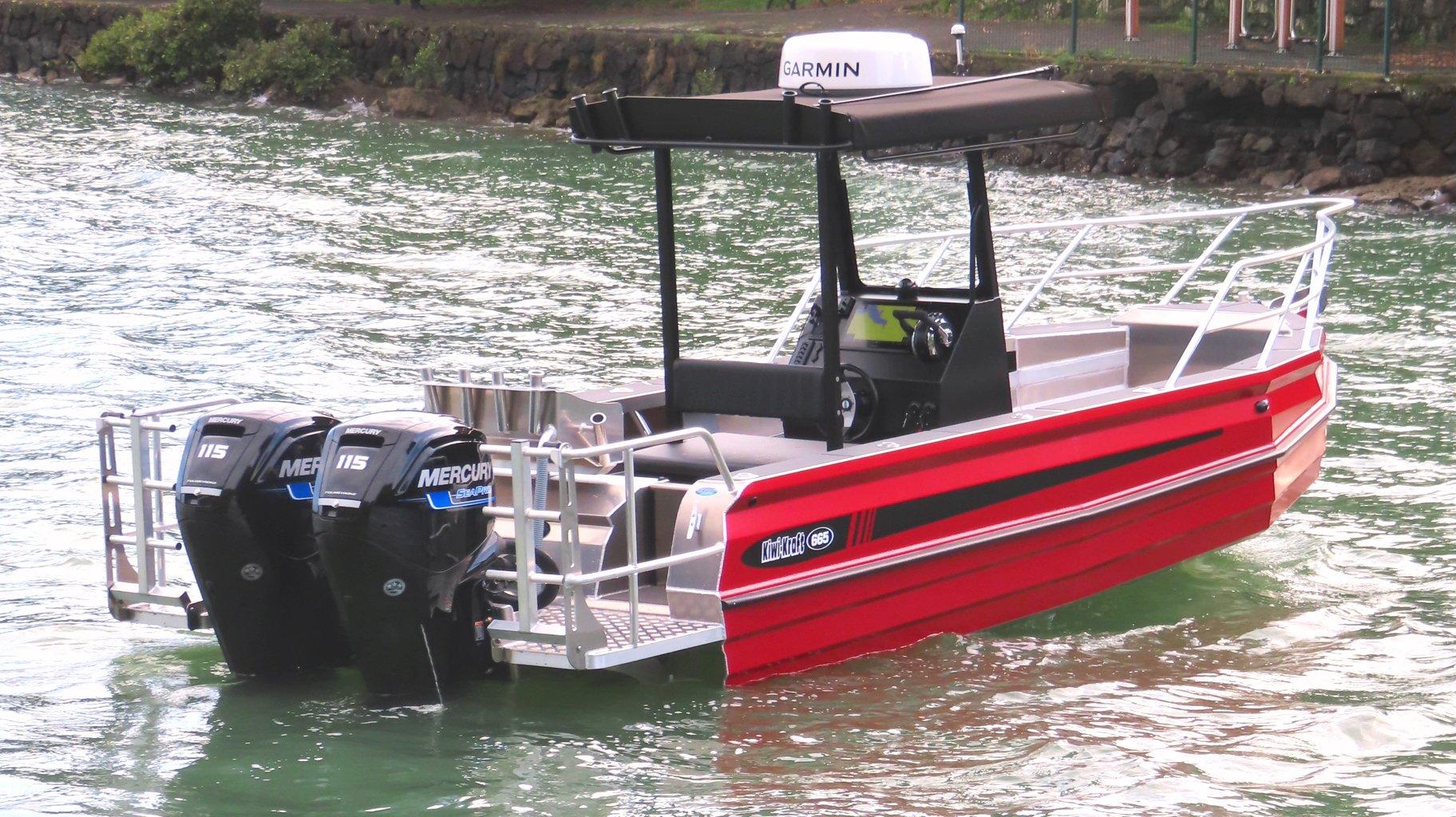

- Twin outboard bracket
- Hydraulic steering recess kit
- Extended platforms
- Rear cage
- Extra‑high bow rail
- Custom bimini frame with rodholders
- Raised casting platform with storage
- Storage steps
- Reversible driver’s seat or custom seating
- Radar mount
- Front lighting mount
Notes
Note: Specifications can change without prior notice. Engine brand, model, fuel type and final layout are selected and rigged by the dealer or customer within the stated maximum horsepower and design parameters.
