Overview
Description
SOLAS and MED approved rescue tender for yachts over 500 gross tonnage
Dimensional Drawing and Remarkable Equipment
1 Removable ski pole with bayonet jointed 360° white light
2 Removable resin parts with backrests
3 Electrically actuated folding console (optional)
4 Integrated inflator system with dashboard switch for bow air chamber (optional)
5 Quick in-out tube system connection
6 Removable section for easy access to swim platform

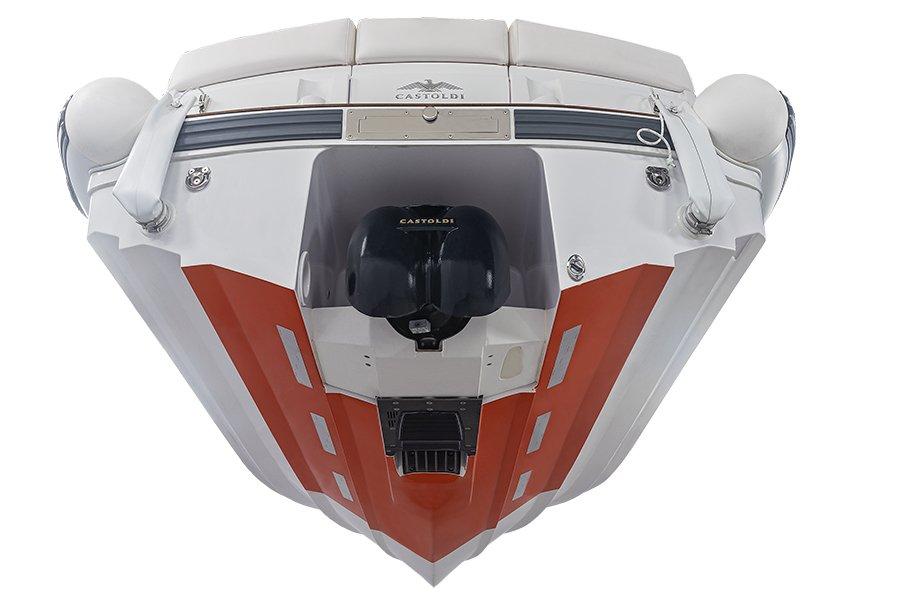

7 Professional Castoldi waterjet drive with Kevlar duct, stainless steel liner and impeller

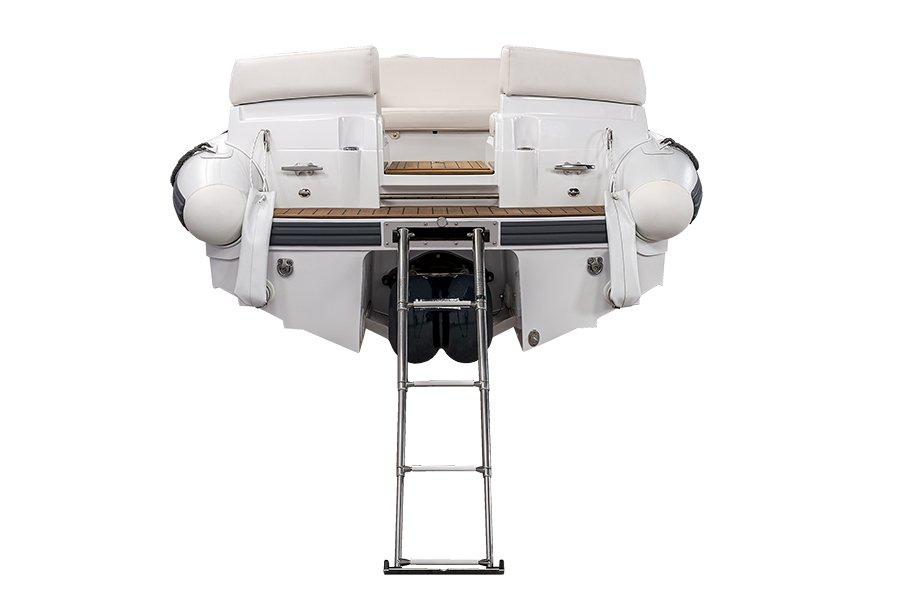

8 Recessed 4 steps swim ladder

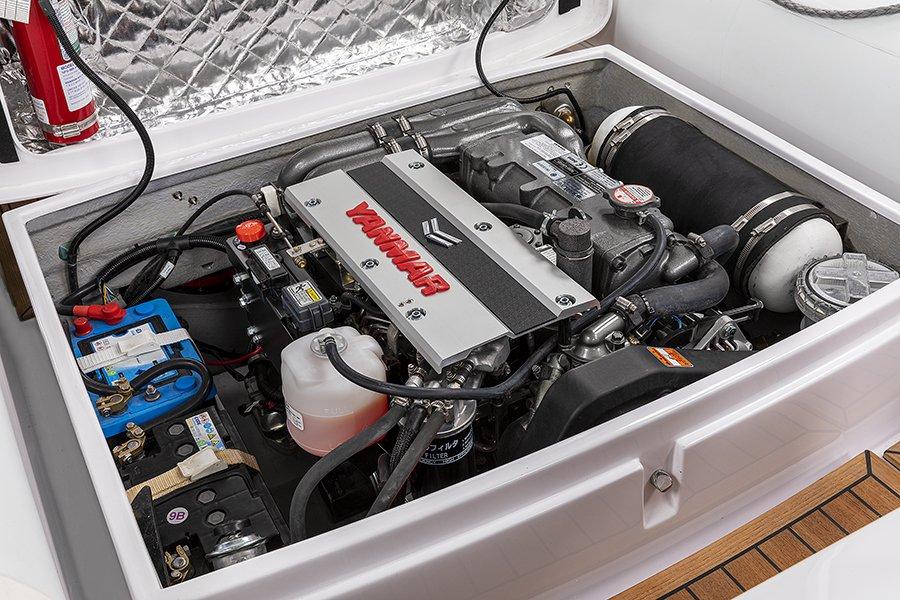

9 Engine cover with full width opening
10 Recessed single point lifting eye (optional)
11 Inspectable and extractable cross-linked polyethylene 74 l fuel tank

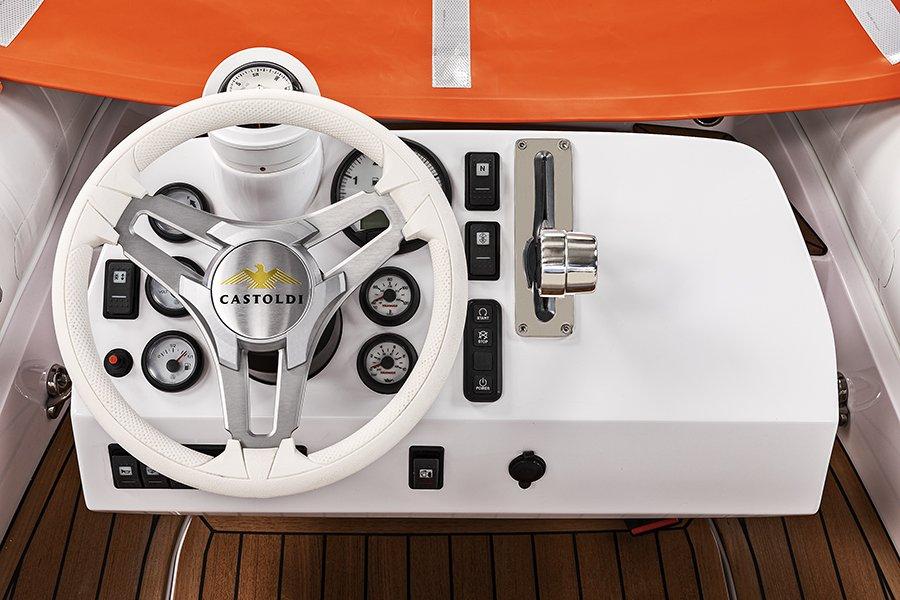

12 Castoldi stainless steel single lever box for the mechanical control of the engine rpm with integrated switch for electric/hydraulic reversing bucket control
Construction
Hull

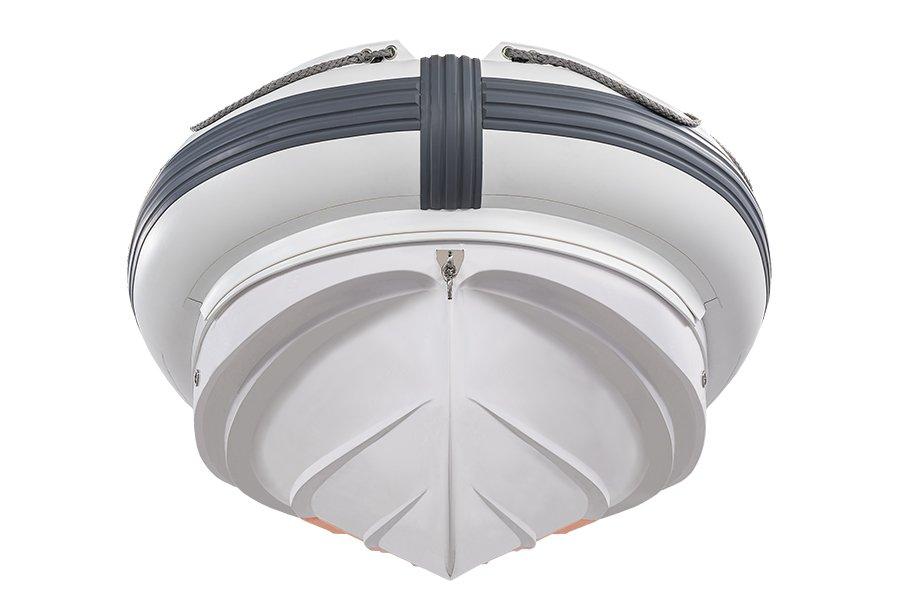

Single skin structure, hand laid Kevlar and vinylester fire retardant resin
Deck, console
Sandwich structure, hand laid glass and vinylester fire retardant resin with nidaplast core
Stringer System
Sandwich structure, hand laid Kevlar and vinylester fire retardant resin with polyurethane closed cell foam core
Inflatable tube
Hypalon/Neoprene coated polyester fabric 1100 Dtex with No. 5+1 (B.I.S.S.) separate airtight compartments
