Description

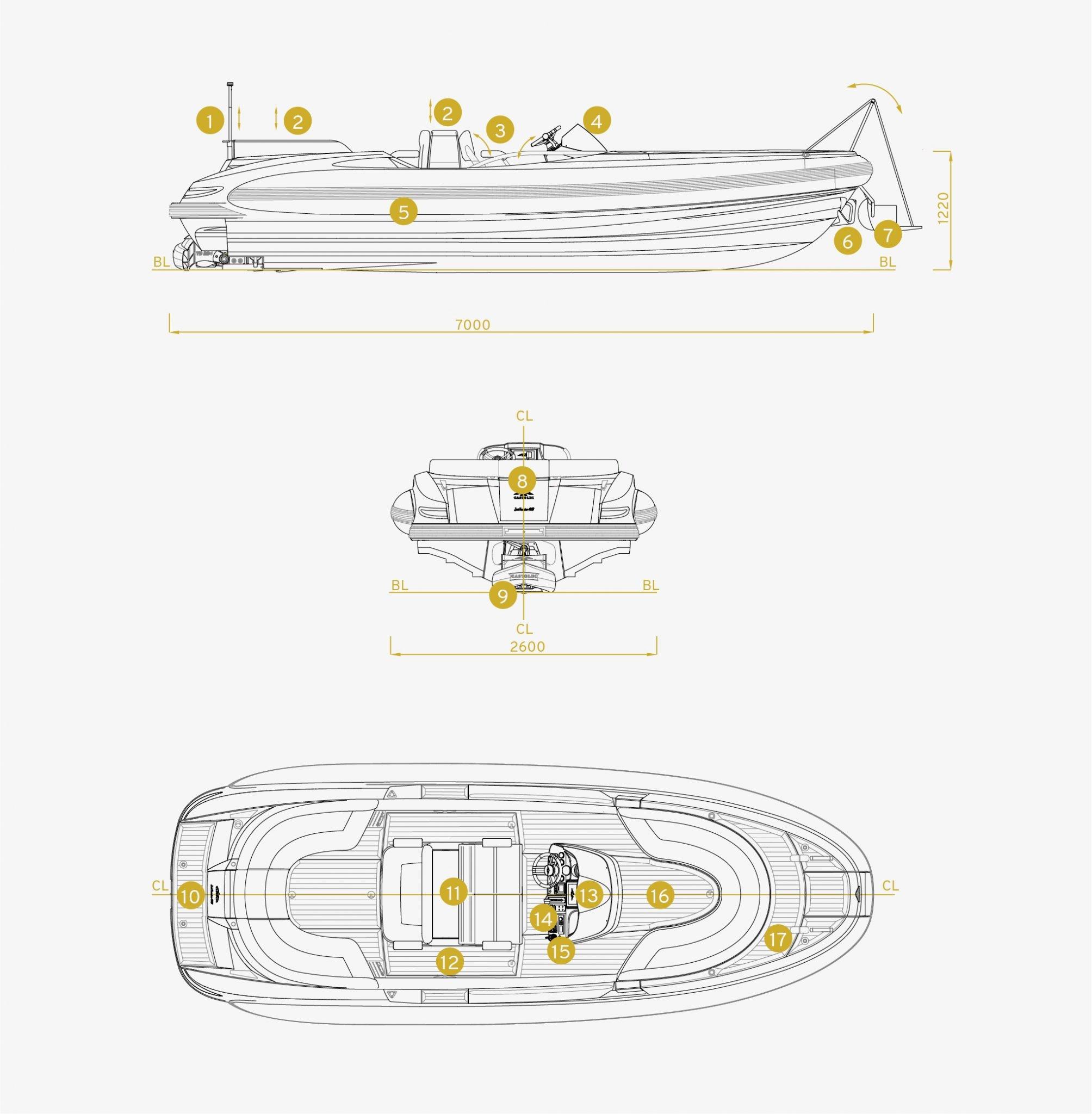

Dimensional Drawing and Remarkable Equipment

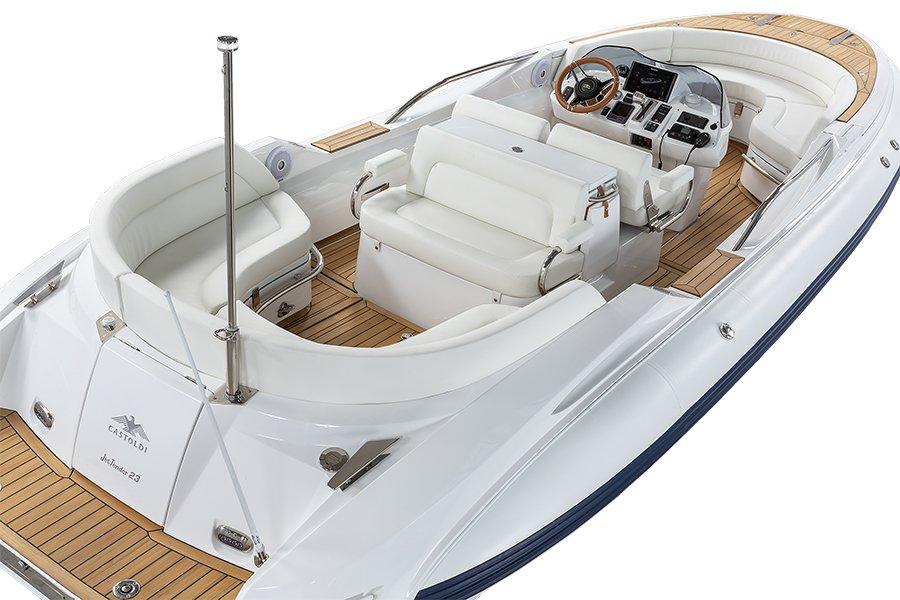

1 Removable ski pole with bayonet jointed 360° white light
2 Removable backrests
3 Folding backrests
4 Electrically actuated folding console
5 Quick in-out tube system connection
6 Anchor with electric windlass
7 Beach landing stepped ramp

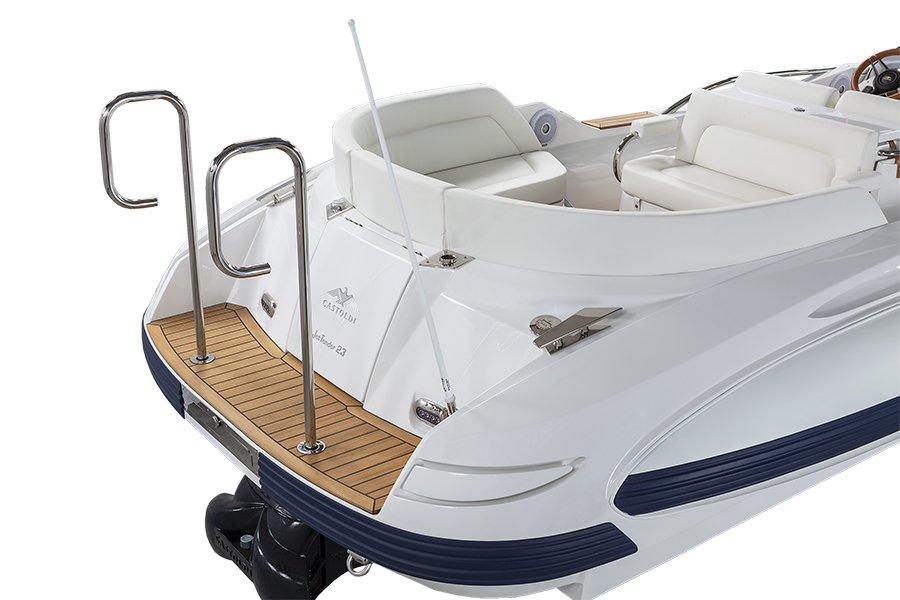

8 Hinged door for easy access to swim platform

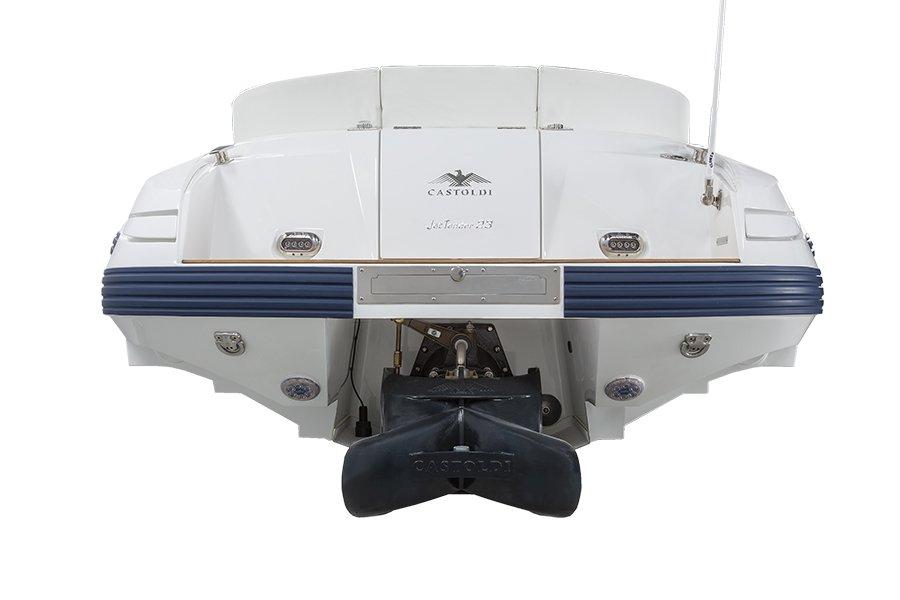

9 Professional Castoldi waterjet drive with stainless steel and titanium parts

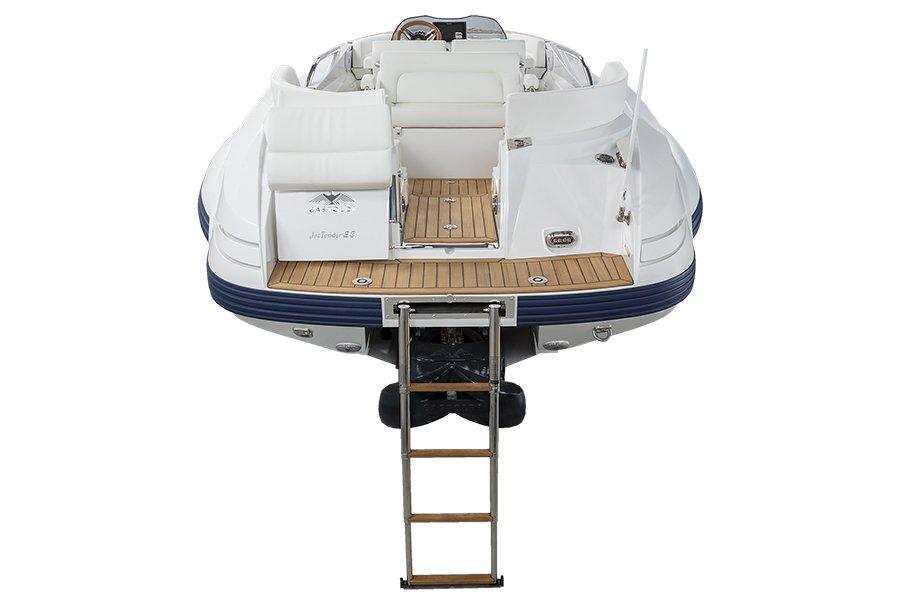

10 Recessed 4 steps swim ladder
11 Recessed single point lifting eye (optional)
12 Flip-down boarding steps (port and stbd) with stainless steel boarding handle

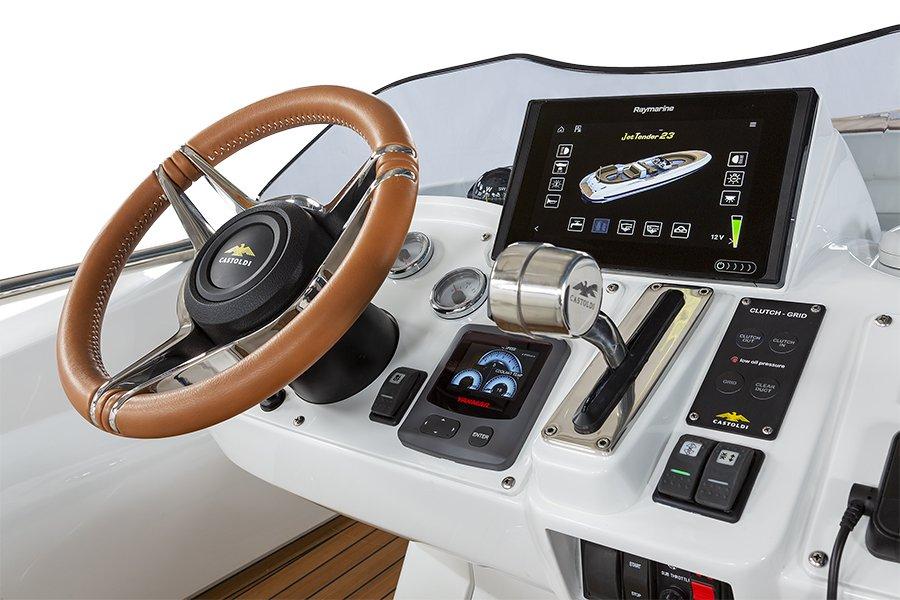

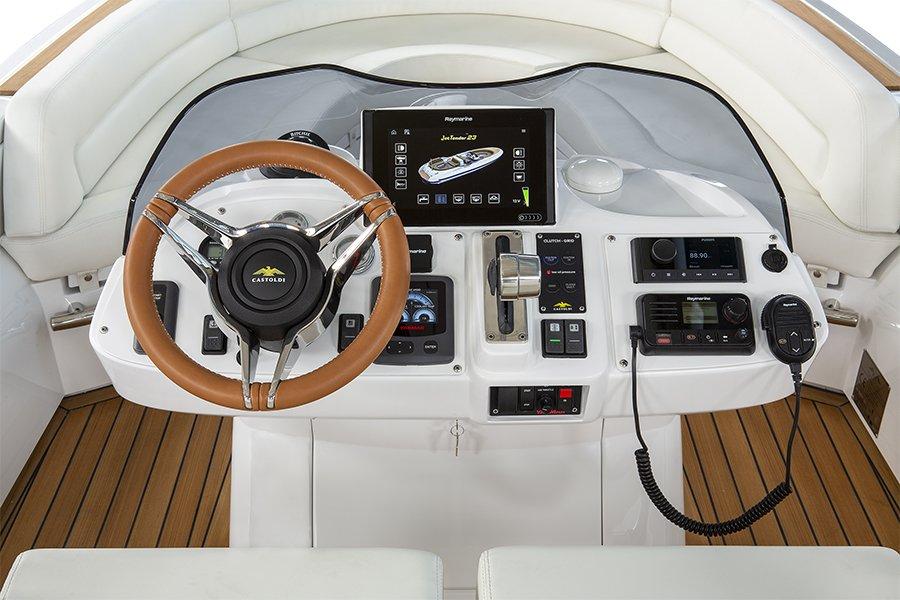

13 GPS/Multifunction display with digital switching to manage the onboard services through an intuitive graphic
14 Stereo and VHF
15 Castoldi stainless steel single lever box for the mechanical control of the engine rpm with integrated switch for electric/hydraulic reversing bucket control
16 Inspectable and extractable cross-linked polyethylene 200 l fuel tank
17 Recessed bow shelter
Construction
Hull
Single skin structure, hand laid Kevlar and vinylester resin
Deck, console
Sandwich structure, hand laid glass and isoftalic polyester resin with nidaplast core
Stringer System
Sandwich structure, hand laid Kevlar and vinylester resin with polyurethane closed cell foam core
Inflatable tube
Hypalon/Neoprene coated polyester fabric 1670 Dtex No. 6 separate airtight compartments
