Description

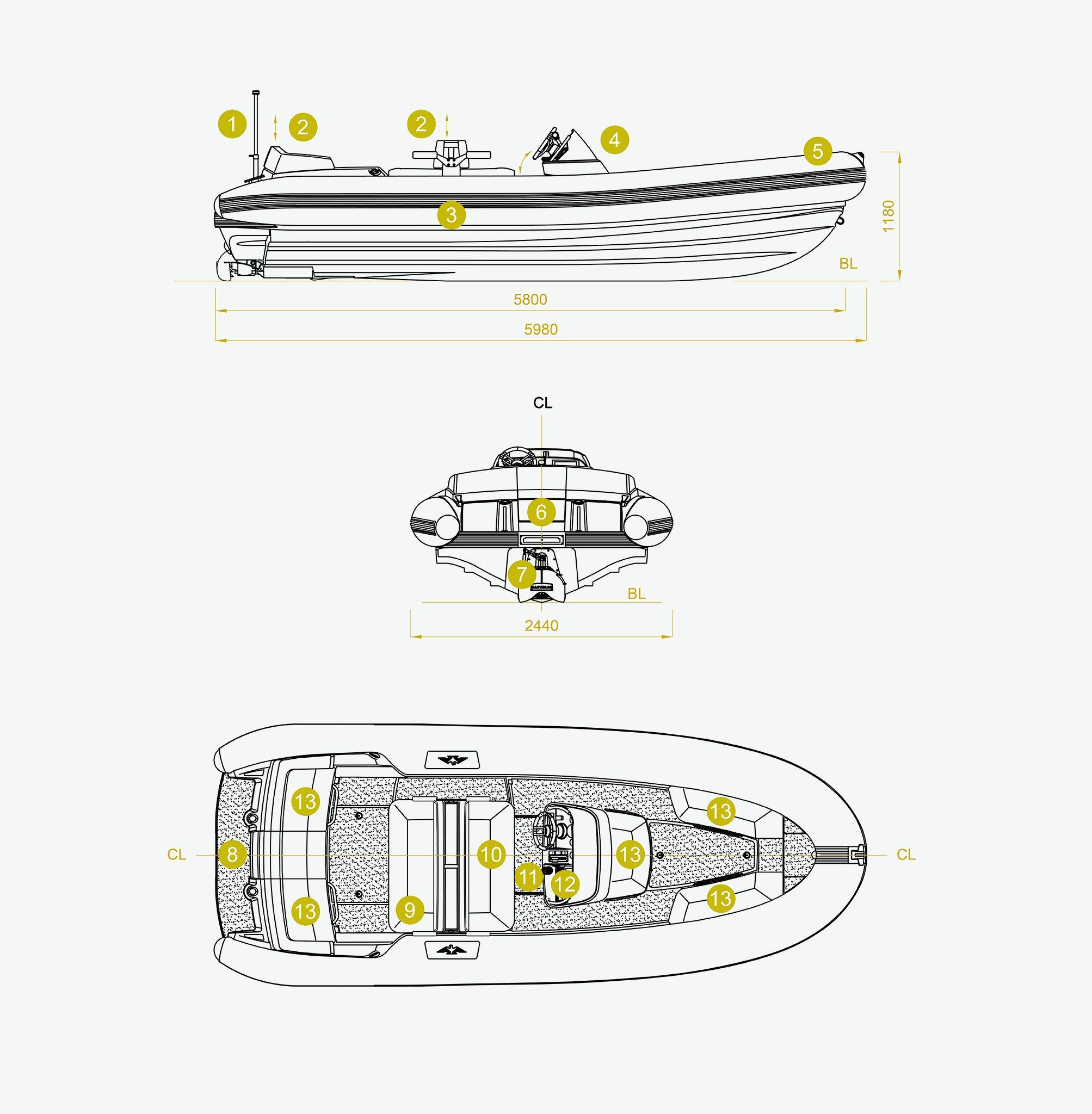

Dimensional Drawing and Remarkable Equipment

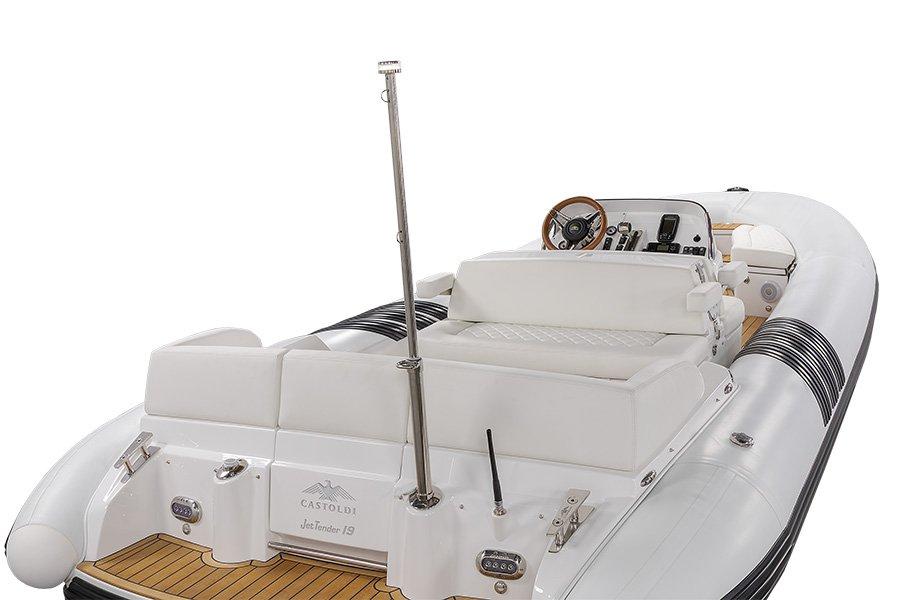

1 Removable ski pole with bayonet jointed 360° white light

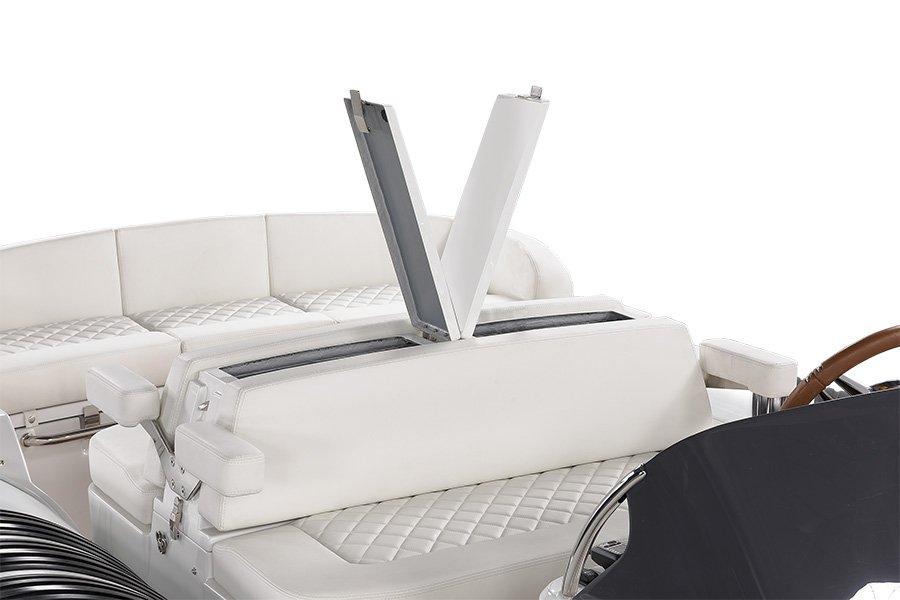

2 Removable backrests
3 Quick in-out tube system connection

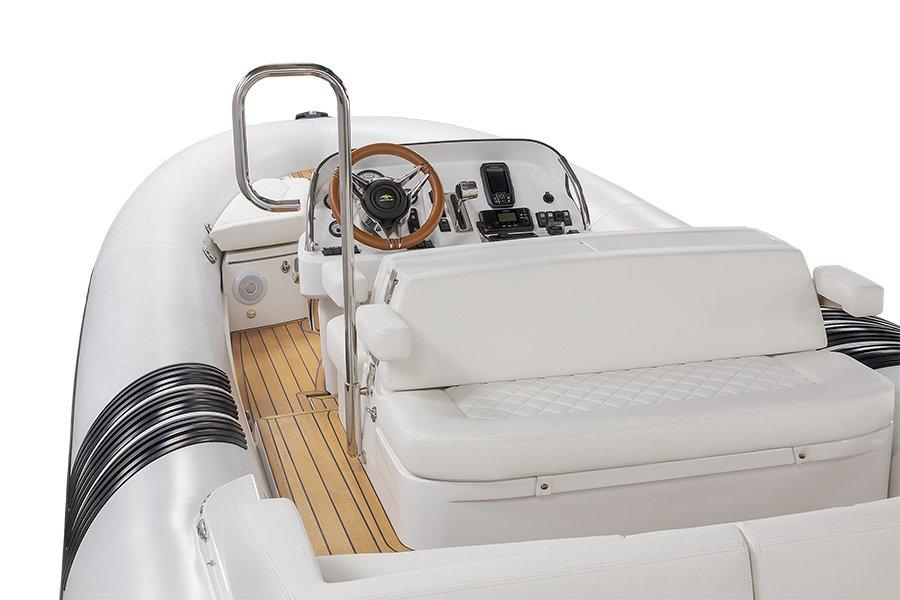

4 Electrically actuated folding console
5 Integrated inflator system with dashboard activation switch (optional)
6 Removable section for easy access to swim platform
7 Professional Castoldi waterjet drive with stainless steel and titanium parts

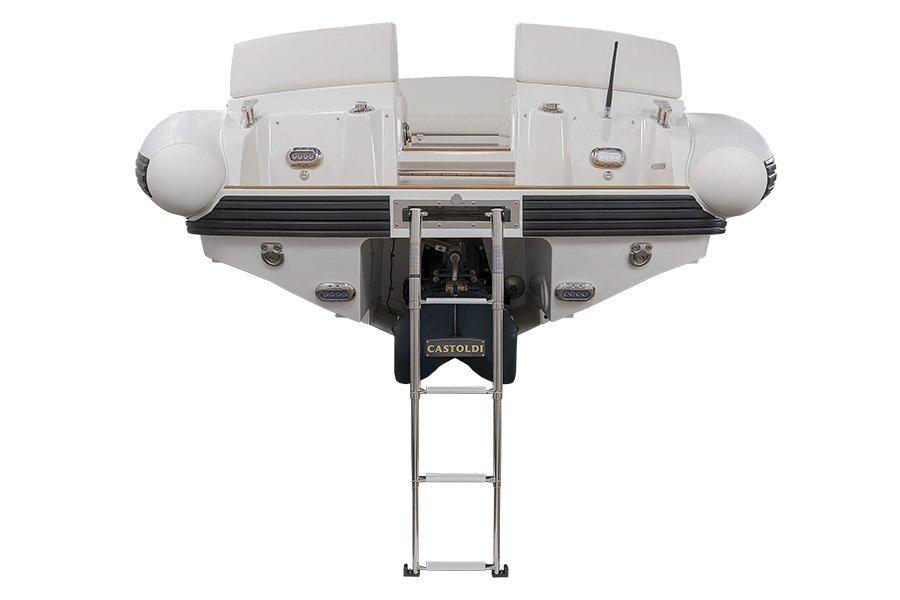

8 Recessed 4 steps swim ladder
9 Engine cover with full width opening
10 Recessed single point lifting eye (optional)
11 Inspectable and extractable cross-linked polyethylene 112 l fuel tank

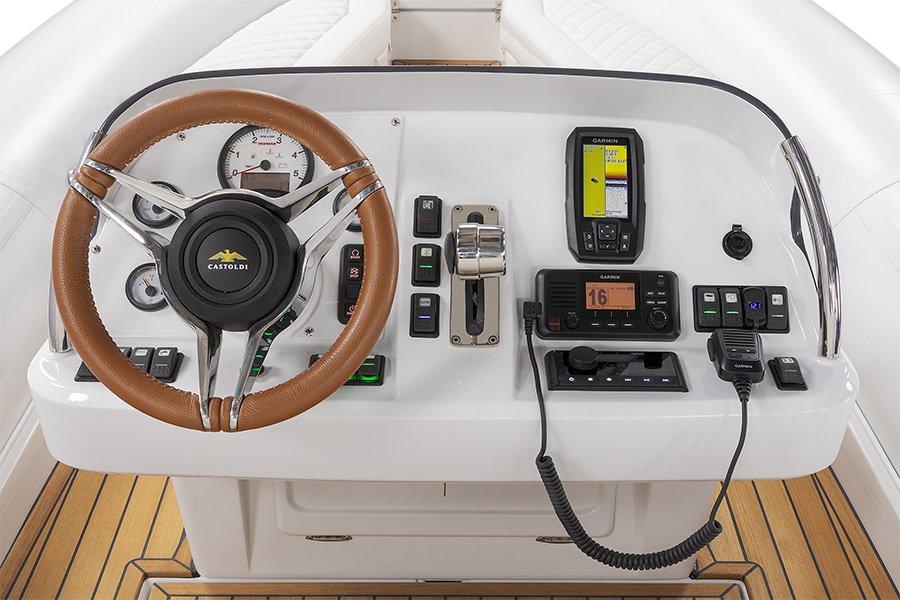

12 Castoldi stainless steel single lever box for the mechanical control of the engine rpm with integrated switch for electric/hydraulic reversing bucket control
13 Utility peaks
Construction
Hull
Single skin structure, hand laid Kevlar and vinylester resin
Deck, console
Sandwich structure, hand laid glass and isoftalic polyester resin with nidaplast core
Stringer System
Sandwich structure, hand laid Kevlar and vinylester resin with polyurethane closed cell foam core

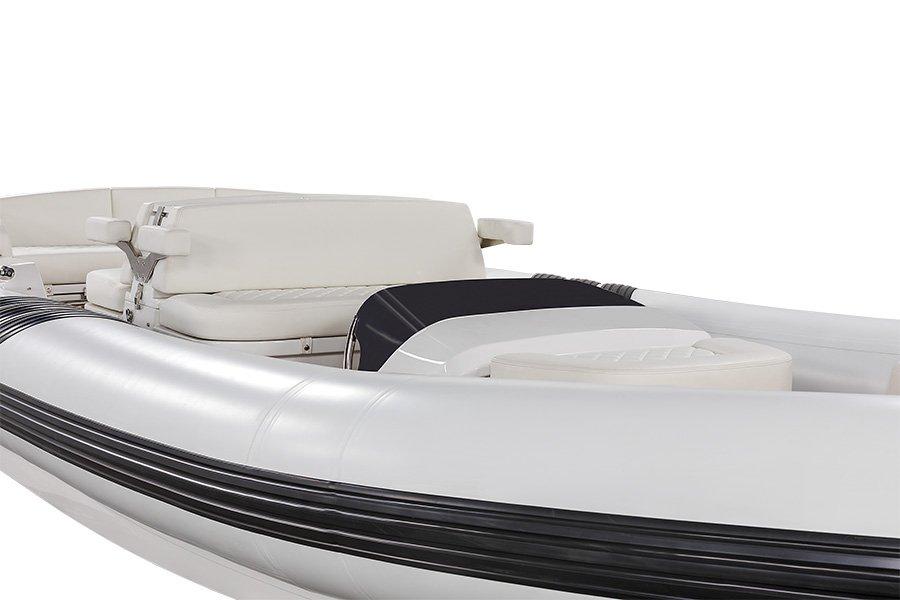

Inflatable tube
Hypalon/Neoprene coated polyester fabric 1670 Dtex No. 5 separate airtight compartments
MY 2024 model with deep V hull and new console layout
