Description

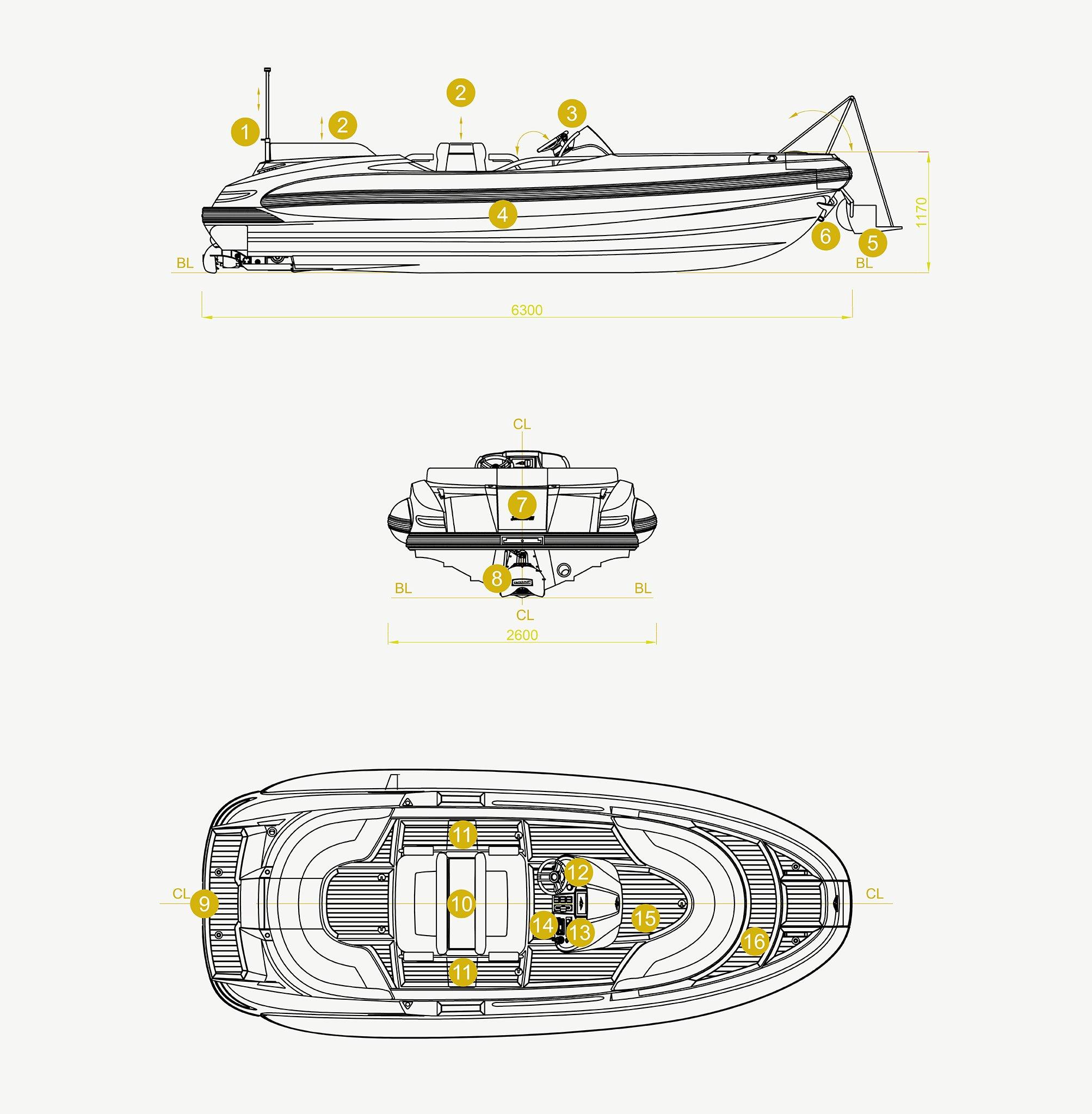

Dimensional Drawing and Remarkable Equipment

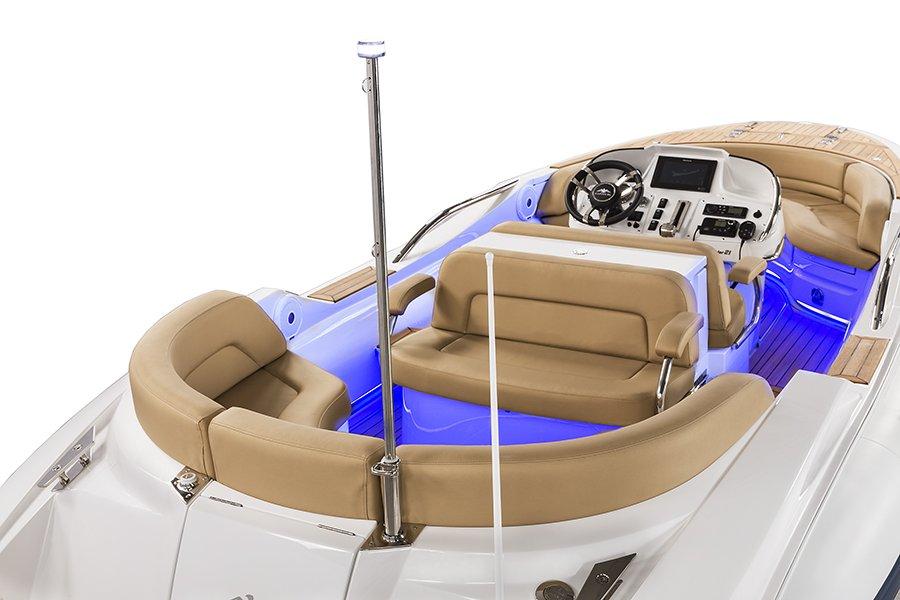

1 Removable ski pole with bayonet jointed 360° white light
2 Removable backrests
3 Electrically actuated folding console (optional)

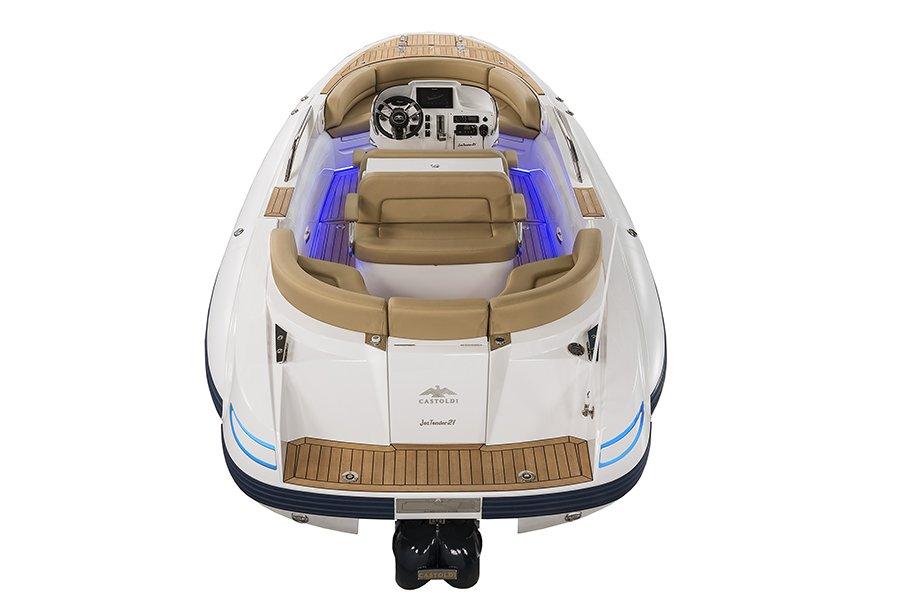

4 Quick in-out tube system connection

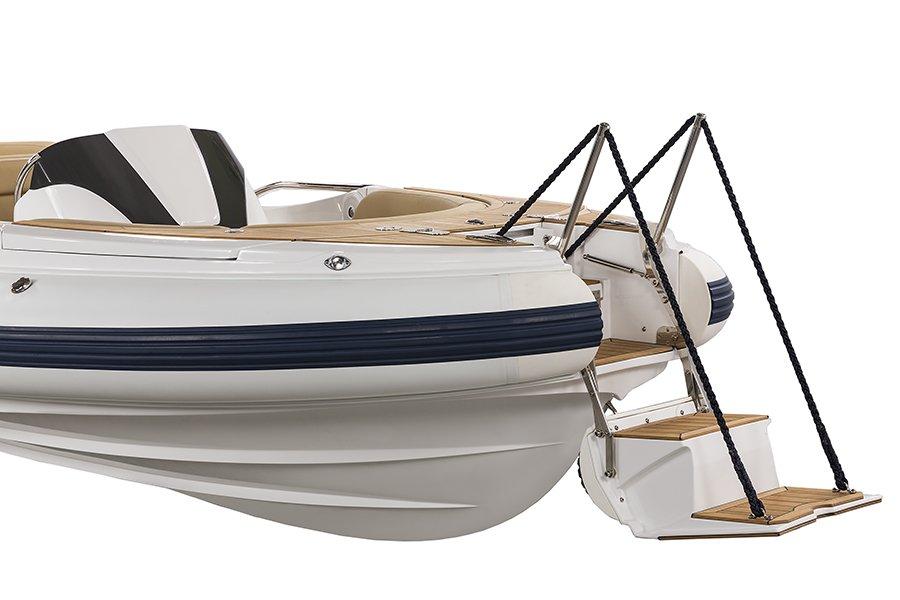

5 Beach landing stepped ramp
6 Anchor with electric windlass (optional)
7 Hinged door for easy access to swim platform

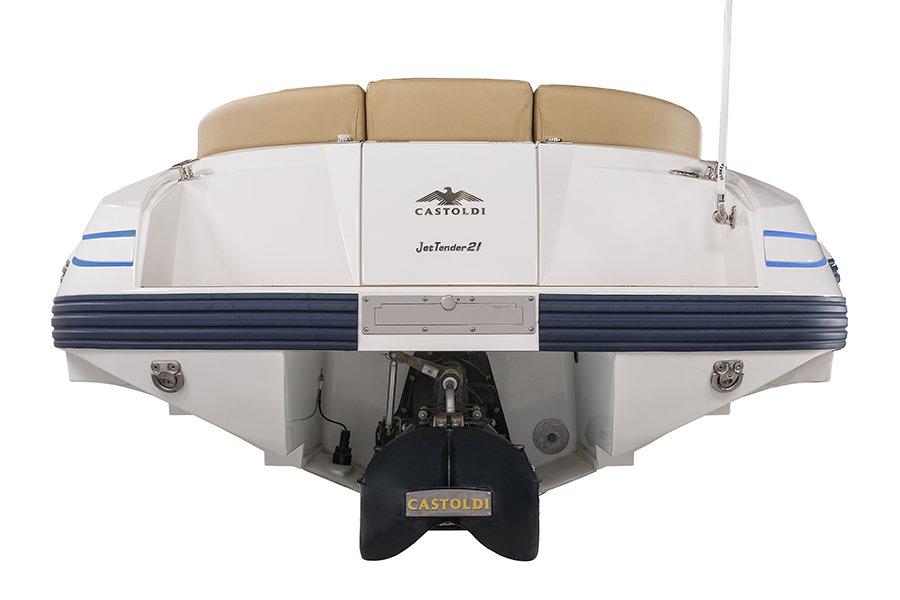

8 Professional Castoldi waterjet drive with stainless steel and titanium parts

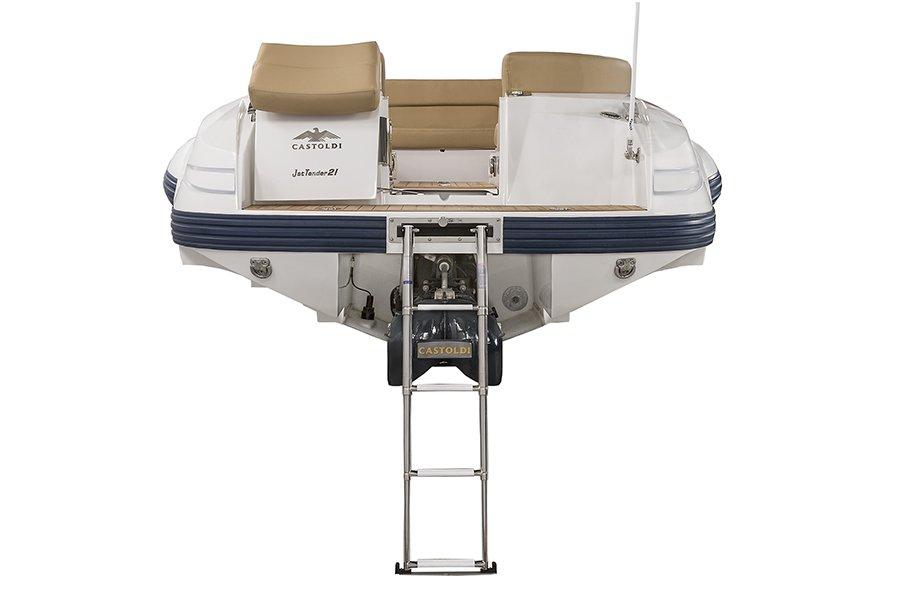

9 Recessed 4 steps swim ladder
10 Recessed single point lifting eye (optional)
11 Flip-down boarding steps (port and stbd) with stainless steel boarding handle

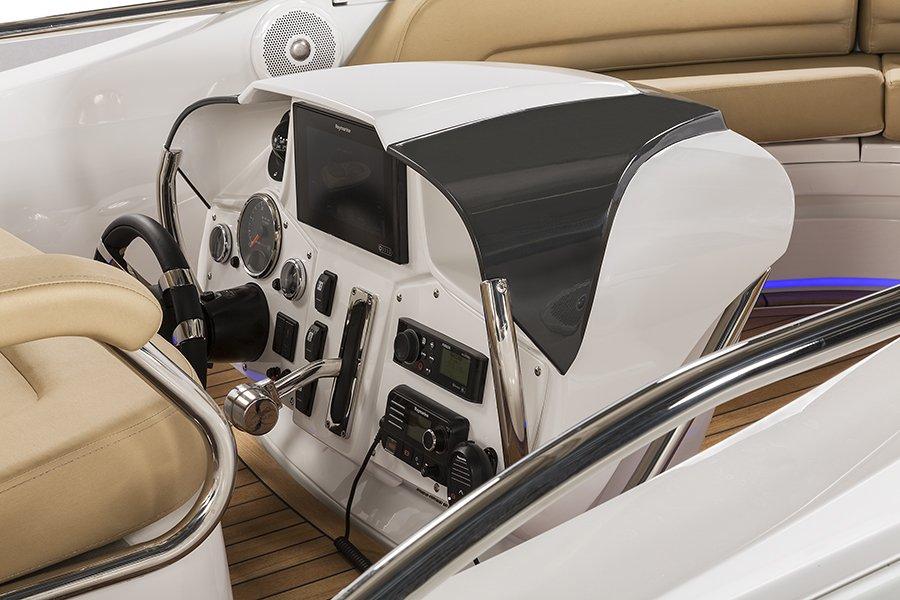

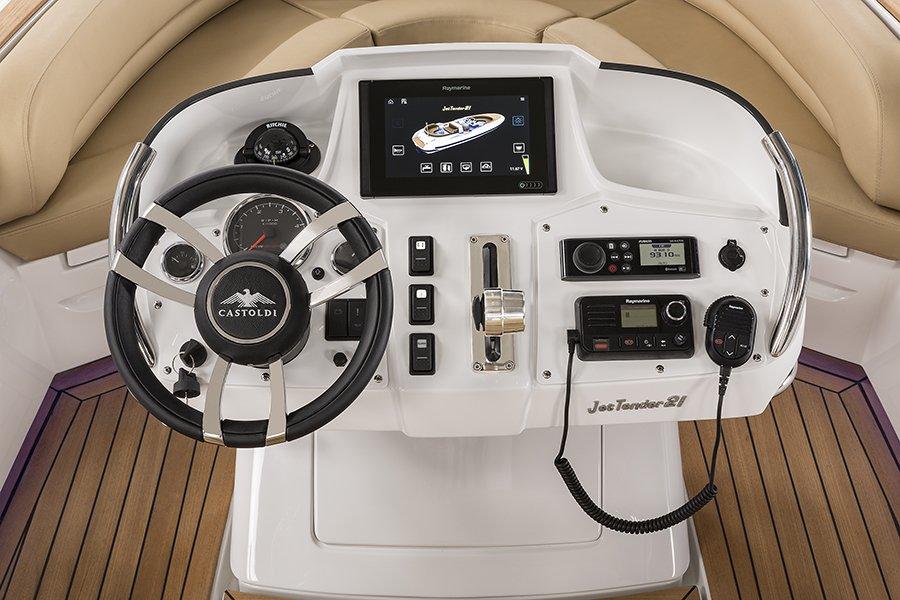

12 GPS/Multifunction display with digital switching to manage the onboard services through an intuitive graphic (optional)
13 Stereo and VHF (optional)
14 Castoldi stainless steel single lever box for the mechanical control of the engine rpm with integrated switch for electric/hydraulic reversing bucket control
15 Inspectable and extractable cross-linked polyethylene 155 l fuel tank
16 Recessed bow shelter (optional)
Construction
Hull
Single skin structure, hand laid Kevlar and vinylester resin
Deck, console
Sandwich structure, hand laid glass and isoftalic polyester resin with nidaplast core
Stringer System
Sandwich structure, hand laid Kevlar and vinylester resin with polyurethane closed cell foam core
Inflatable tube
Hypalon/Neoprene coated polyester fabric 1670 Dtex No. 6 separate airtight compartments
