Description

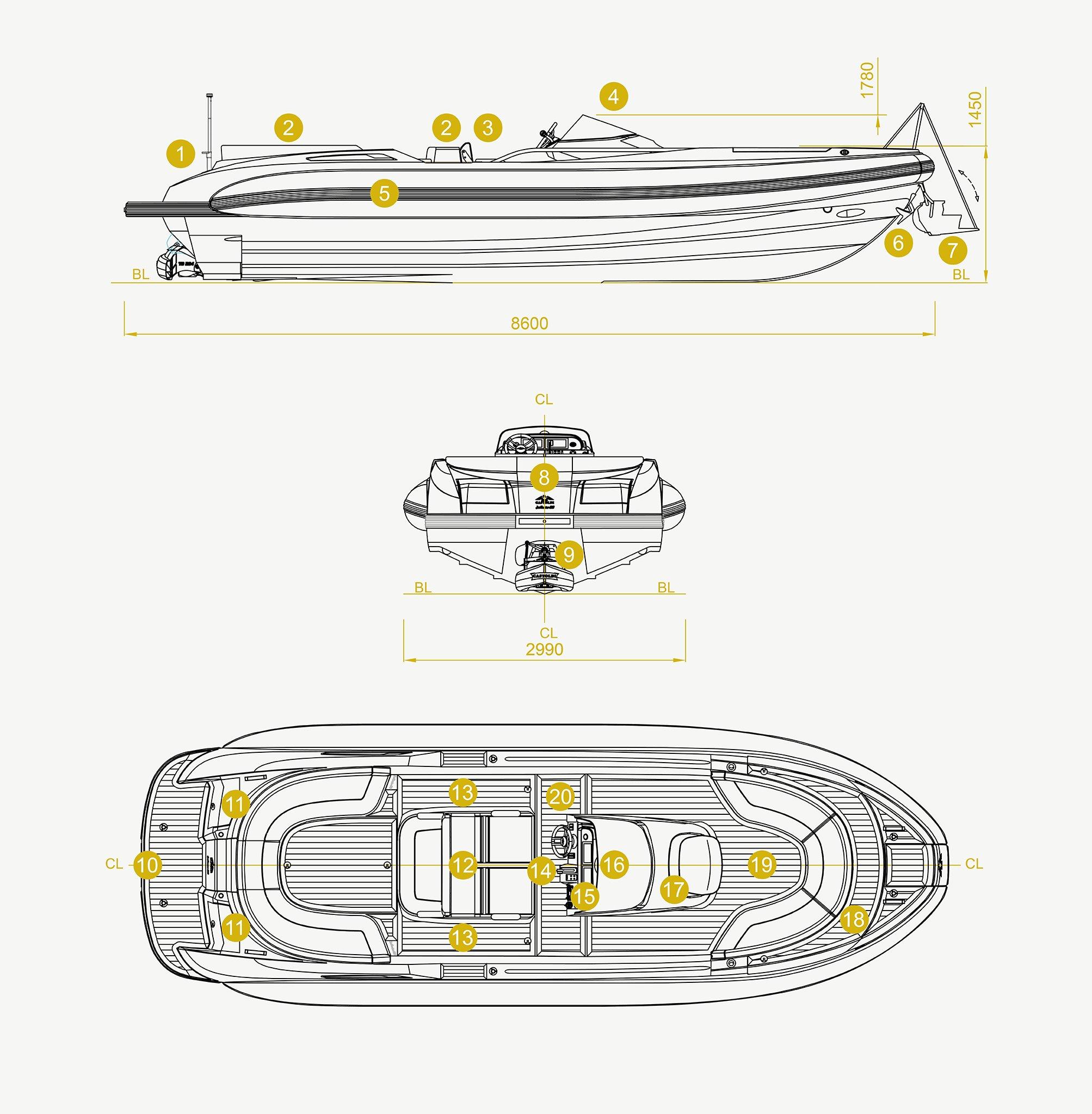

1 Removable ski pole with bayonet jointed 360° white light

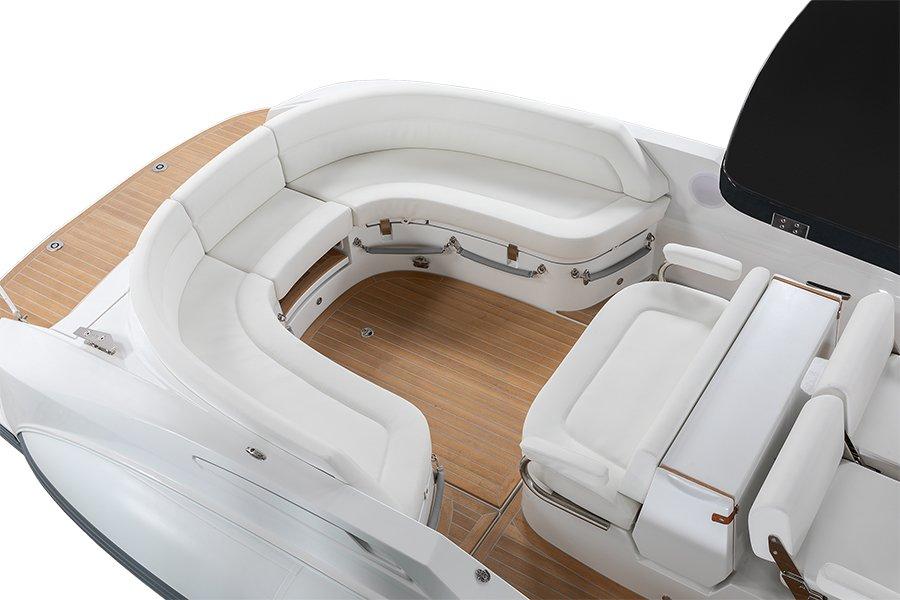

2 Removable backrests
3 Folding backrests
4 Electrically actuated folding console (optional)
5 Quick in-out tube system connection

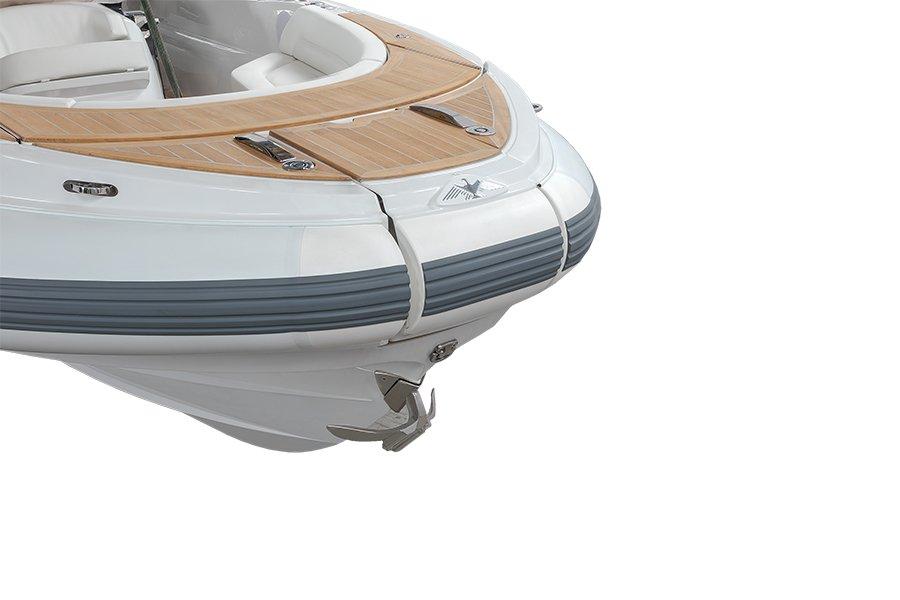

6 Anchor with electric windlass

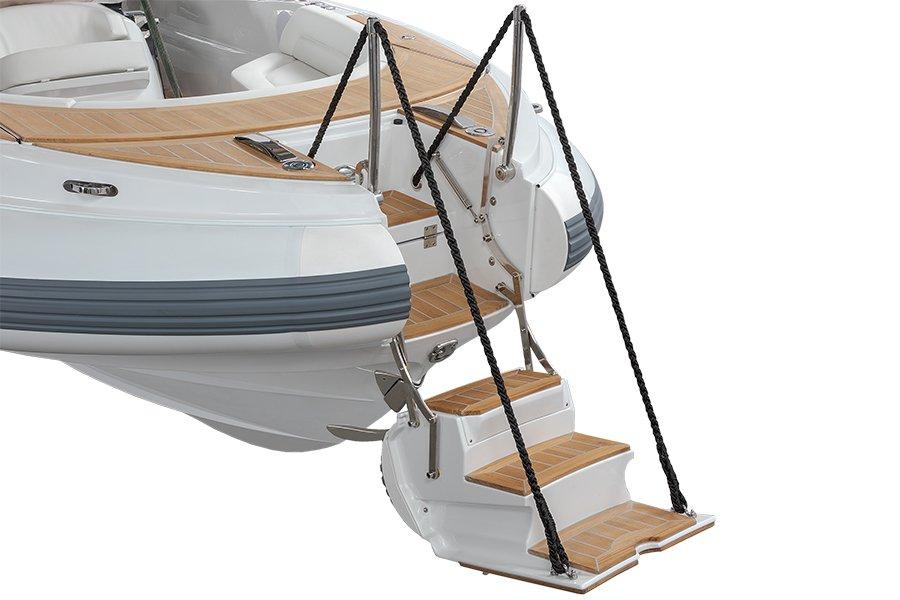

7 Beach landing stepped ramp
8 Hinged door for easy access to swim platform

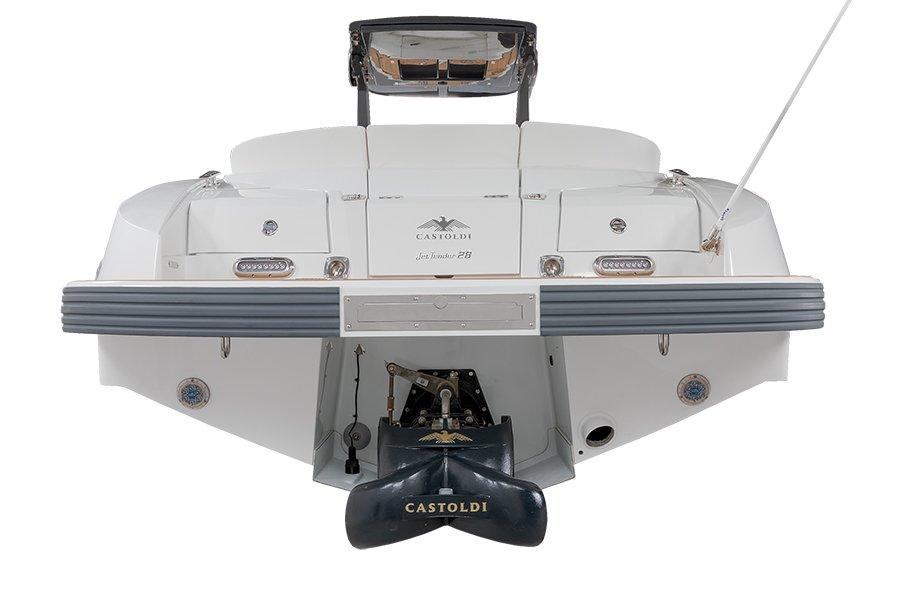

9 Professional Castoldi waterjet drive with stainless steel and titanium parts

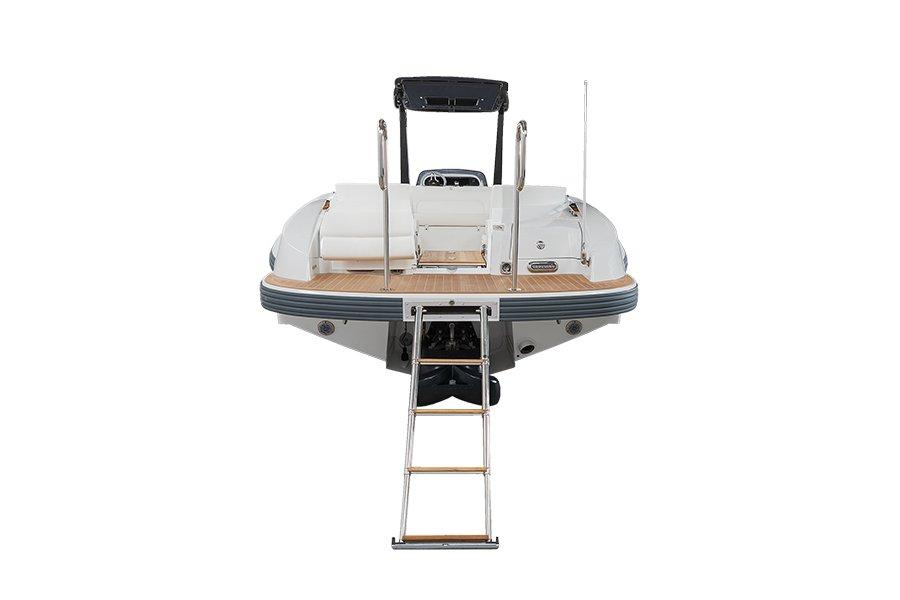

10 Recessed 4 steps swim ladder
11 Courtesy storage lockers
12 Recessed single point lifting eye (optional)
13 Flip-down boarding steps (port and stbd) with stainless steel boarding handle

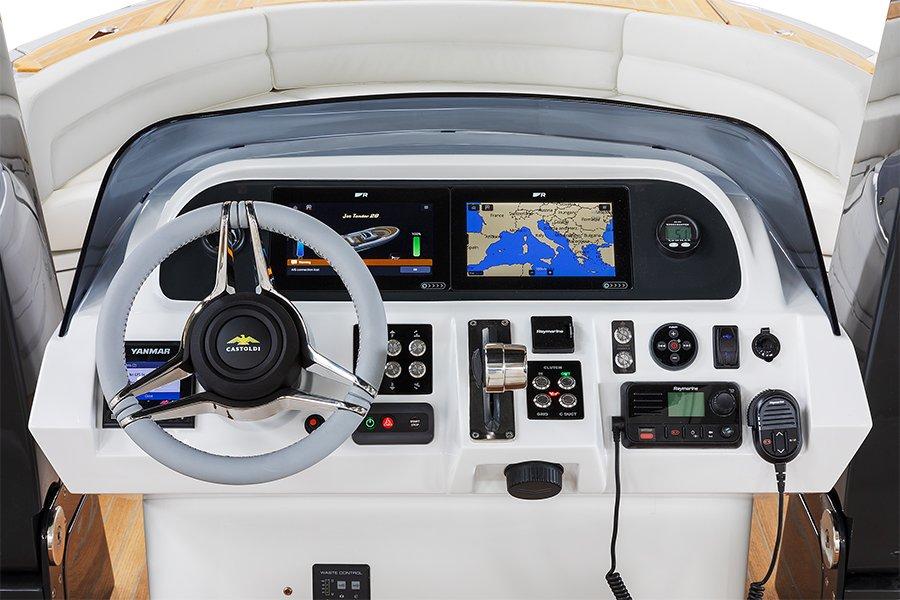

14 Castoldi stainless steel single lever box for the mechanical control of the engine rpm with integrated switch for electric/hydraulic reversing bucket control
15 Stereo and VHF
16 No. 2 GPS/Multifunction display with digital switching to manage the onboard services through an intuitive graphic
17 Marine toilet with washbasin, fresh water shower and teak grate (optional)
18 Recessed bow shelter

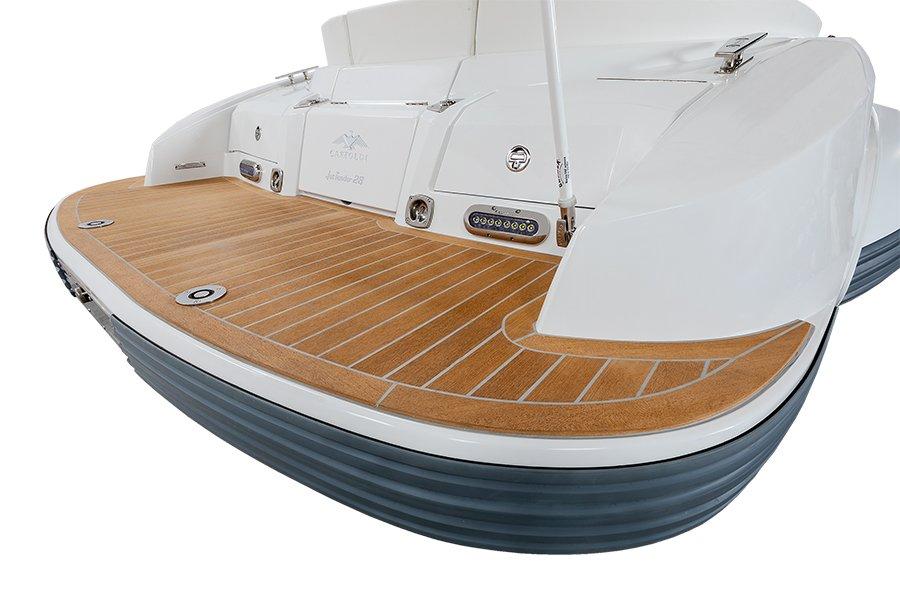

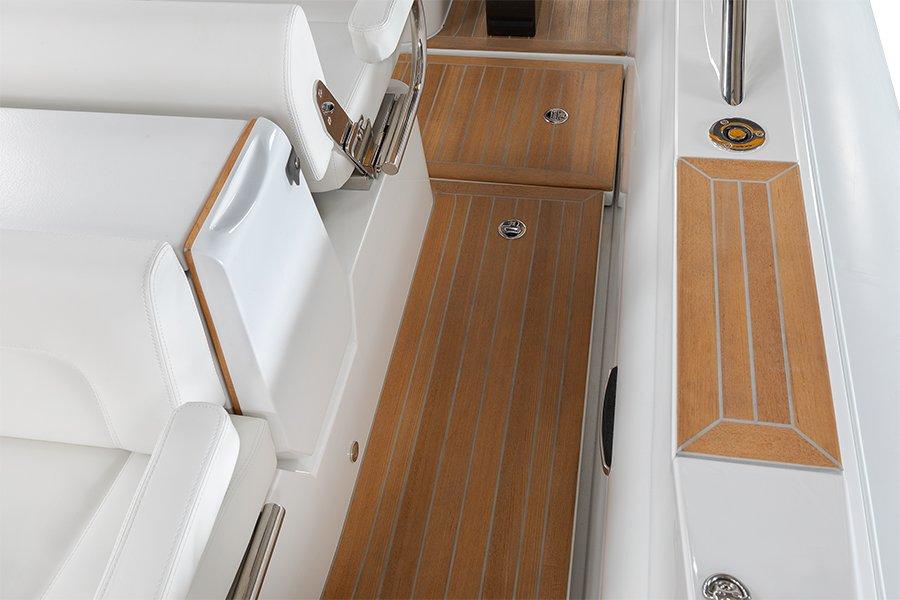

19 Marine Cork decking, solid or synthetic teak (optional)
20 Inspectable and extractable cross-linked polyethylene 220 l fuel tank
Construction
Hull
Single skin structure, hand laid Kevlar and vinylester resin
Deck, console
Sandwich structure, hand laid glass and isoftalic polyester resin with nidaplast core
Stringer System
Sandwich structure, hand laid Kevlar and vinylester resin with polyurethane closed cell foam core
Inflatable tube
Hypalon/Neoprene coated polyester fabric 1670 Dtex No. 6 separate airtight compartments
